Vehicle Speed Sensor: Installation
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2004 GMC Yukon XL, 2004 GMC Yukon, 2004 GMC Sierra, 2004 Chevrolet Tahoe, and 2004 Chevrolet Suburban. However, it is still accessible from the selected car via links, so may be relevant.
- Install the "O" ring seal onto the VSS. See Figure .
- Coat the "O" ring seal with a thin film of transmission fluid.
- Install the VSS.
- Install the VSS bolt. Tighten bolt to specification. See TORQUE SPECIFICATIONS .

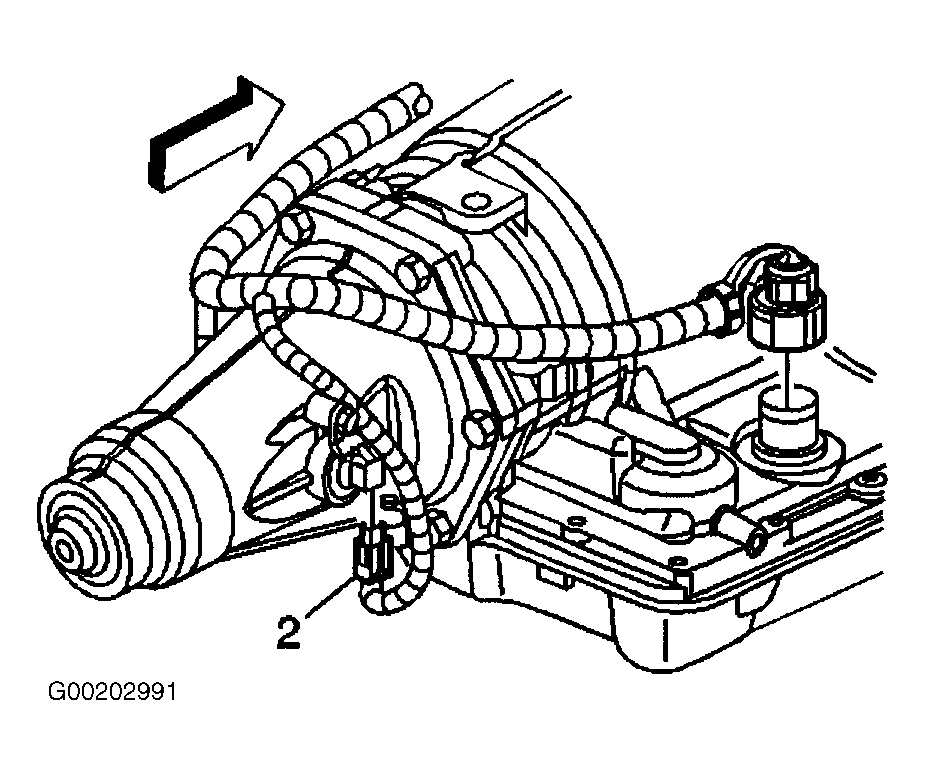

- Connect the VSS electrical connector (2). See Figure .
- Lower the vehicle.
- Refill the fluid as required. See LUBRICATION .
