Removal & Installation

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 GMC Sierra, 2003 Chevrolet Tahoe, and 2003 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Remove the wheel/tire assembly. Remove the wheel hub and bearing. See REAR WHEEL HUB ASSEMBLY . Remove the upper and lower ball joints. See appropriate article in SUSPENSIONS.
Remove the outer tie rod retaining nut and bracket. Disconnect the outer tie rod from the steering knuckle using Steering Linkage Puller (J-24319-B). Fig 1 . Remove the park brake cable retaining bolt from the steering knuckle. Remove the steering knuckle from the vehicle.
To install, reverse removal procedure. Tighten all fasteners to specification. See TORQUE SPECIFICATIONS . Lower vehicle.

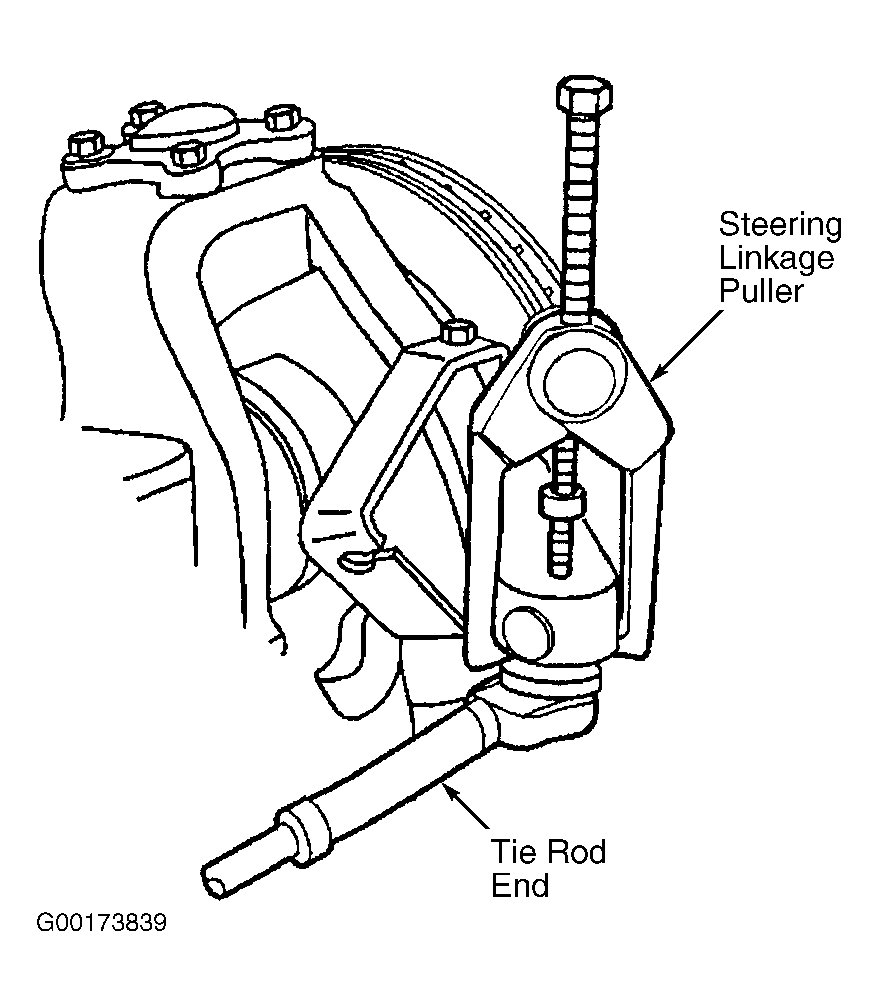

Fig 1: Separating Tie Rod End

Courtesy of GENERAL MOTORS CORP.
