Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof window. Refer to Sunroof Glass Panel Replacement .
  2. Remove the screws (1) from the rear water trough.
  3. Rotate the trough toward the rear to remove it from the hold down.
  4. Remove the water trough.

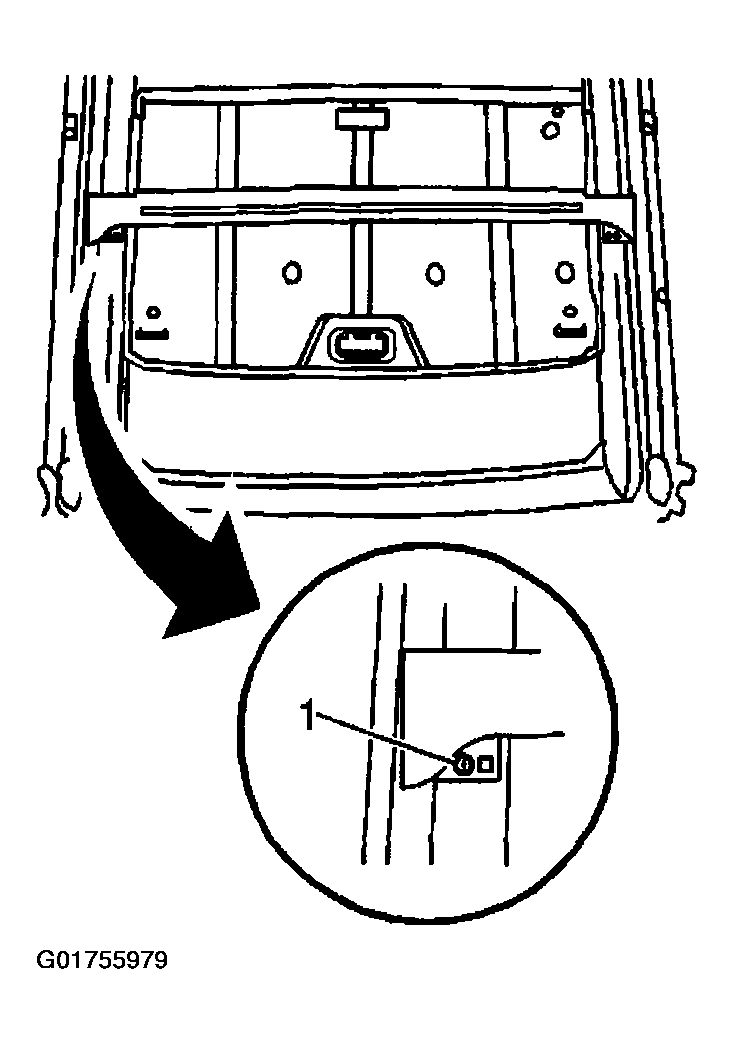

    Fig 1: Identifying Rear Water Trough Screws
    G01755979Courtesy of GENERAL MOTORS CORP.
  5. Remove the sunshade by bowing the sunshade in the center and pushing the sunshade to one side to allow the opposite side to be lifted out of the sunshade channel.

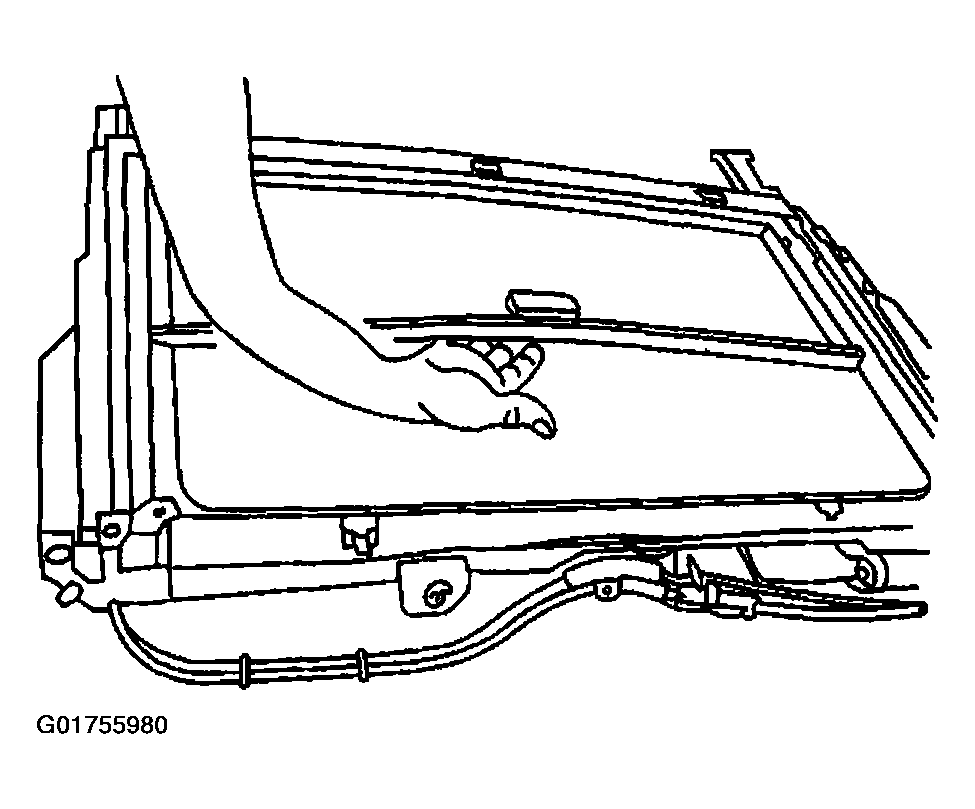

    Fig 2: Bowing Sunshade For Removal
    G01755980Courtesy of GENERAL MOTORS CORP.
  6. Remove the sunshade from the sunroof module.

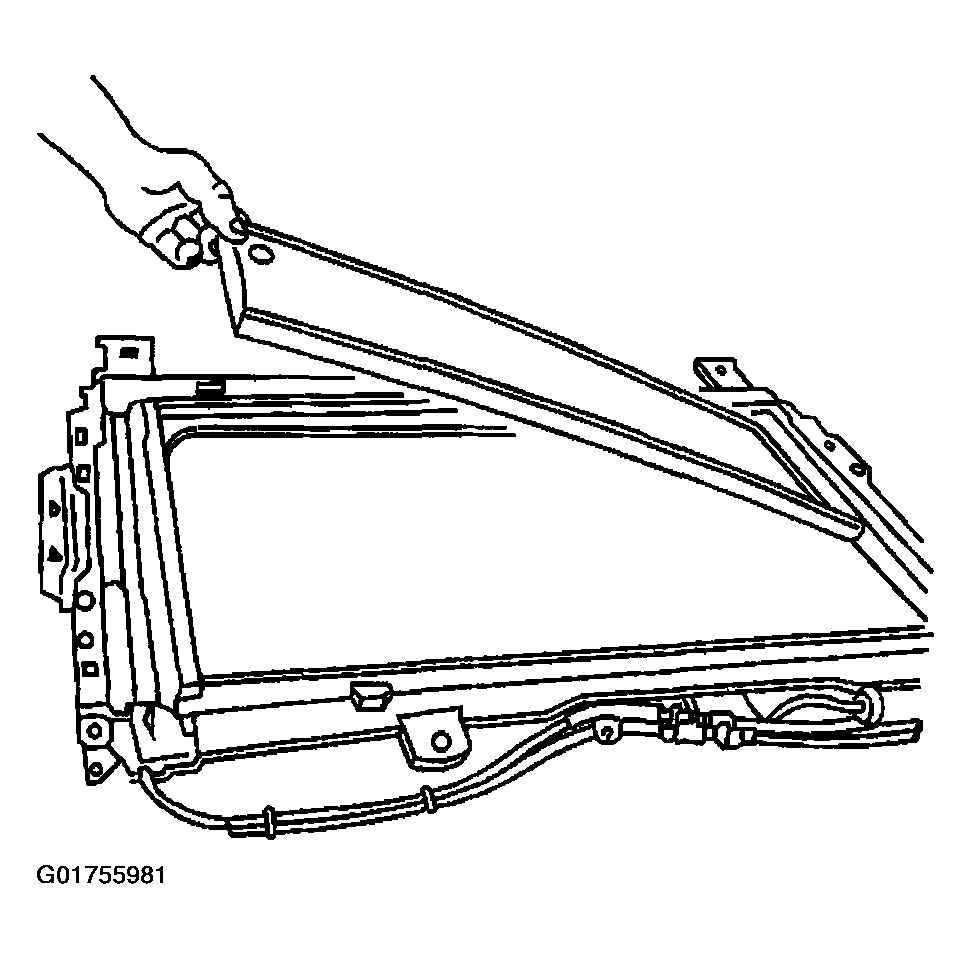

    Fig 3: Removing Sunshade From Vehicle
    G01755981Courtesy of GENERAL MOTORS CORP.
