Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sunroof glass panel. Refer to Sunroof Glass Panel Replacement .
  2. Remove the sunroof glass seal from the sunroof glass panel frame by peeling the sunroof glass seal away at one point and continuing around the perimeter of the sunroof glass panel frame.
  3. Wipe the perimeter of the sunroof glass panel frame area with a clean, dampened cloth using GM Window Cleaner GM P/N 1050427 or isopropyl alcohol to clean the surface of the perimeter of the sunroof glass panel.

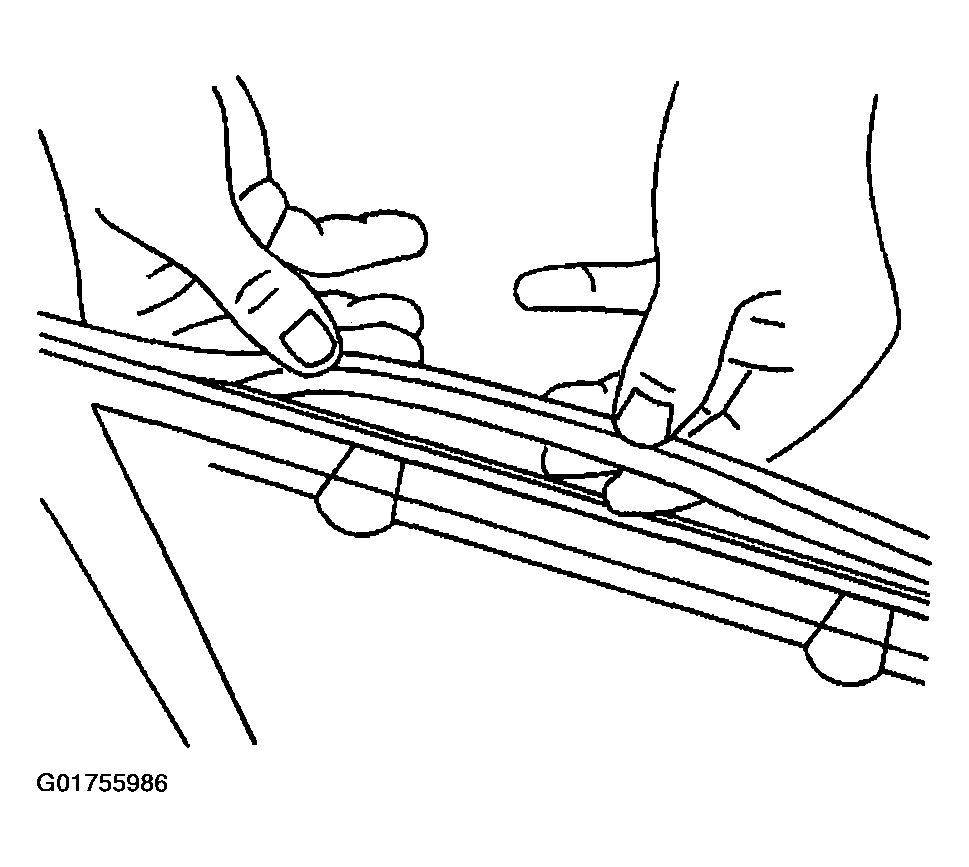

    Fig 1: Identifying Sunroof Glass Panel Seal
    G01755986Courtesy of GENERAL MOTORS CORP.
