Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof glass panel seal onto the sunroof glass panel frame.

    Important:  Ensure that the sunroof glass seal is properly seated around the entire perimeter of the sunroof glass panel frame.

  2. Firmly press the sunroof glass seal into place. A small rubber hammer will help in the installation.

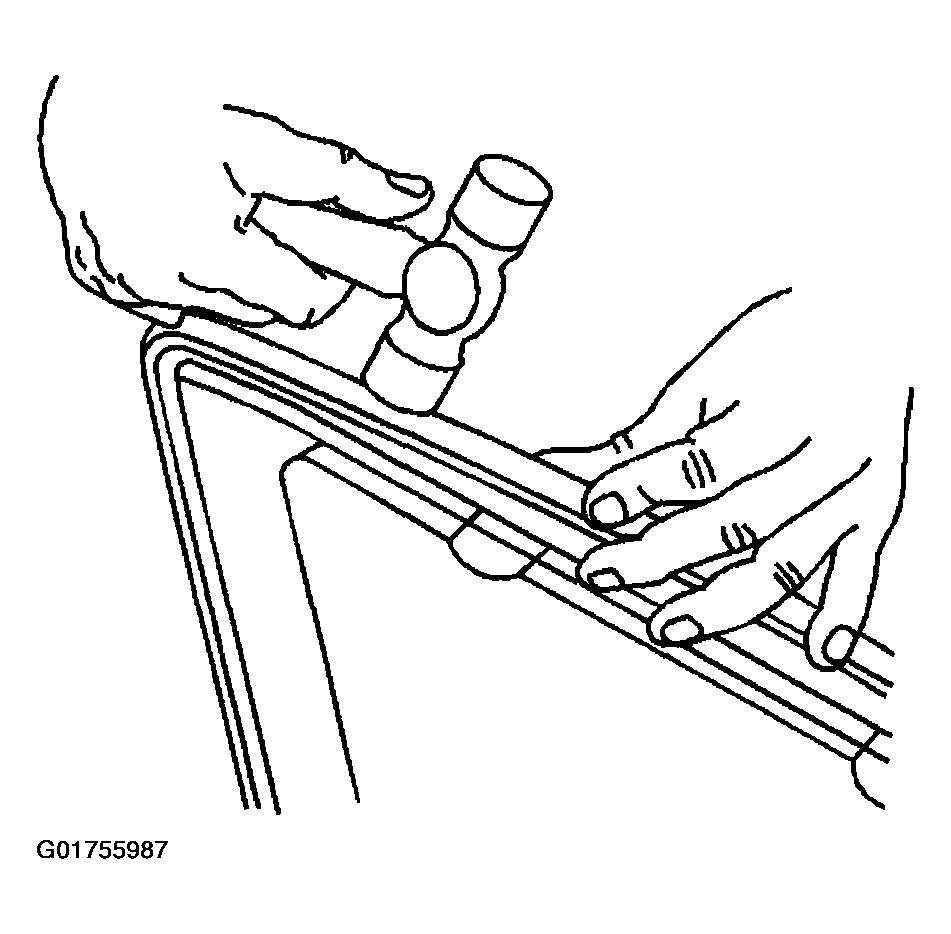

    3. Fig 1: Use A Small Rubber Hammer To Help With Installing Sunroof Glass Panel Seal
    G01755987Courtesy of GENERAL MOTORS CORP.
  3. Install the sunroof glass panel. Refer to Sunroof Glass Panel Replacement .
