Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunshade fully open.
  2. Place the sunroof window in the vent position.
  3. Remove the 4 sunroof screws (2 on each side).

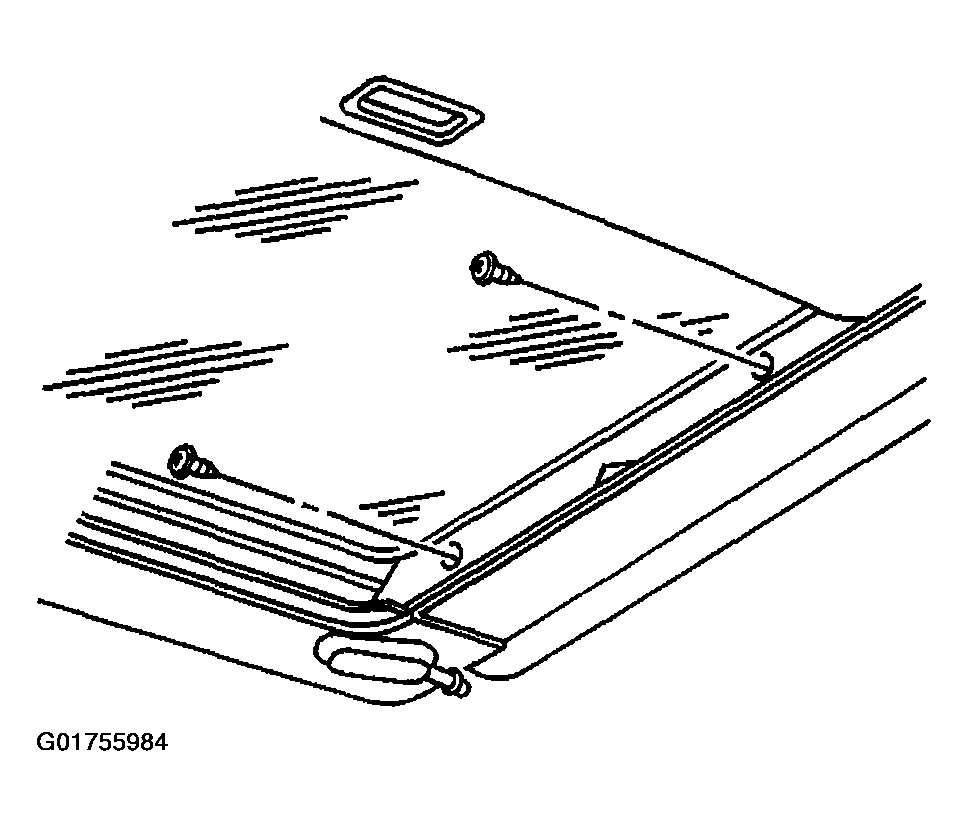

  4. Fig 1: Identifying Sunroof Screws
    G01755984Courtesy of GENERAL MOTORS CORP.
  5. Remove the sunroof window from the module.
