Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the sunroof window in the module. Ensure that the information logo stencil is toward the rear of the opening.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the sunroof window screws. Tighten the screws to 4 N.m (35 in lbs).

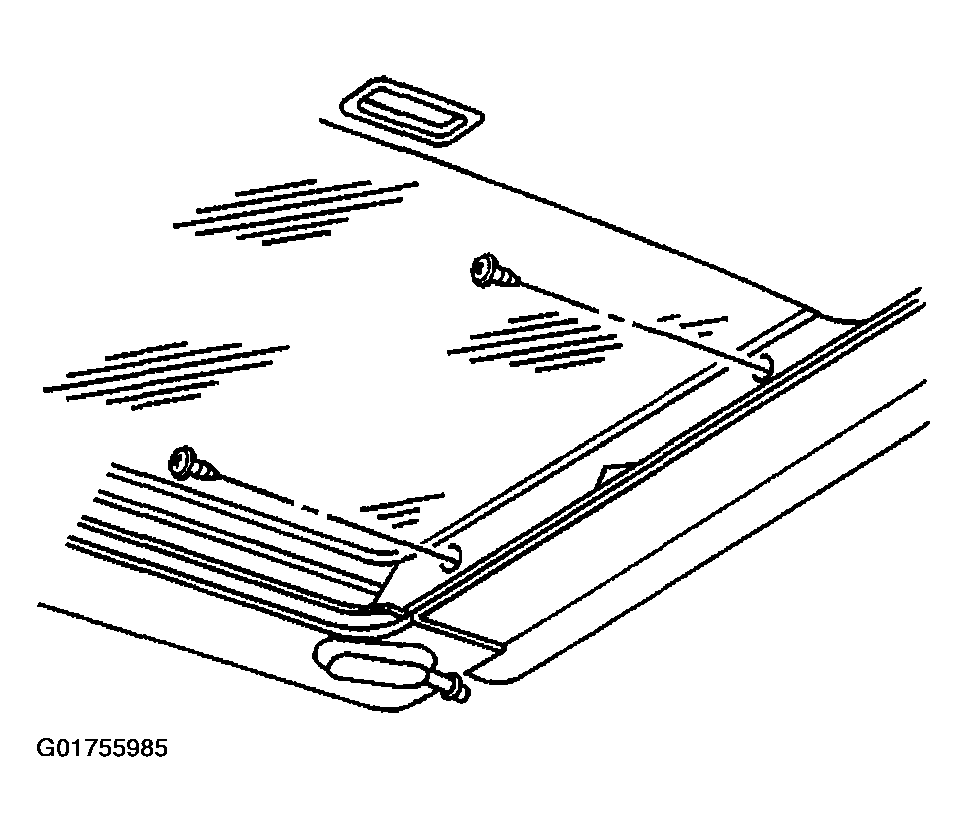

    3. Fig 1: Identifying Sunroof Screws
    G01755985Courtesy of GENERAL MOTORS CORP.
  3. Adjust the sunroof window. Refer to Sunroof Glass Height and Opening Fit Adjustment .
  4. Open and close the sunroof window in order to test the fit of the window.
