Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parking brake pedal, if replacing the left front hose. Refer to PARK BRAKE PEDAL ASSEMBLY .
  2. Remove the acoustical patch from along the base of the front hinge pillar.
  3. Remove the headliner. Refer to HEADLINER REPLACEMENT .
  4. Remove the front sunroof drain hose from the spigot at the sunroof module.

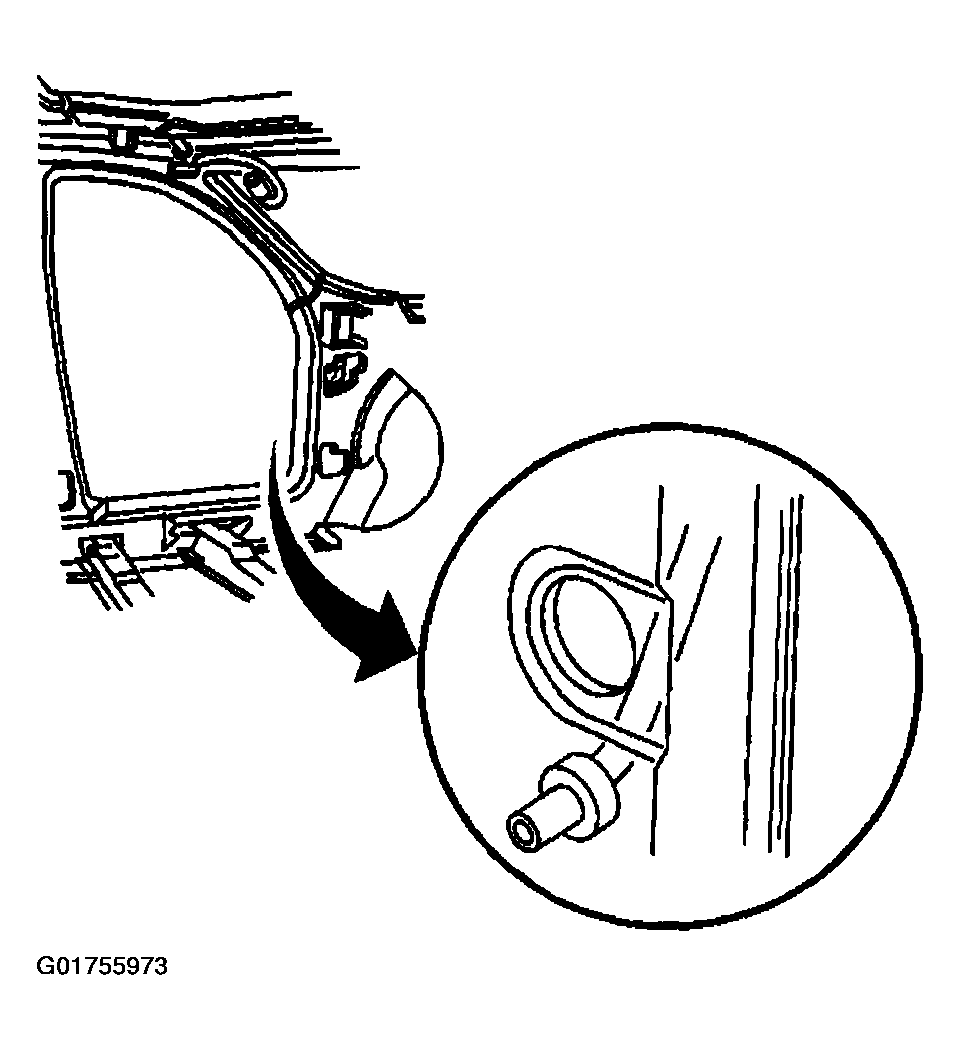

    5. Fig 1: Identifying Front Sunroof Drain Hose
    G01755973Courtesy of GENERAL MOTORS CORP.
  5. Remove the front sunroof drain hose from the drain tube between the front door hinges.
  6. Remove the front sunroof drain hose from the vehicle.
