Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the front sunroof drain hose in the vehicle.

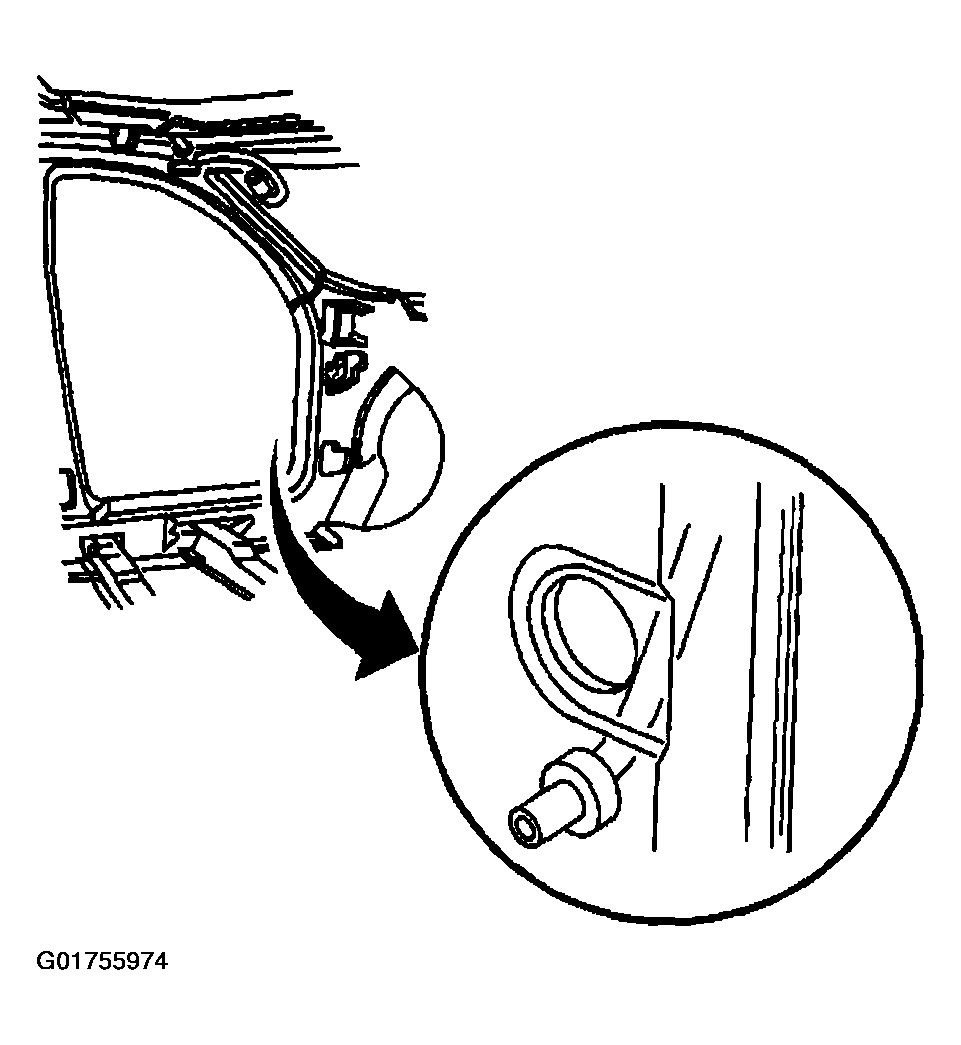

Fig 1: Identifying Front Sunroof Drain Hose

Courtesy of GENERAL MOTORS CORP.

Starting at the sunroof module, route the drain hose down the front pillar.
Press the front sunroof drain hose onto the sunroof module drain spigot and the drain tube in the front pillar.
Install the headliner. Refer to HEADLINER REPLACEMENT .
Install the acoustical patch.
Install the parking brake pedal, if replacing the left front hose. Refer to PARK BRAKE PEDAL ASSEMBLY .
