Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the inner energy absorber. Refer to Energy Absorber Pad Replacement - Rear Door .
  4. Remove the inner sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  6. Remove the rear door frame molding. Refer to Garnish Molding Replacement - Rear Door Frame .
  7. Remove the window mounting bolts (1, 2).
  8. Remove the window.

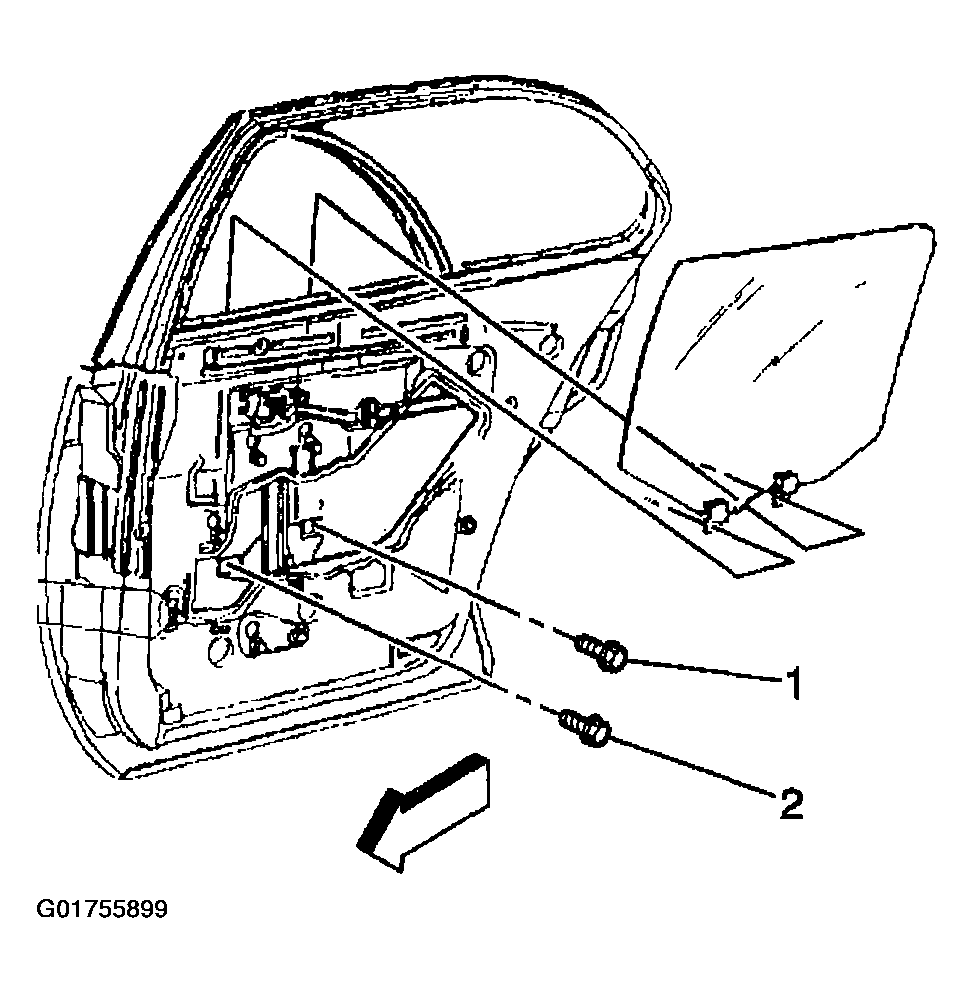

    Fig 1: Identifying Window Mounting Bolts
    G01755899Courtesy of GENERAL MOTORS CORP.
