Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  3. Remove the front door inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  4. Remove the window to regulator bolts (2).

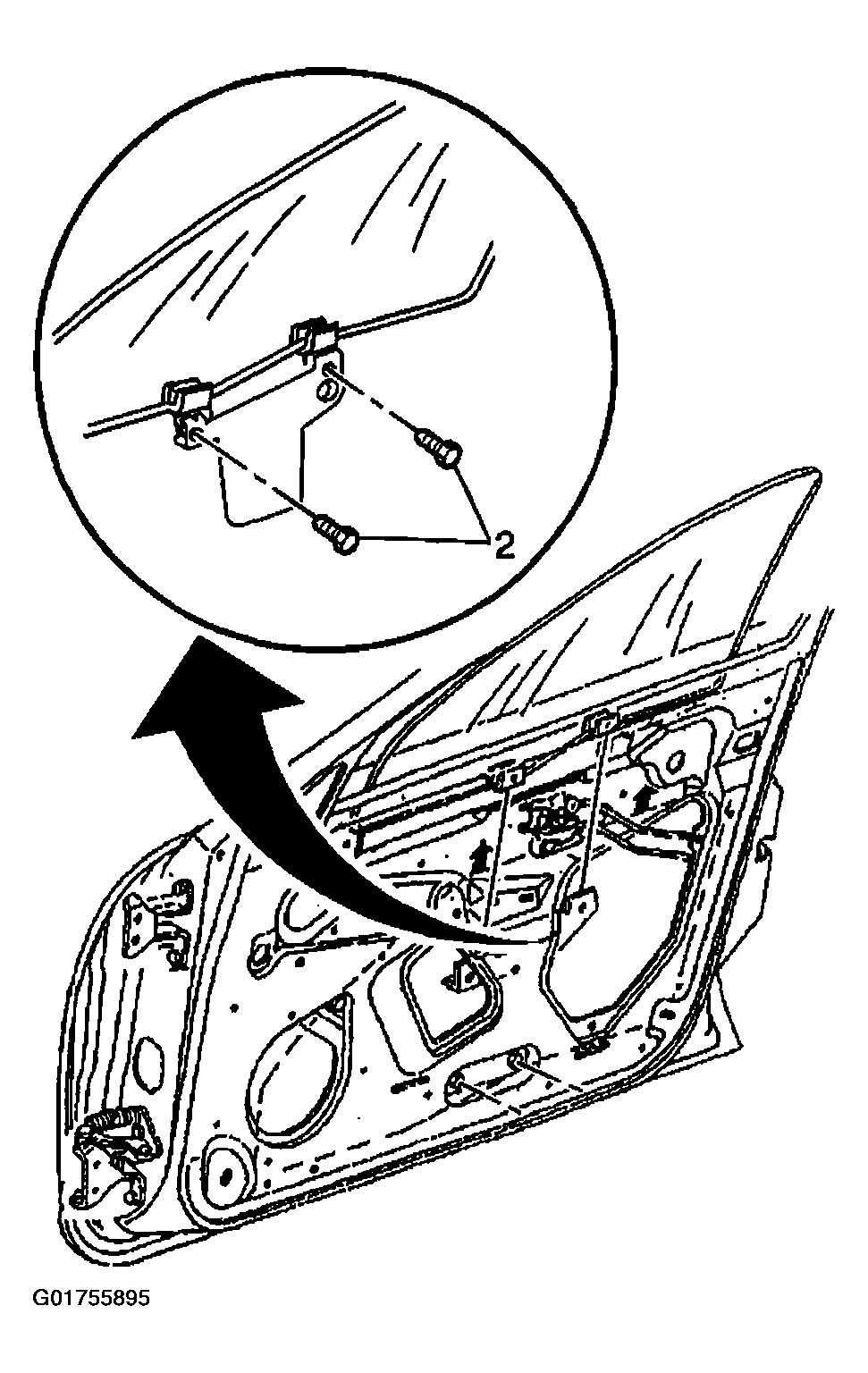

    Fig 1: Identifying Window-To-Regulator Bolts
    G01755895Courtesy of GENERAL MOTORS CORP.
  5. Remove the window from the door.

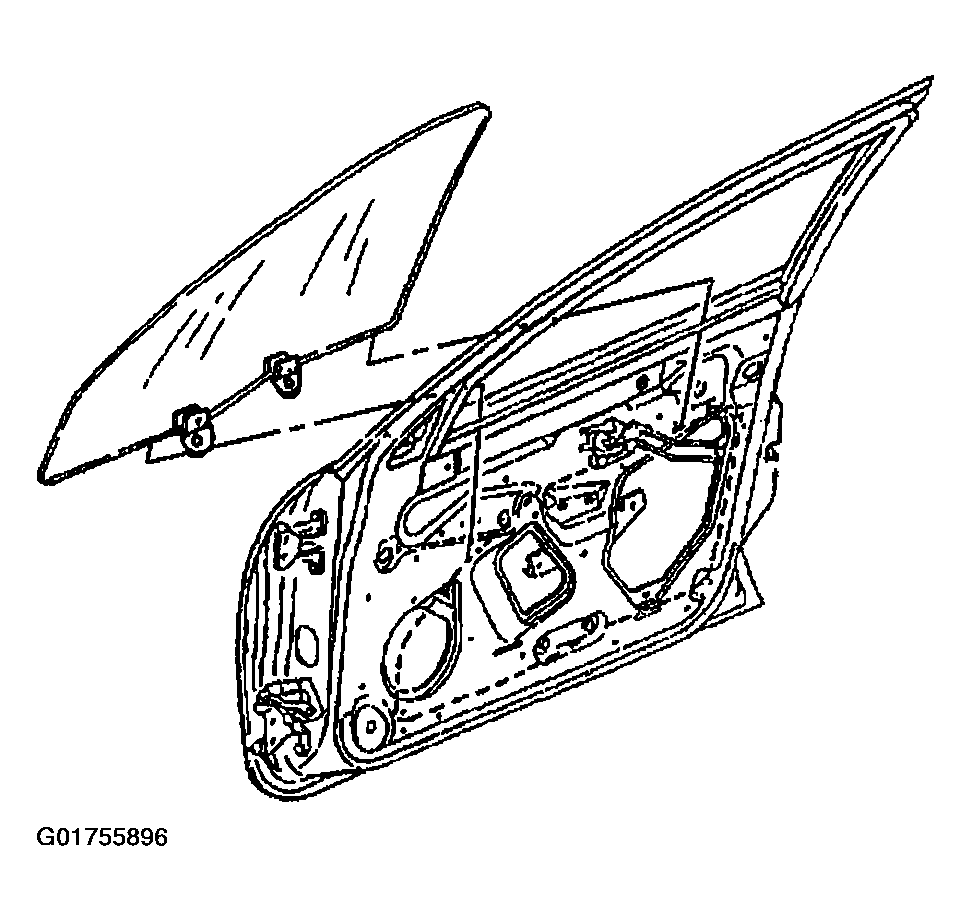

    Fig 2: Identifying Door Window
    G01755896Courtesy of GENERAL MOTORS CORP.
