Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the window in the full down position.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the inner sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  5. Remove the stationary window molding. Refer to Window Replacement - Rear Door Stationary .
  6. Pull the weatherstrip away from the door.

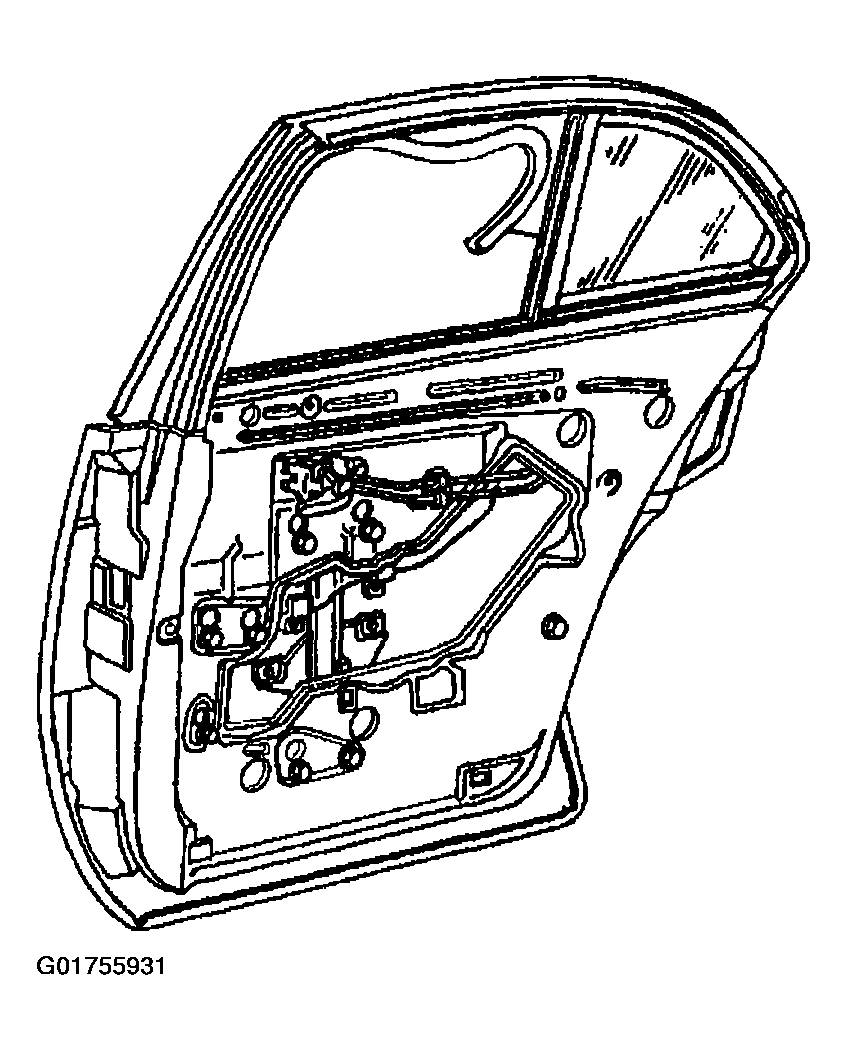

    7. Fig 1: Identifying Rear Door Window Weatherstrip
    G01755931Courtesy of GENERAL MOTORS CORP.
  7. Remove the window weatherstrip from the door.
