Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Remove the lower half of the front door weatherstrip and retainers using J 38778.

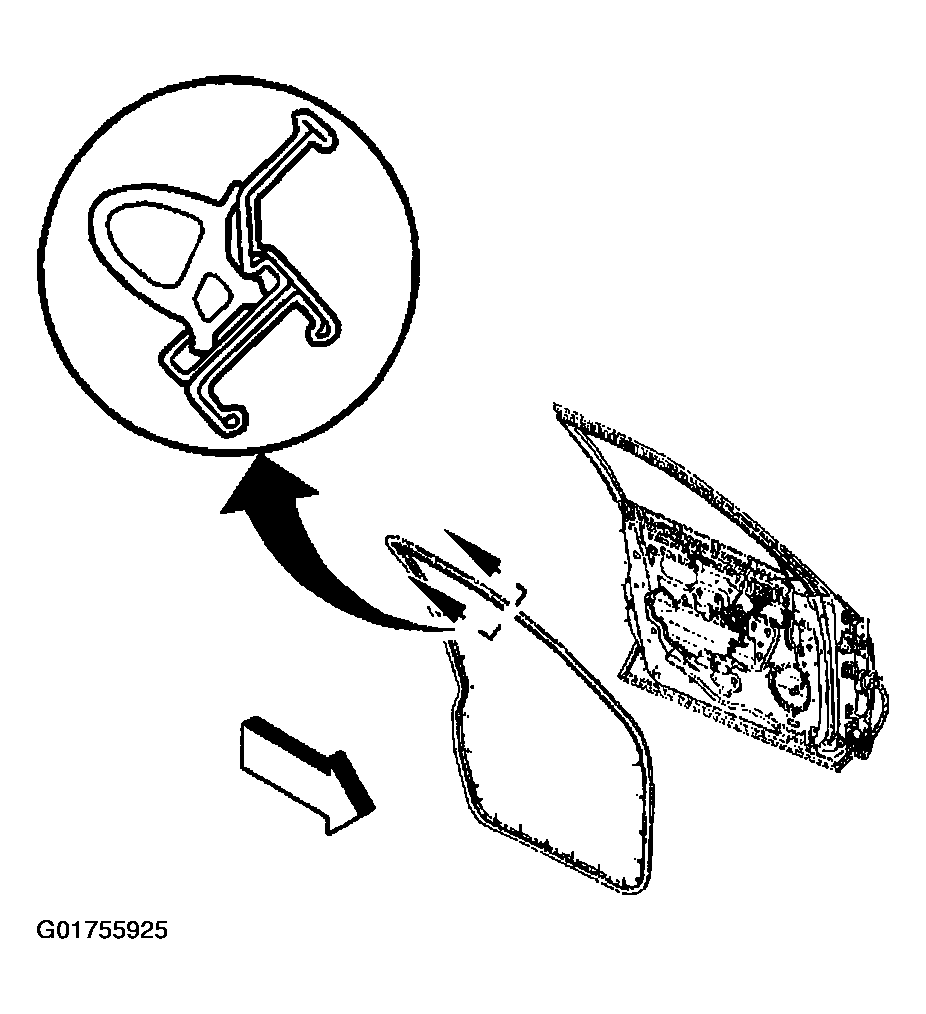

    3. Fig 1: Identifying Front Door Weatherstrip
    G01755925Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper half of the front door weatherstrip pulling the weatherstrip from the track.
  4. Remove the front door weatherstrip from the door.
