Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the outside mirror. Refer to Mirror Replacement - Remote  or Mirror Replacement - Power  .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the inner sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front .
  6. Remove the door window. Refer to Window Replacement - Front Door .

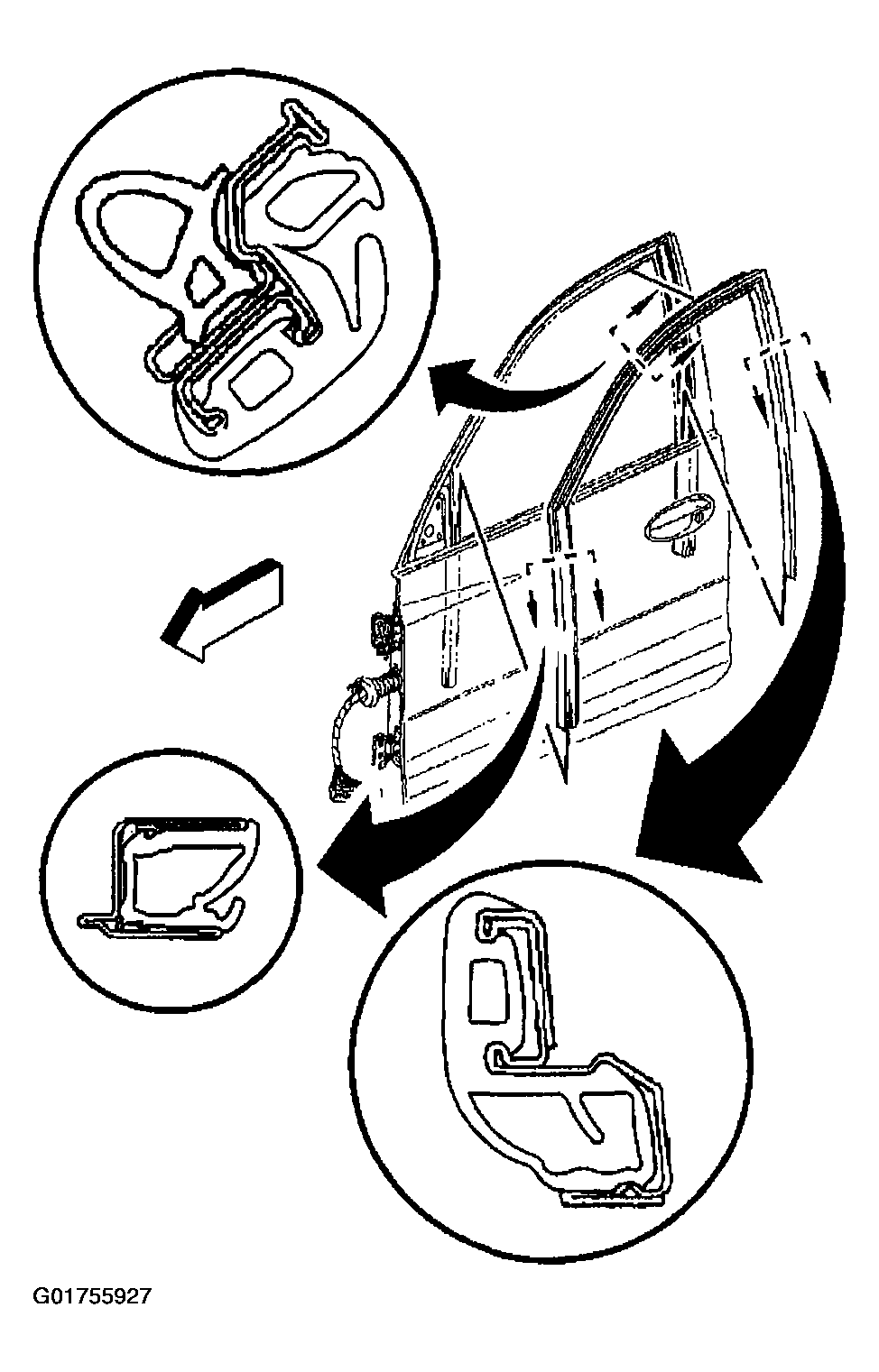

    Fig 1: Identifying Front Door Window Weatherstrip (1 Of 2)
    G01755927Courtesy of GENERAL MOTORS CORP.
  7. Carefully pull the window weatherstrip from the door (3).

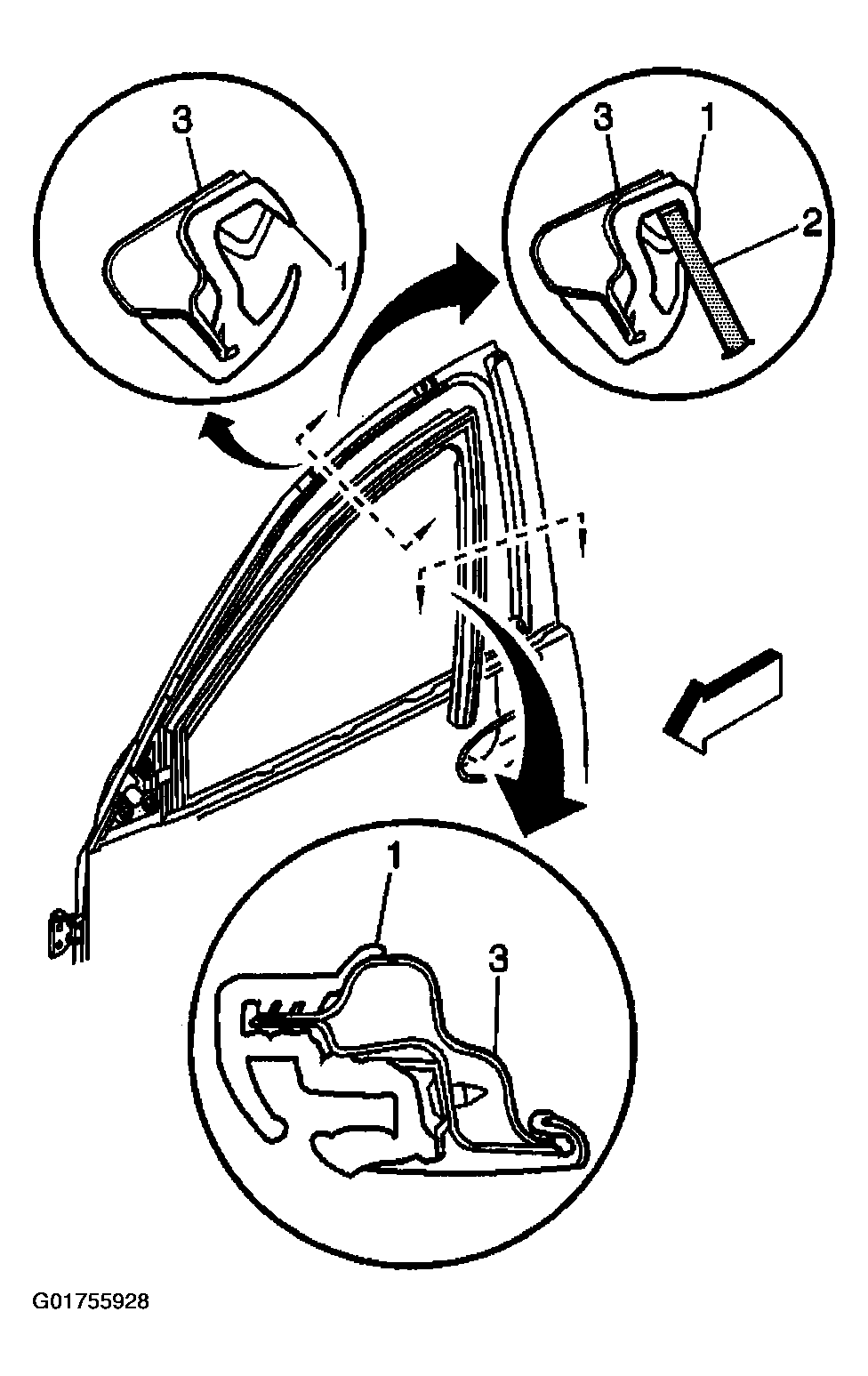

    Fig 2: Identifying Front Door Window Weatherstrip (2 Of 2)
    G01755928Courtesy of GENERAL MOTORS CORP.
