Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38778 Door Trim Pad Clip Remover

Open the front door.
Using J 38778 loosen the door opening carpet retainer clips. Remove the carpet retainer from the vehicle.
Remove the front door weatherstrip by pulling it off the pinch-weld flange.

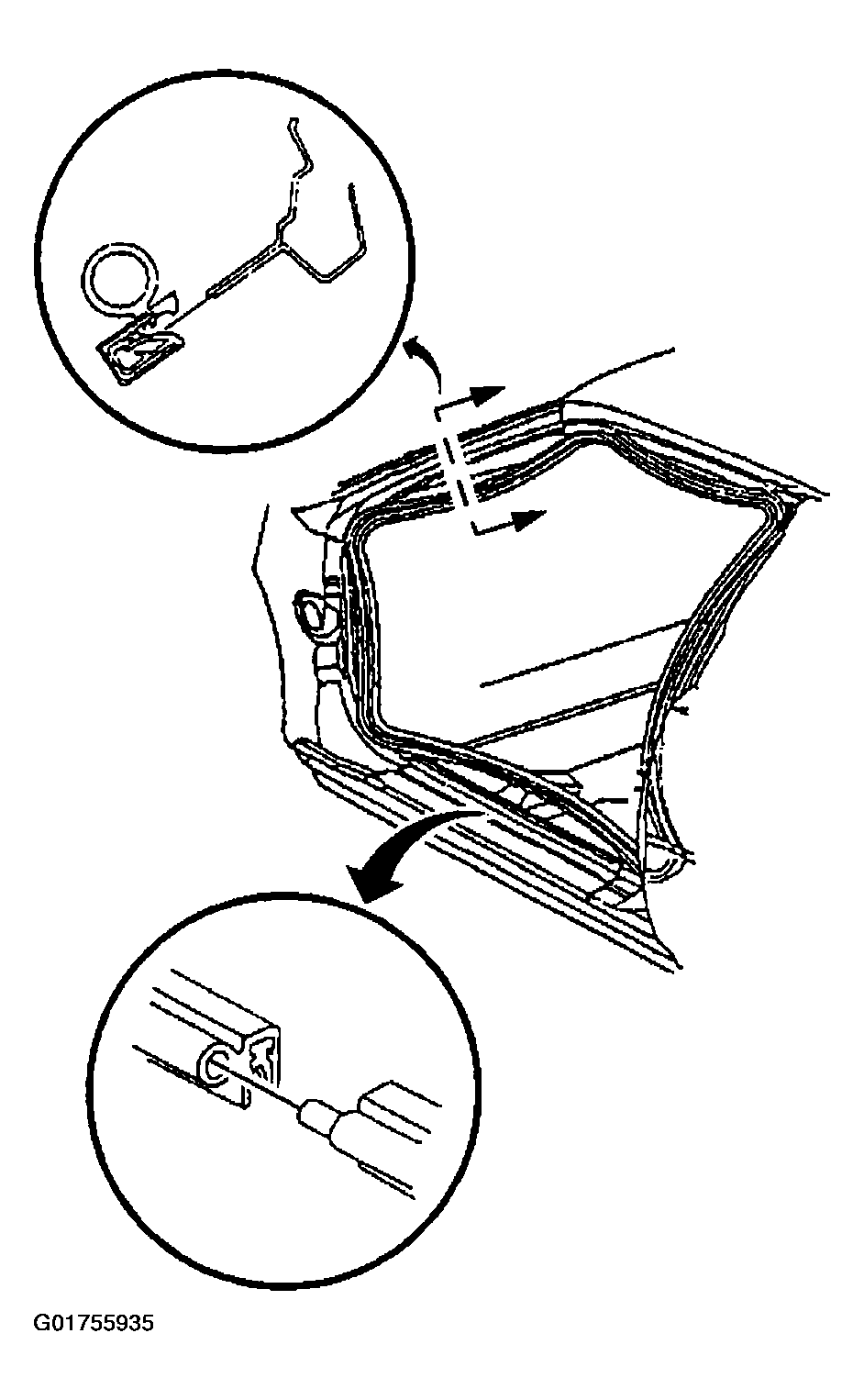

Fig 1: Identifying Front Door Opening Weatherstrip
Courtesy of GENERAL MOTORS CORP.
