Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Peel the water deflector off the door inner panel.
  3. Remove the any waterproof tape.

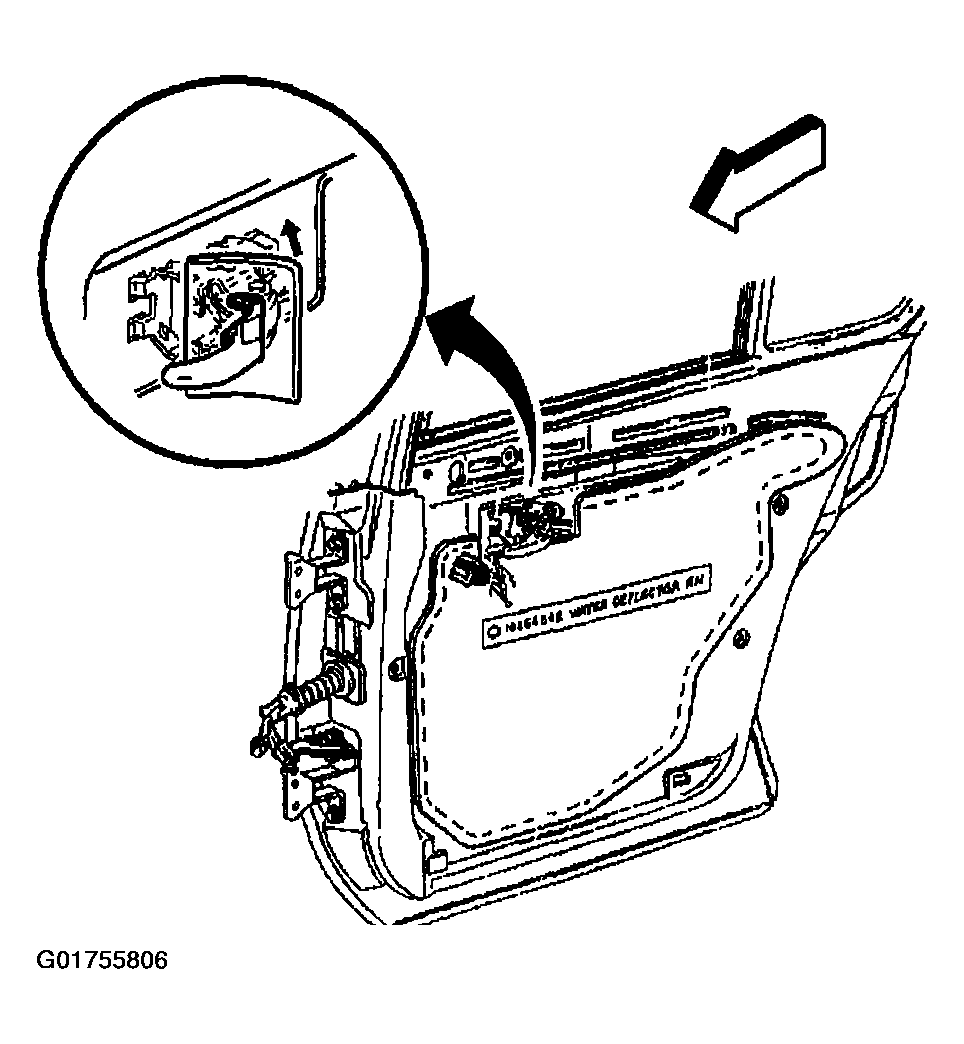

    4. Fig 1: Identifying Second Water Deflector - Rear Door
    G01755806Courtesy of GENERAL MOTORS CORP.
