Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the front door radio speaker. Refer to SPEAKER REPLACEMENT - FRONT DOOR .
  3. Carefully peel the water deflector away from the door removing any waterproof tape.
  4. Remove the second water deflector from around the door handle.

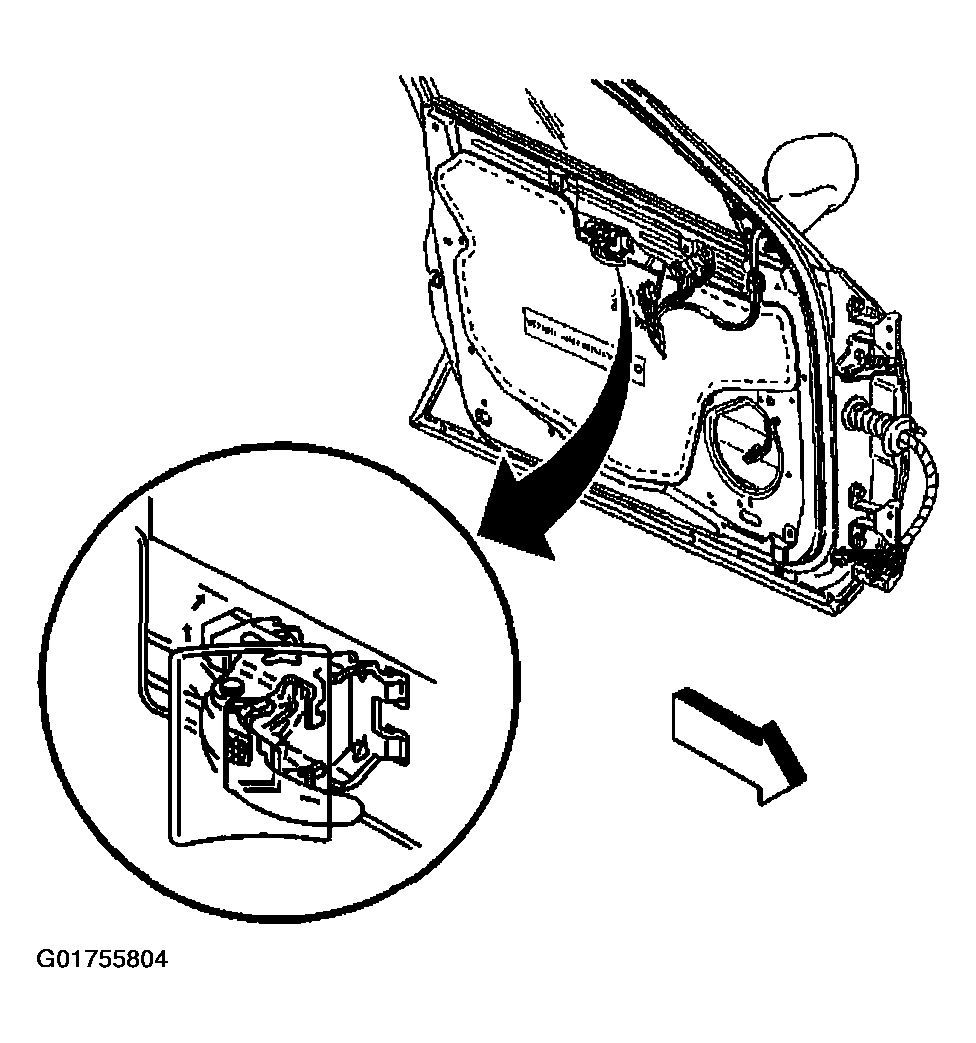

    5. Fig 1: Identifying Second Water Deflector - Front Door
    G01755804Courtesy of GENERAL MOTORS CORP.
