Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power window switch mounting plate. Refer to POWER WINDOW SWITCH REPLACEMENT - Front Door .
  2. Remove the cover in the armrest pull cup.

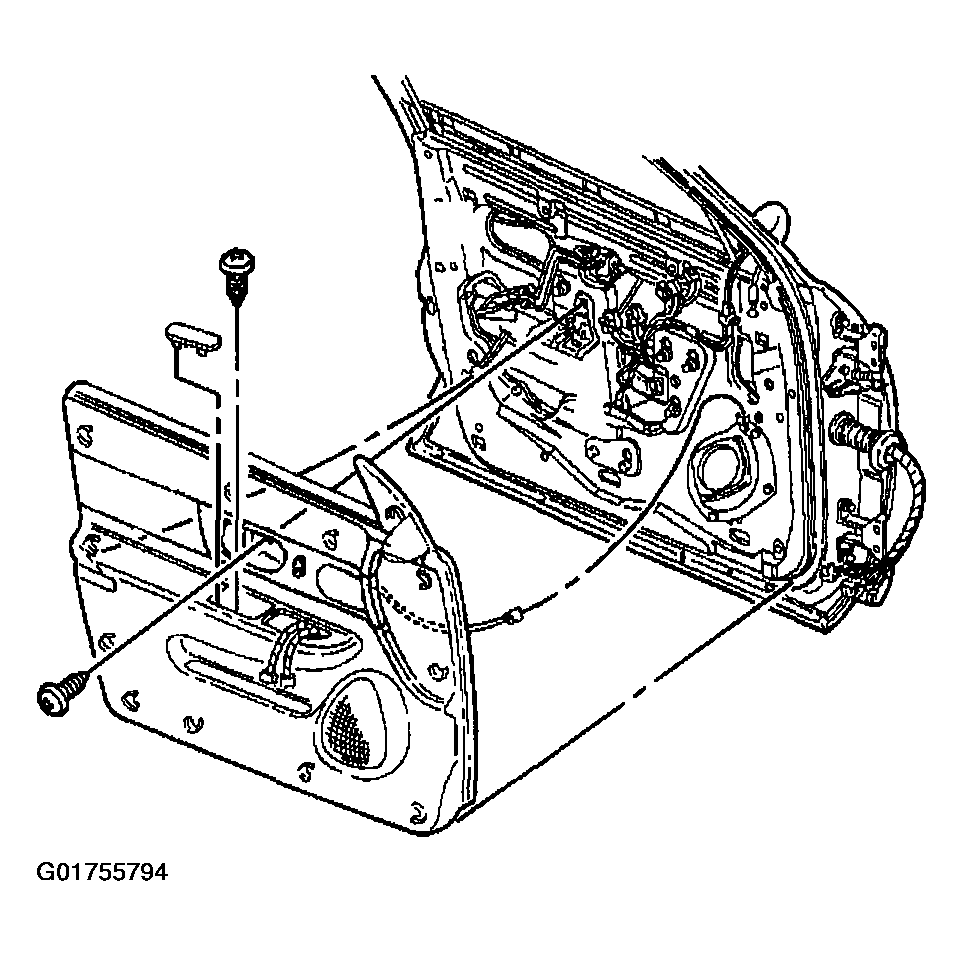

    3. Fig 1: Identifying Side Front Trim Panel Components
    G01755794Courtesy of GENERAL MOTORS CORP.
  3. Remove the armrest pull cup screws.
  4. Remove the screw from the inside door handle bezel.
  5. Insert a flat-bladed tool at the front edge of the bezel. Pry up to remove the bezel from its clips.
  6. Disconnect the electrical connector from the door lock switch.
  7. Disconnect the electrical connector from the reflector/courtesy lamp, if equipped.
  8. Starting at the door bottom, use the J 38778  to disengage the retainers from the door trim panel.
  9. Lift the trim panel up to release the top edge and move it away from the door.
  10. Disconnect the electric connector to the radio speaker.
  11. Remove the door panel.
