Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside rearview mirror. Refer to Mirror Replacement - Remote  or Mirror Replacement - Power  .
  2. Remove the front door outer belt sealing strip machine screw in the rear position.

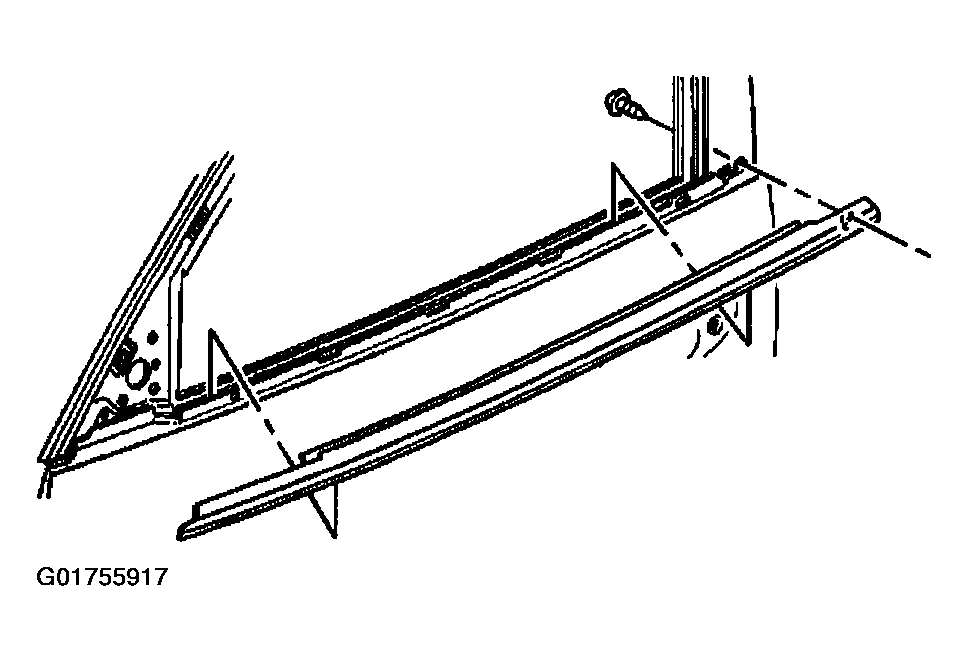

    3. Fig 1: Identifying Front Door Window Belt Outer - Front Sealing Strip
    G01755917Courtesy of GENERAL MOTORS CORP.
  3. Remove the front door outer belt sealing strip.
