Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Lift the sealing strip off the weld flange.

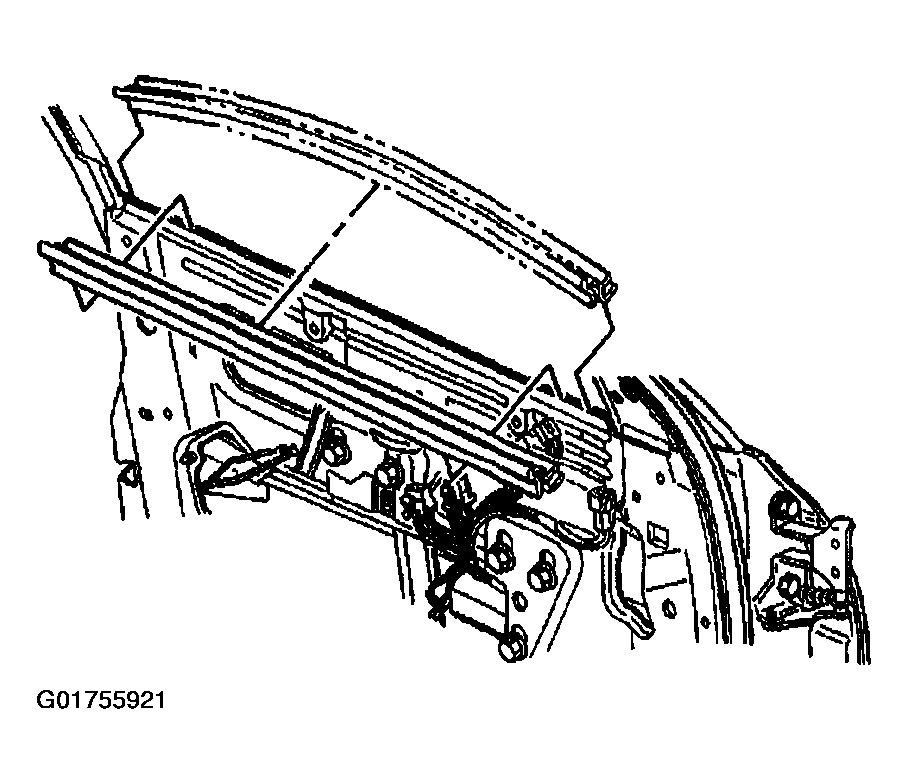

    Fig 1: Identifying Front Door Window Belt Inner Sealing Strip
    G01755921Courtesy of GENERAL MOTORS CORP.
