Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the outside mirror from door. Refer to Mirror Replacement - Power .
  2. Loosen the reveal molding at the top of the window.
  3. Pull the front door reveal molding from the door using a small flat-bladed tool to release the retaining clips while pulling.
  4. Remove the reveal molding from the door.

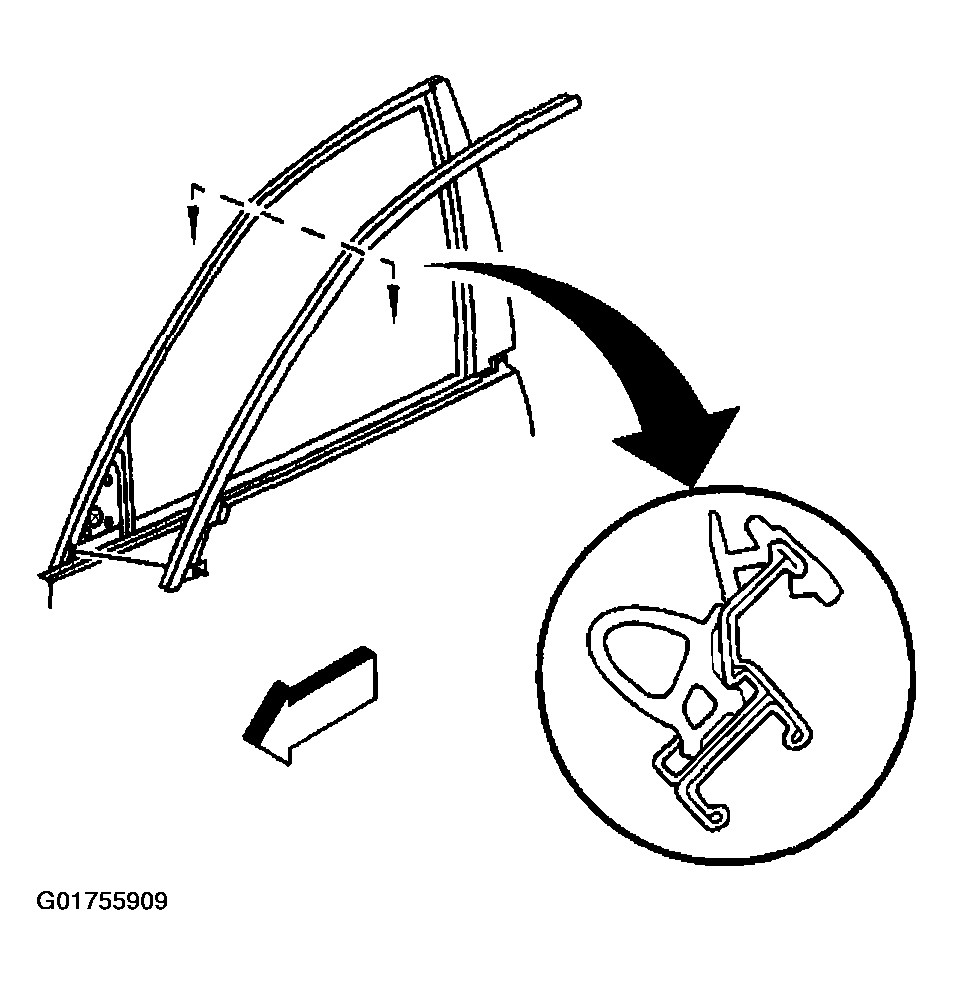

    Fig 1: Identifying Front Door Window Reveal Molding
    G01755909Courtesy of GENERAL MOTORS CORP.
