Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. From inside the trim panel, press the reflector retaining tabs in toward the center of the reflector.
  3. Remove the reflector (2) from the door trim.

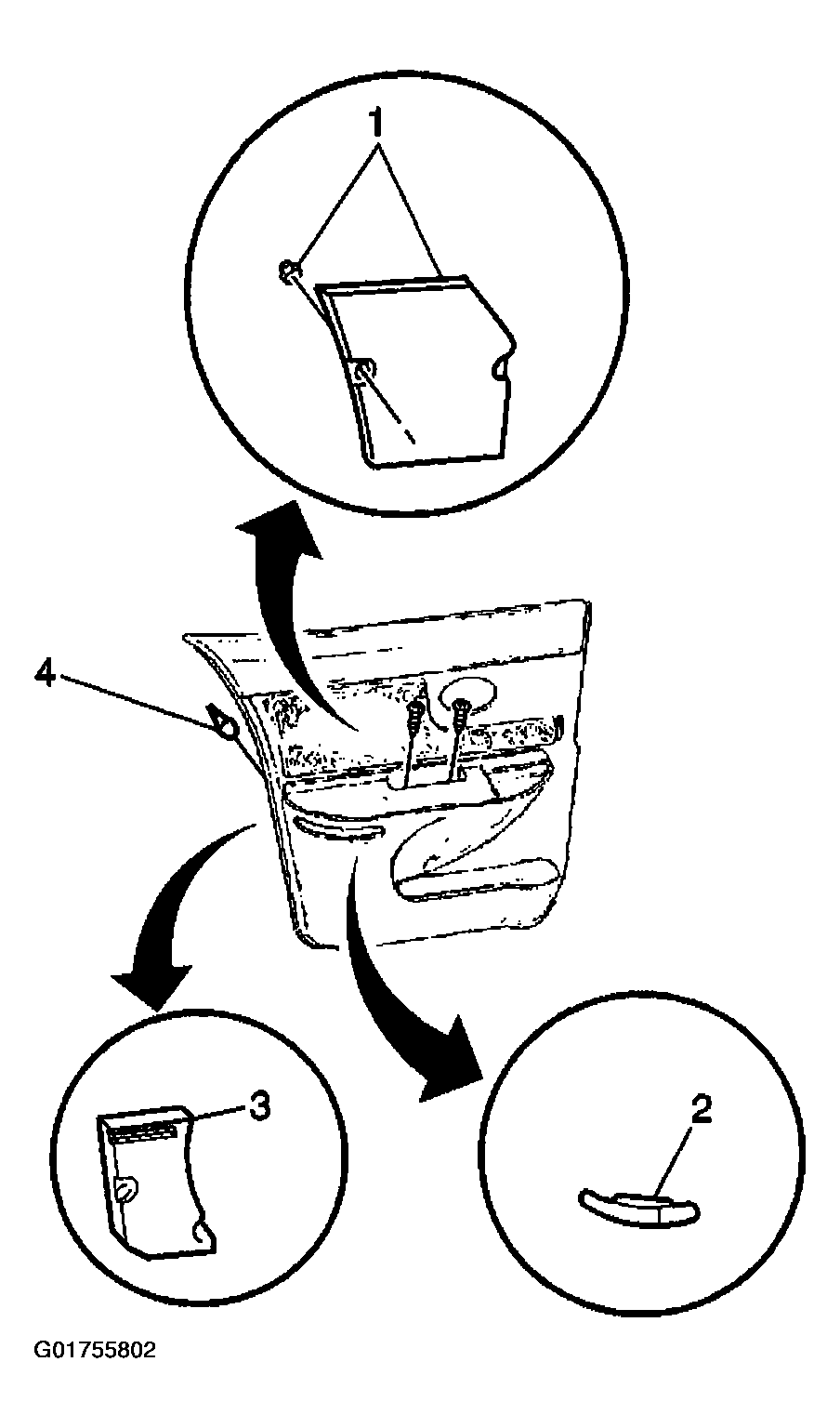

    4. Fig 1: Identifying Rear Door Warning Reflector
    G01755802Courtesy of GENERAL MOTORS CORP.
