Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the front door trim. Refer to Trim Panel Replacement - Side Front Door .
  3. From inside the trim panel, press the reflector retaining tabs together and push the reflector out.
  4. Remove the warning reflector from the trim panel.

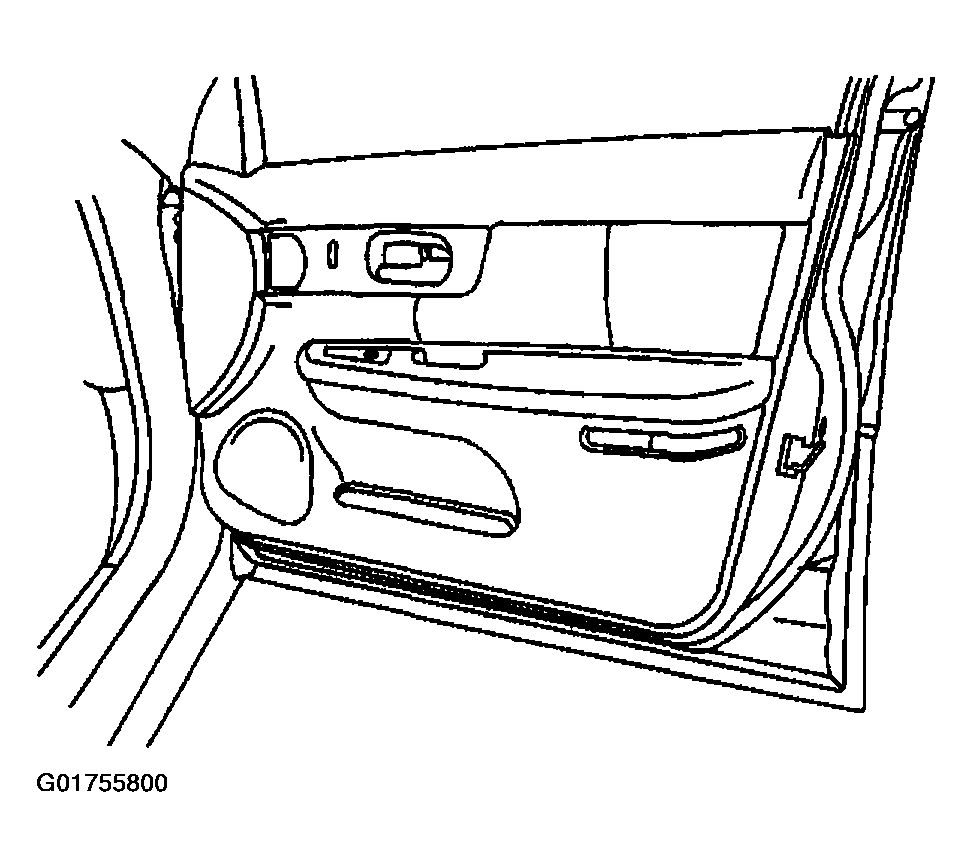

    5. Fig 1: Identifying Front Door Warning Reflector
    G01755800Courtesy of GENERAL MOTORS CORP.
