Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Disconnect the electrical connector to the mirror wire harness.
    CAUTION: Refer to EYE PROTECTION CAUTION .
  3. Remove the mirror face. Refer to Mirror Face Replacement .
  4. Remove the screws from the mirror motor.

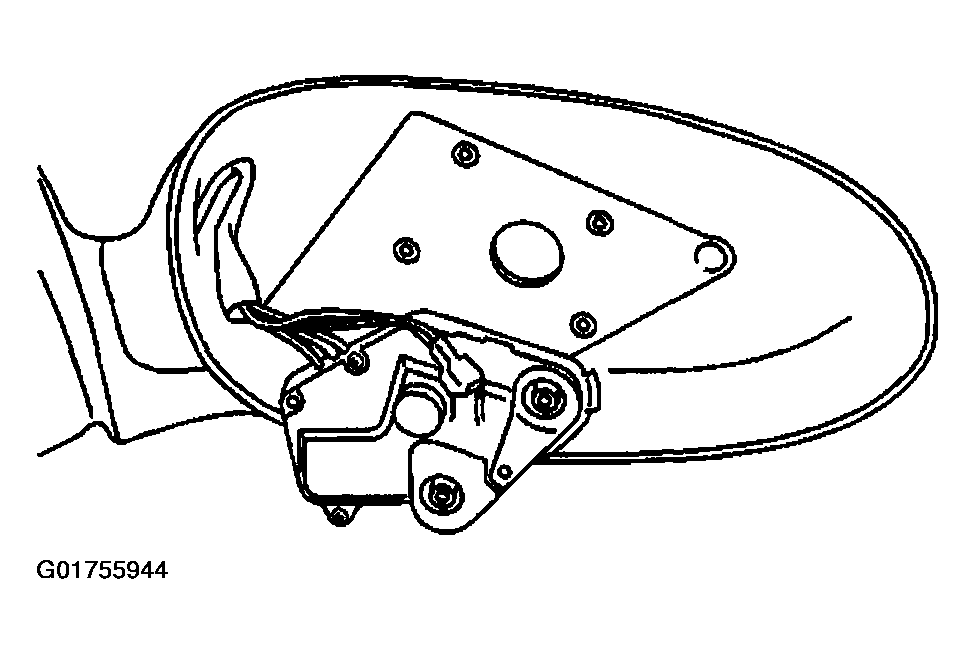

    5. Fig 1: Identifying Power Mirror Motor
    G01755944Courtesy of GENERAL MOTORS CORP.
  5. Pull the motor electrical harness through the mirror housing.
  6. Remove the motor from the mirror housing.
