Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not attempt repairs in order to correct lock discrepancies. Replace the lock.

Remove the outside handle. Refer to Door Handle Replacement - Front Outside .
Remove the lock cylinder retainer clip.

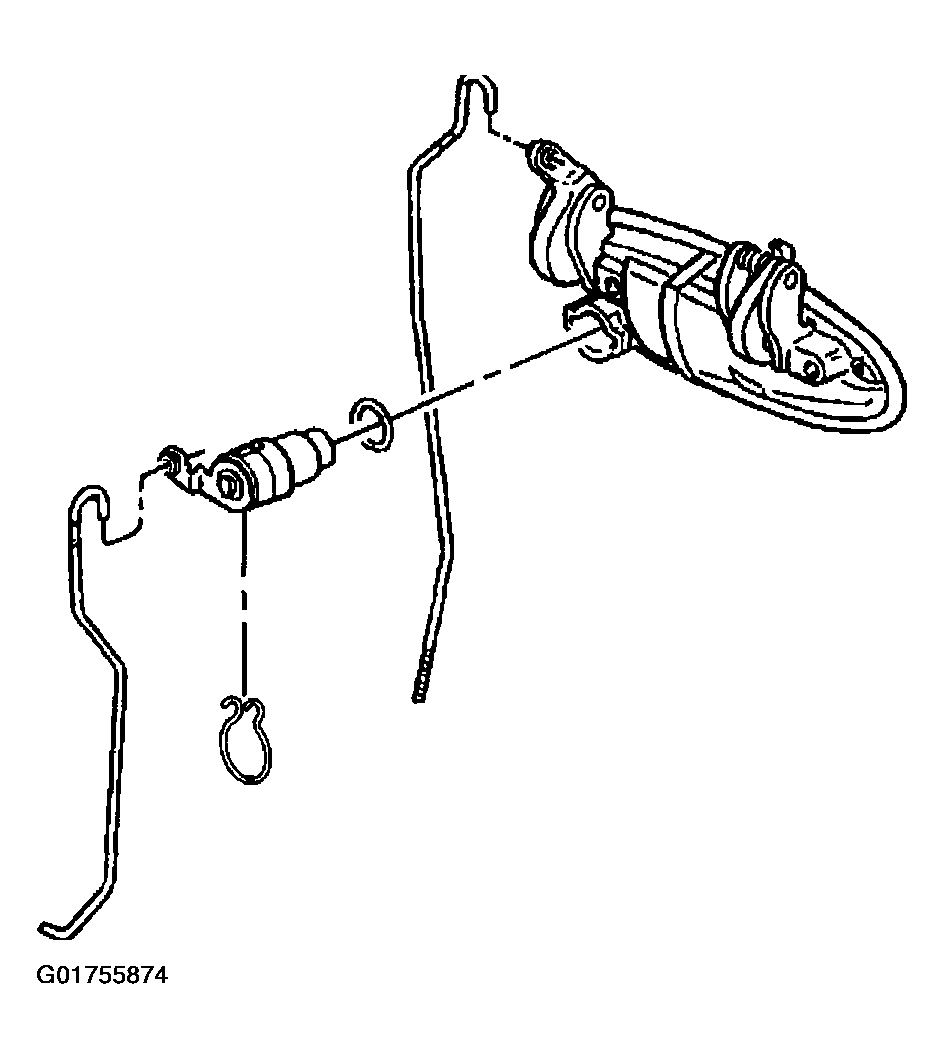

Fig 1: Identifying Door Lock Cylinder

Courtesy of GENERAL MOTORS CORP.

Remove the lock from the handle.
