Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door lock. Refer to Lock Replacement - Front Door .
  2. Remove the front door lock to front door lock actuator screws.

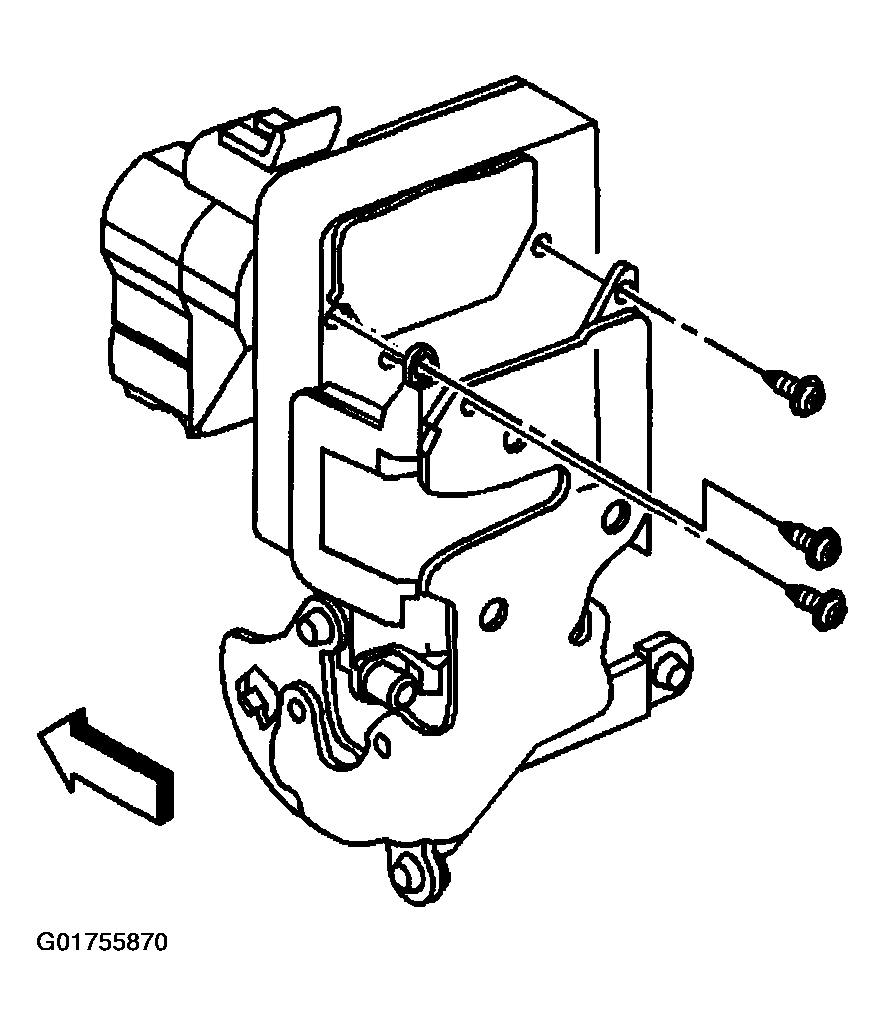

    3. Fig 1: Identifying Front Door Lock Actuator
    G01755870Courtesy of GENERAL MOTORS CORP.
  3. Remove the front door actuator from the front door lock.
