Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The bezel on the front inside door handle has an electrical connector for the power door lock system.

  1. Remove the inside door handle bezel screw.
  2. Using a small, flat-bladed tool, remove the inside door handle bezel from the door trim panel.
  3. Remove the inside door lock electrical connector.
  4. Remove the inside door handle bezel radio speaker electrical connector.
  5. Remove the inside door handle bezel from the vehicle.

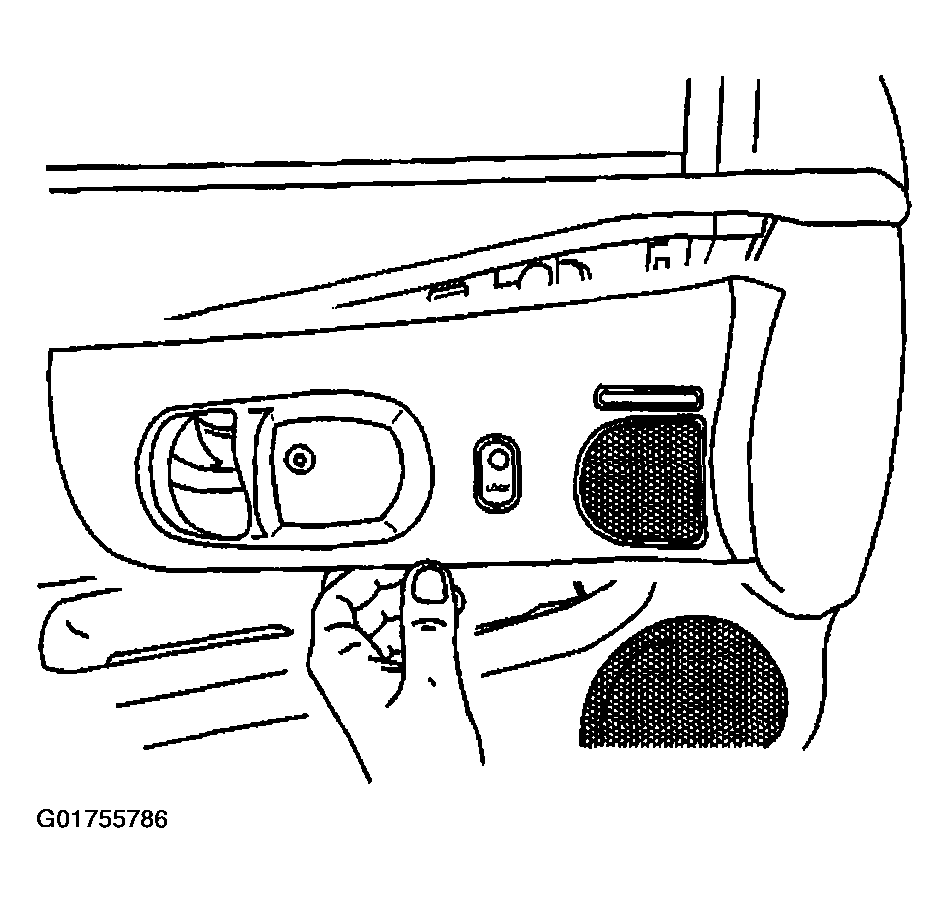

  6. Fig 1: Identifying Front Door Handle Bezel
    G01755786Courtesy of GENERAL MOTORS CORP.
