Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Important: Protect molding with heavy material tape to avoid damaging the underlying paint finish or the molding. Do not use pointed or sharp instruments for removal of a door molding.

Remove the window weatherstrip retainer. Refer to Weatherstrip Replacement - Front Door Window .
Remove the outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer - Front .
Slide the door frame molding upwards.
Remove the front door frame molding from the door.

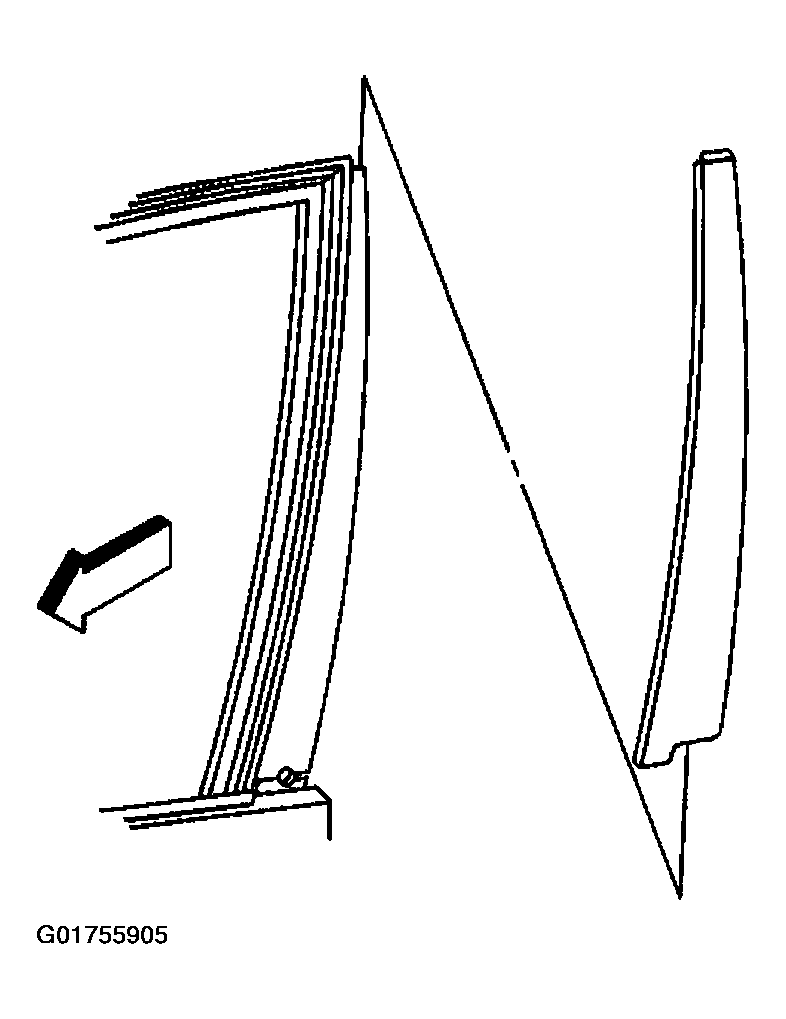

Fig 1: Identifying Front Door Frame Garnish Molding
Courtesy of GENERAL MOTORS CORP.
