Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the door.
  2. Remove the trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the window regulator. Refer to Window Regulator Replacement - Rear Door .
  5. Remove clip holding energy absorber in position.

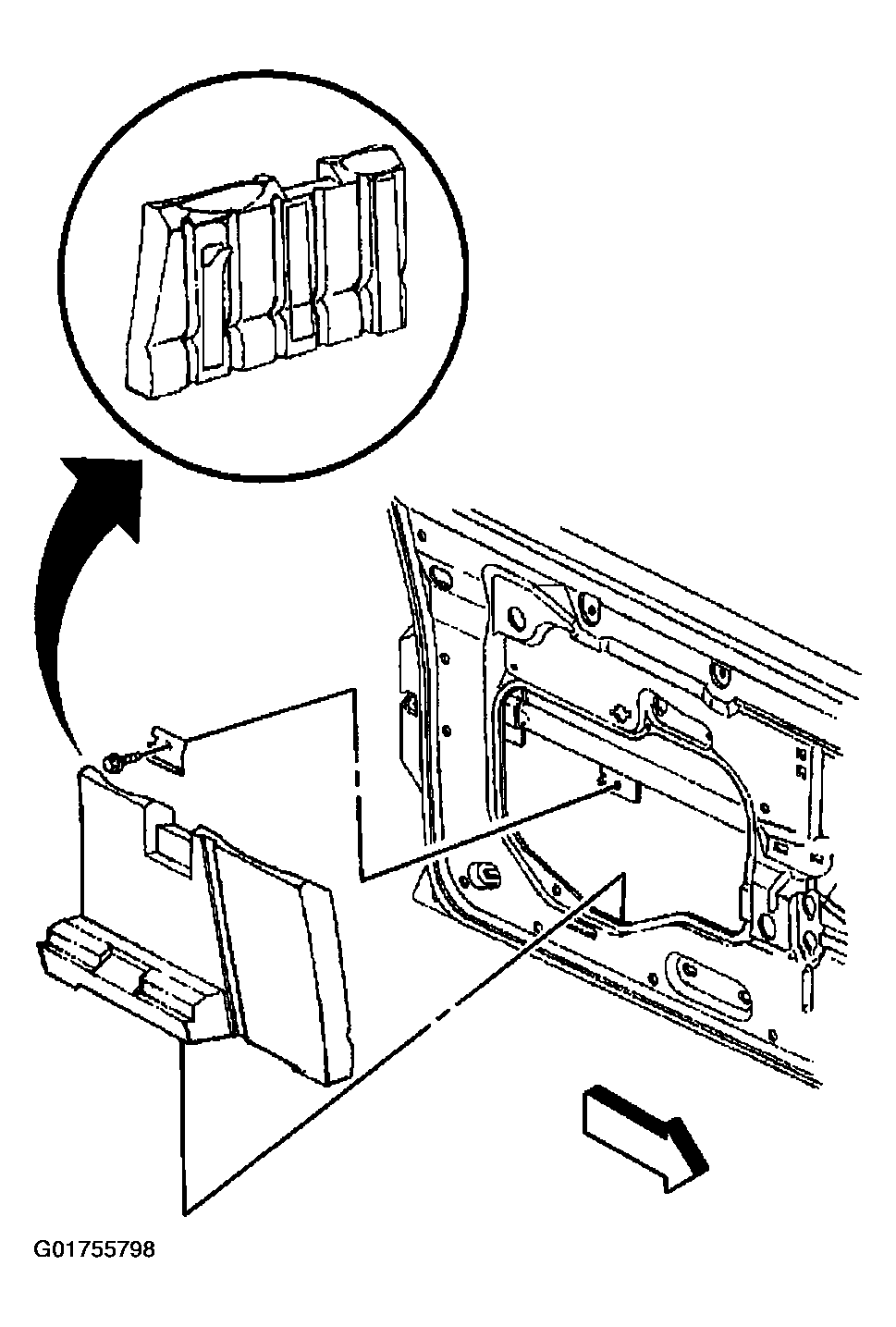

    6. Fig 1: Identifying Energy Absorber Pad
    G01755798Courtesy of GENERAL MOTORS CORP.
  6. Grasp the energy absorber with hands and pull it away from the door.
