Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the water deflector as needed. Refer to Water Deflector Replacement - Front Door .
  3. Use side cutters in order to cut off the outside handle rod-to-lock clip from the lock.

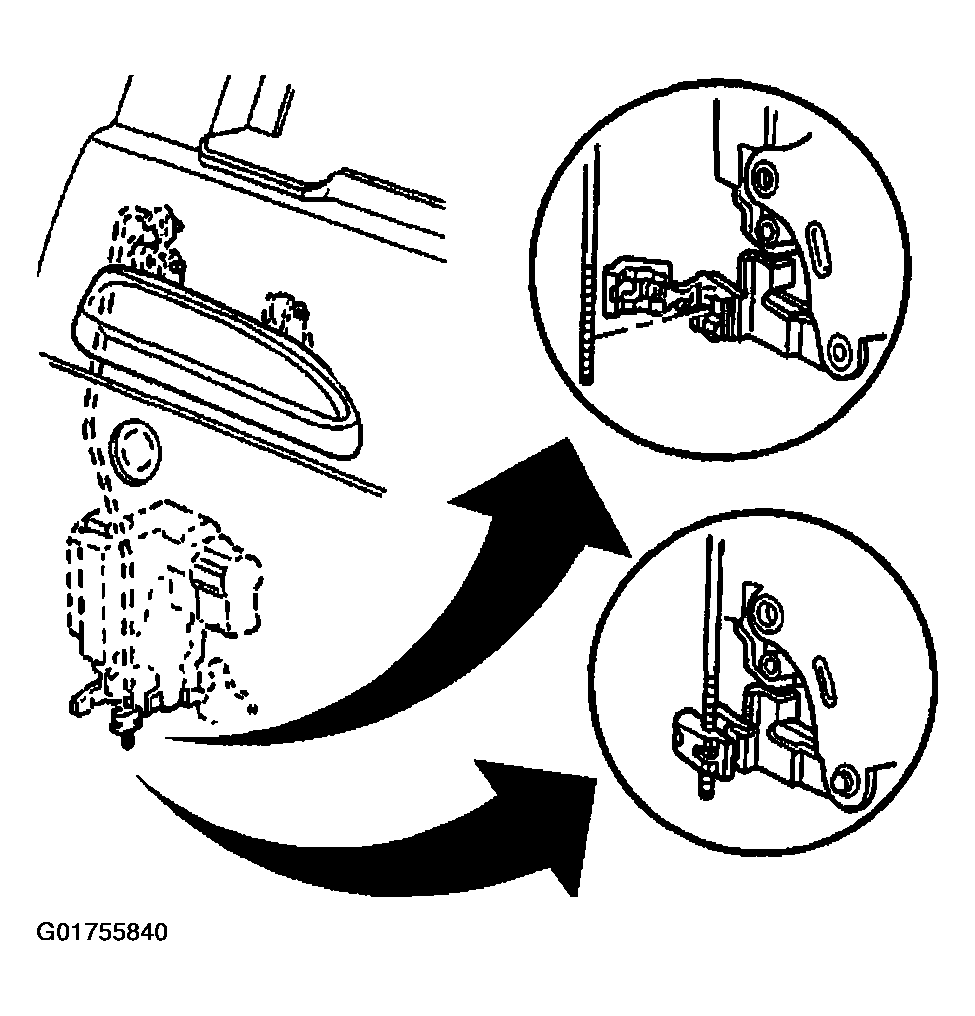

    4. Fig 1: Identifying Outside Door Handle-To-Lock Rod
    G01755840Courtesy of GENERAL MOTORS CORP.
  4. Unscrew the remainder of the clip from the outside handle rod.

    Discard the clip.
