Fore/Aft Adjustment

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the two 13 mm body side upper and lower hinge bolts (1). Do not remove them.

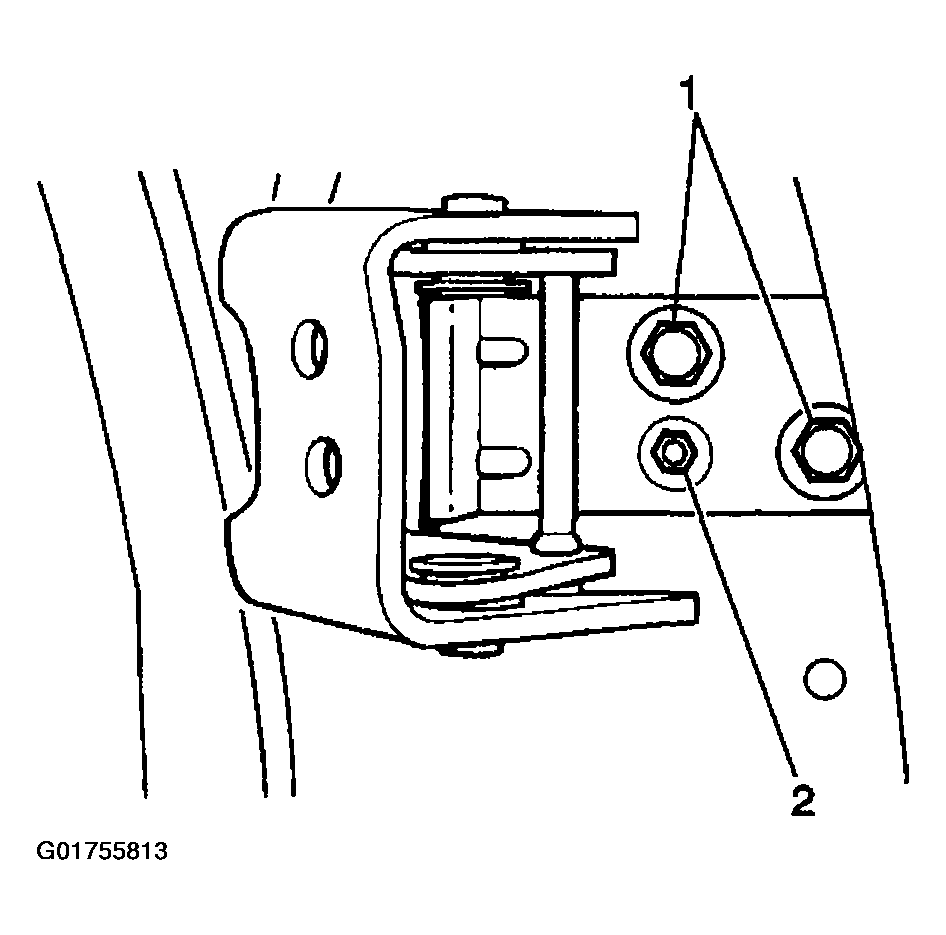

    2. Fig 1: Identifying Rear Door (Body Side) Hinge Bolts
    G01755813Courtesy of GENERAL MOTORS CORP.
  2. Loosen the 10 mm cone adjuster body side hinge bolt (1).
    3. Fig 2: Identifying 10 mm Cone Adjuster Body Side Hinge Bolt
    G01755814Courtesy of GENERAL MOTORS CORP.
  3. Adjust the door fore and aft by repositioning the door as needed.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the one 10 mm cone adjuster (1) body side hinge bolt. Tighten the cone adjuster body side hinge bolt to 10 N.m (89 in lbs).
  5. Apply Loctite® Blue GM P/N 12345382, or Canadian P/N 10953489, or equivalent prior to installing the body side hinge bolts.
  6. Install two 13 mm body side hinge bolts (1). Tighten the body side hinge bolts to 33 N.m (24 ft lbs).

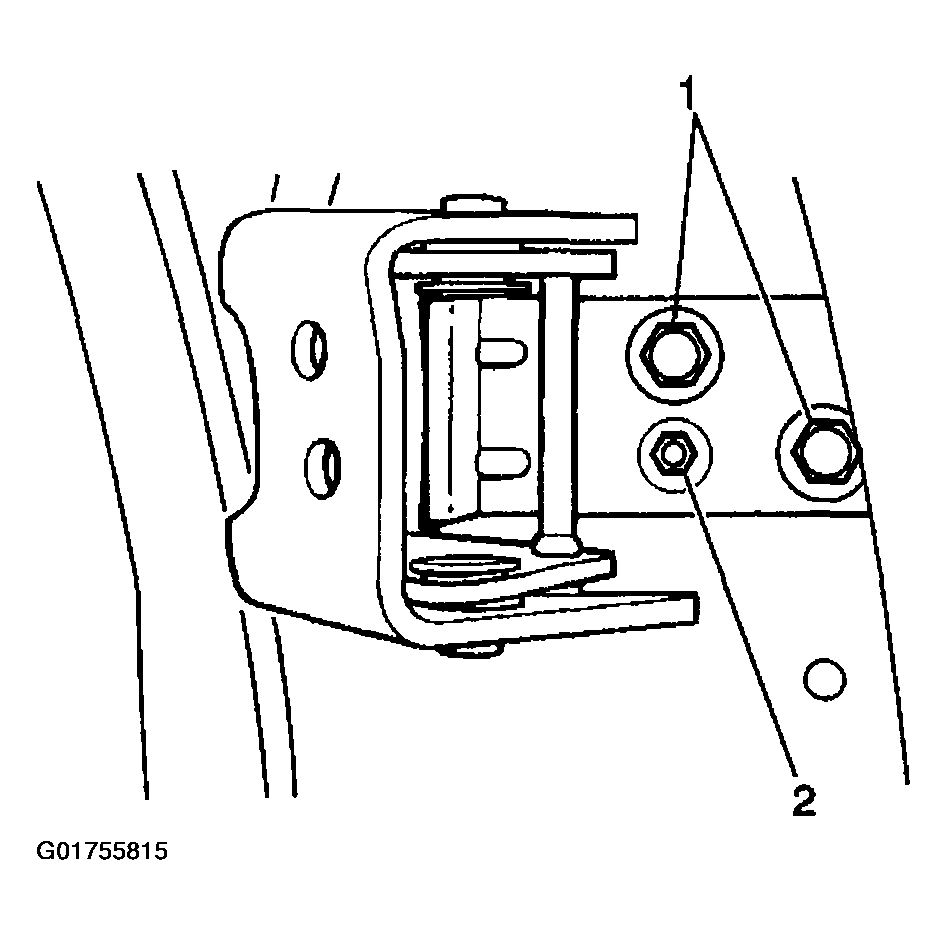

    7. Fig 3: Identifying Rear Door (Body Side) Hinge Bolts
    G01755815Courtesy of GENERAL MOTORS CORP.
