Up/Down or In/Out Adjustment

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Important: The door side upper and lower hinge bolts must remain tight enough to retain door adjusted position

Loosen the 13 mm door side upper and lower hinge bolts. Do not remove the bolts.

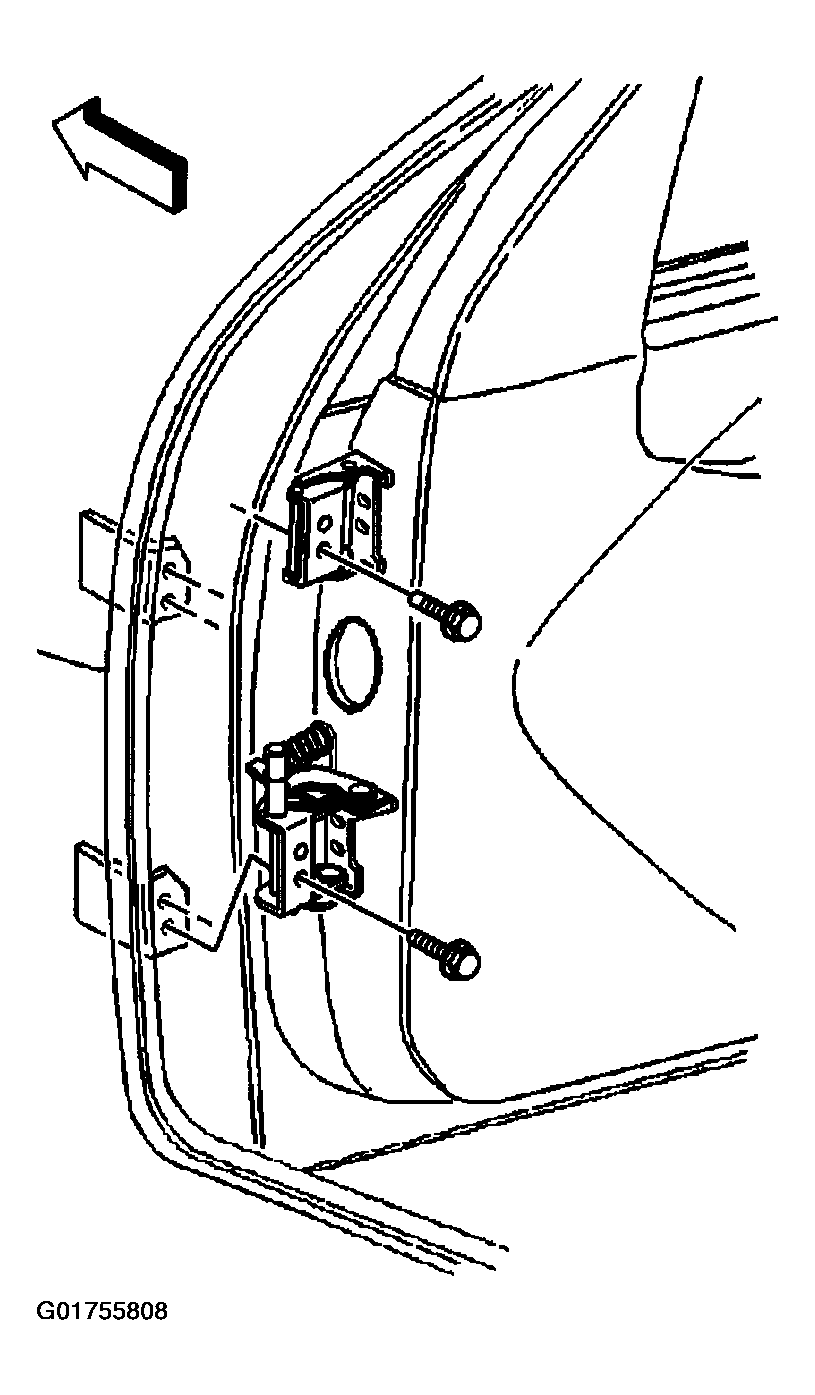

Fig 1: Identifying Front Door (Door Side) Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

Adjust the door up or down by repositioning the door as needed.
Adjust the door in or out by repositioning the door as needed.
NOTE: Refer to FASTENER NOTICE .
Tighten the 13 mm door side hinge bolts. Tighten the door side upper and lower hinge bolts to 33 N.m (24 ft lbs).
