Fore/Aft Adjustment

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front fender insulator in order to gain access to the body side hinge bolts. Refer to Fender Sound Insulator Replacement - Front .
Loosen the 13 mm body side upper and lower hinge bolts (1).
Do not remove the bolts (1).

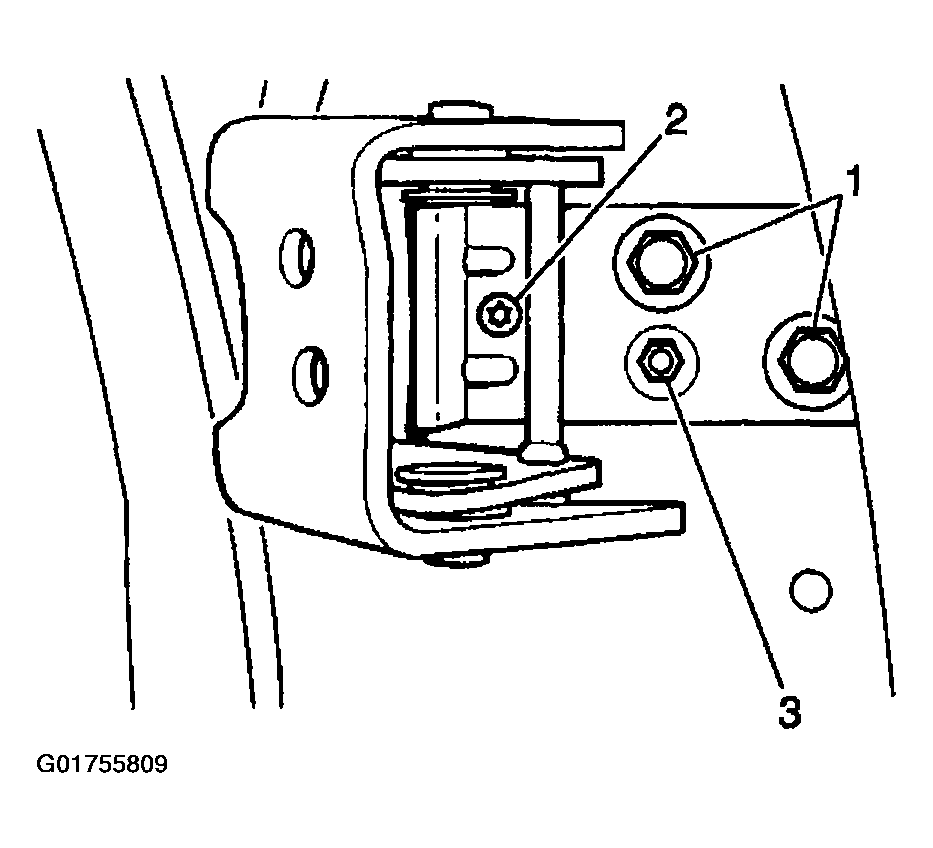

Fig 1: Identifying Front Door (Body Side) Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

Loosen one 10 mm cone adjuster body side hinge bolt (3).
Do not remove the bolt.
Loosen the TORX® body side upper and lower hinge bolts (2).
Do not remove the bolt.
Adjust the door fore and aft by repositioning the door as needed.
NOTE: Refer to FASTENER NOTICE .
Tighten the TORX® body side upper and lower hinge bolts. Tighten the TORX® head body side hinge bolt to 10 N.m (89 in lbs).
Tighten the 10 mm cone adjuster body side hinge bolt. Tighten the cone adjuster body side hinge bolt to 10 N.m (89 in lbs).
Tighten the 13 mm body side hinge bolts. Tighten the body side upper and lower hinge bolts to 33 N.m (24 ft lbs).
Install the front fender insulator. Refer to Fender Sound Insulator Replacement - Front .
