Wiper Crank Arm: Installation
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
- Position the wiper motor crank arm onto the wiper motor.

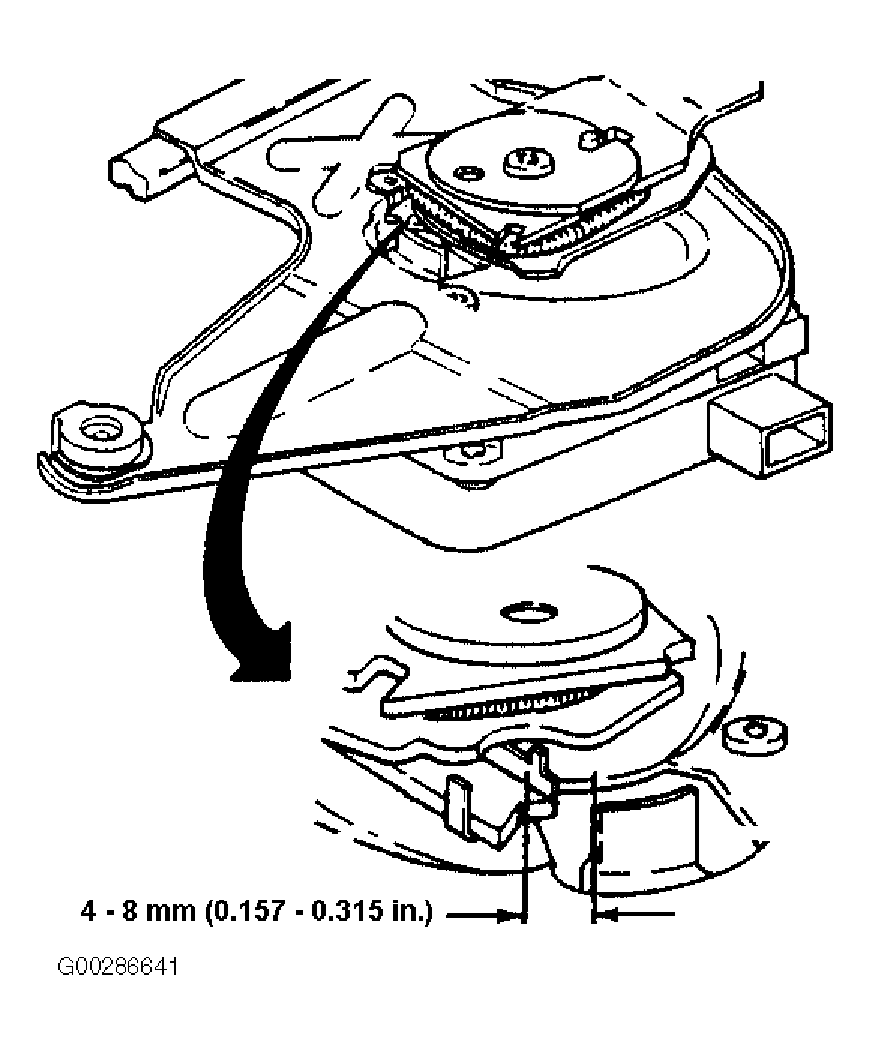

- Measure the gap between wiper motor crank arm and the bracket tab. If the gap is not 0.157-0.314 in. (4-8 mm), remove the wiper motor crank arm and repeat installation. See Fig 1 .
- Install the wiper motor crank arm screw. Tighten the screw to 12 ft lbs. (16 N.m).
- Install the wiper motor crank arm cover.
- Using the J-39529, install the wiper transmission to the wiper motor crank arm.
- Install the air inlet grille panel.
- Install the wiper motor water deflector.
- Operate the windshield wipers and inspect for proper operation.
