Transaxle Brace: Installation

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

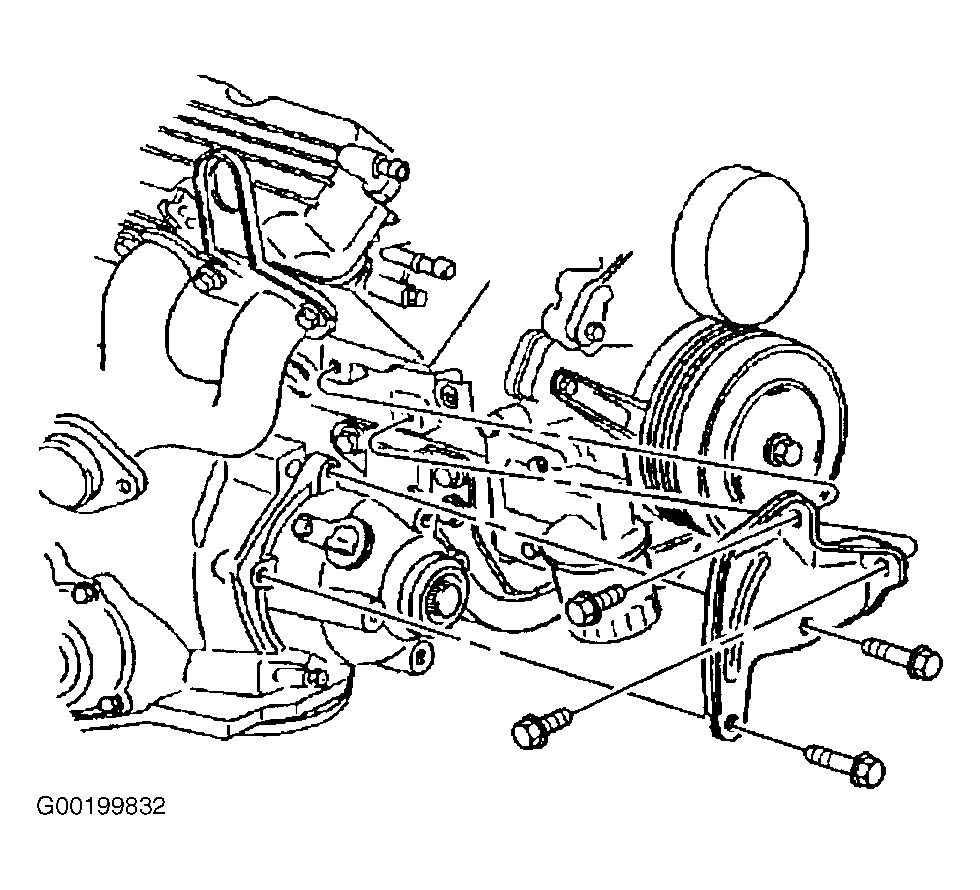

  1. Install the transaxle brace. See Figure .
  2. Hand start the bolts to the engine and to the transaxle. See Figure .
  3. Install the transaxle brace bolts to the transaxle. Tighten the transaxle brace bolts-to-transaxle to specification. See TORQUE SPECIFICATIONS  .
  4. Install the transaxle brace bolts to the engine. Tighten the transaxle brace bolts-to-engine to specification. See TORQUE SPECIFICATIONS  .
  5. Install the right front tire and wheel. Tighten to specification. See TORQUE SPECIFICATIONS  .
  6. Lower the vehicle.
