Removal - Left (3.1L)
WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

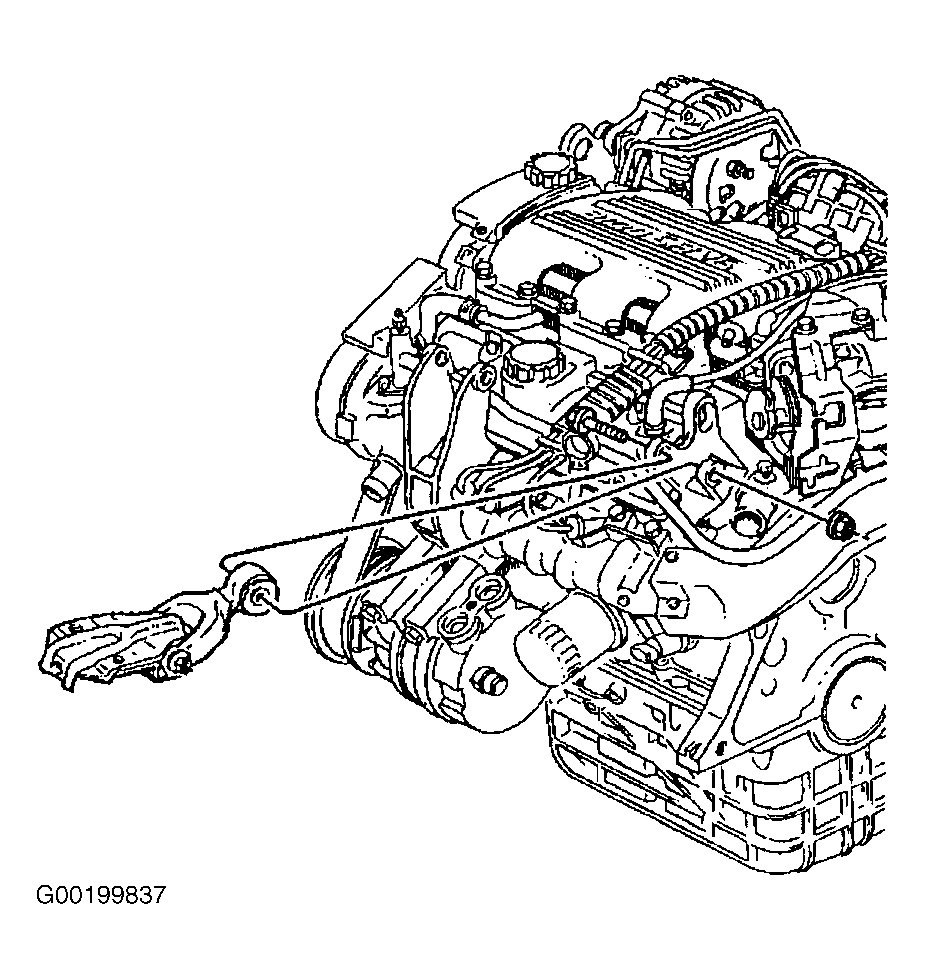

- Remove the engine mount strut from the left engine mount strut bracket. See Fig 1
.
- Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head. See Fig 2
.
- Remove the left engine mount strut bracket. See Fig 2
.
Courtesy of GM
Courtesy of GM
