Removal (3.1L)

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. See Fig 1 .
Remove the horizontal engine mount strut bracket bolt from the engine mount strut bracket. See Fig 2 .
Remove the vertical engine mount strut bracket bolts from the engine mount strut bracket.
Remove the engine mount strut bracket from the upper radiator support.

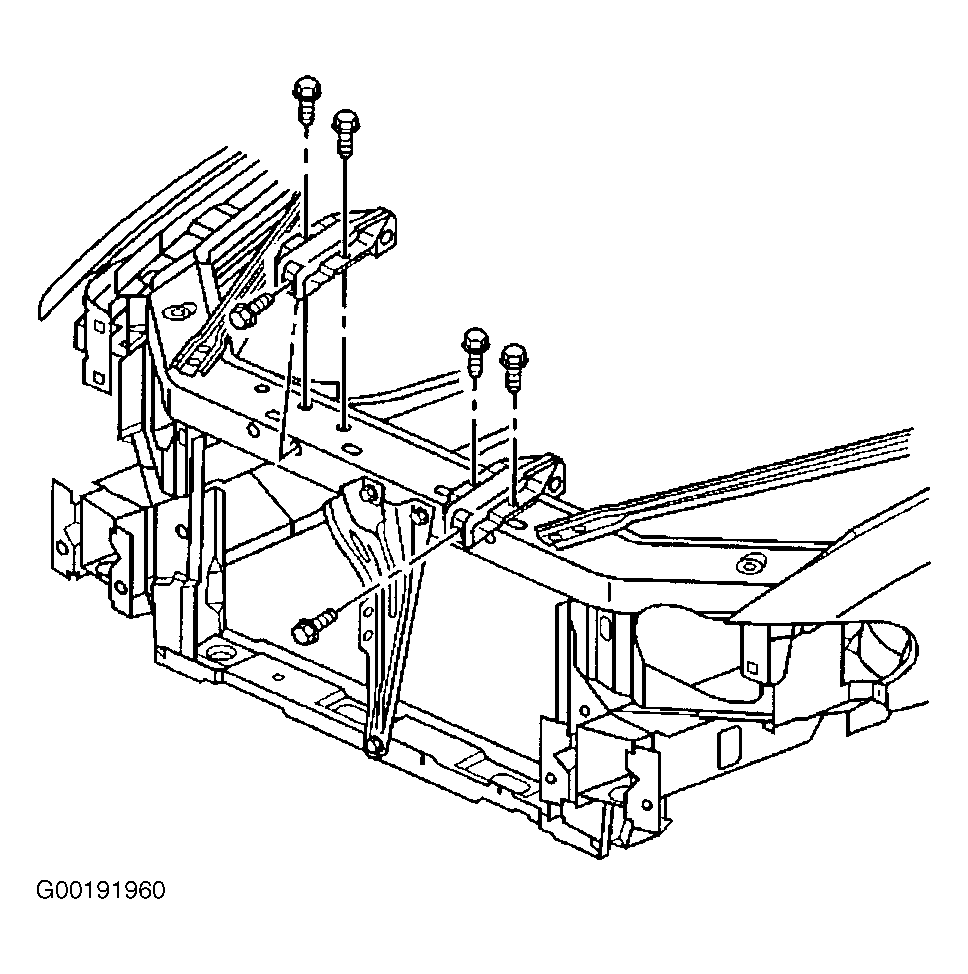

Fig 1: Removing Engine Mount Strut Bracket-To-Upper Radiator Support
Courtesy of GM

Fig 2: Removing Horizontal Engine Mount Strut Bracket Bolts
Courtesy of GM
