Installation (3.8L)

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the engine mount strut bracket over the upper radiator support so the engine mount strut bracket and the engine mount strut are aligned. Align the engine mount strut bracket with the proper holes of the upper radiator support.

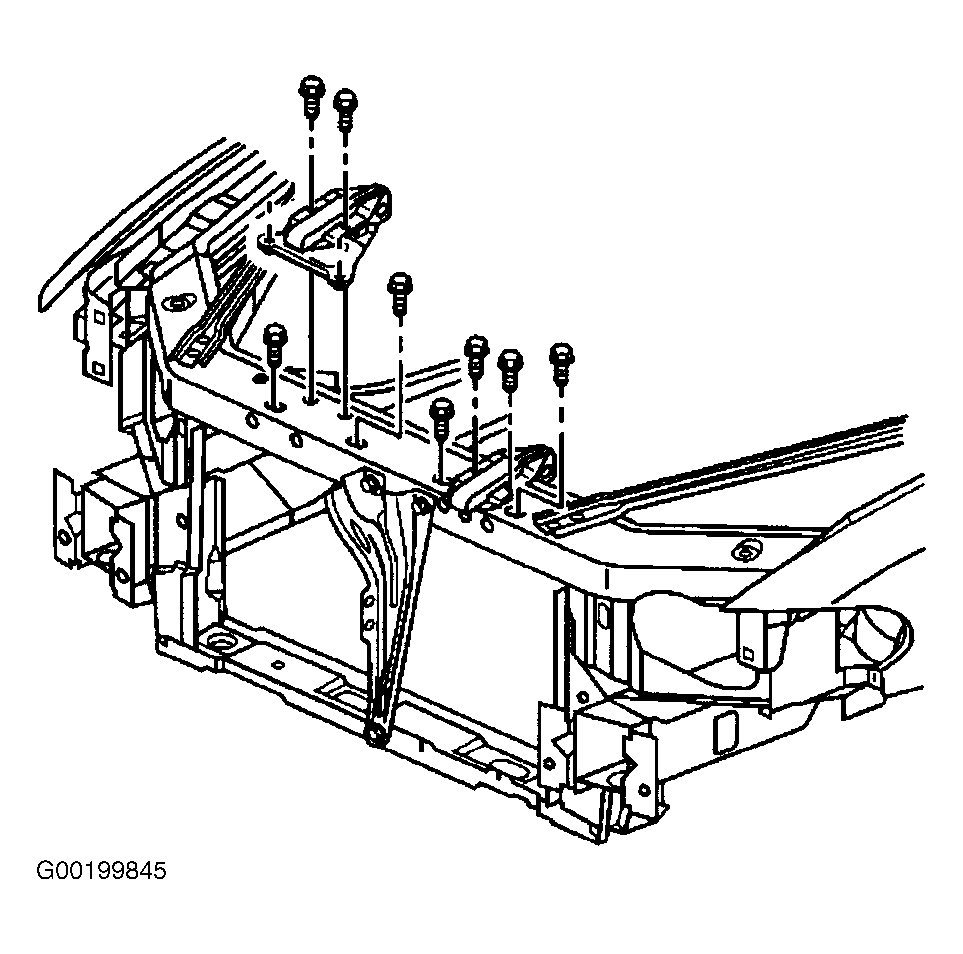

  2. Install the 4 bolts through the engine mount strut bracket to the upper radiator support. See Figure . Tighten the engine mount strut bracket bolts to specification. See TORQUE SPECIFICATIONS  .
  3. Install the engine mount strut(s) to the engine mount strut bracket(s) at the upper radiator support. See ENGINE MOUNT STRUT BRACKET  .
