Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the ash tray harness electrical connector to the I/P harness.
  2. Align the accessory trim plate to the I/P.
  3. Install the tabs into the I/P openings.
  4. Rotate the I/P accessory trim plate forward and press the clips into the retainers until fully seated.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  5. Install the screws to the I/P accessory trim plate. Tighten the screws to 2 N.m (18 lb in).

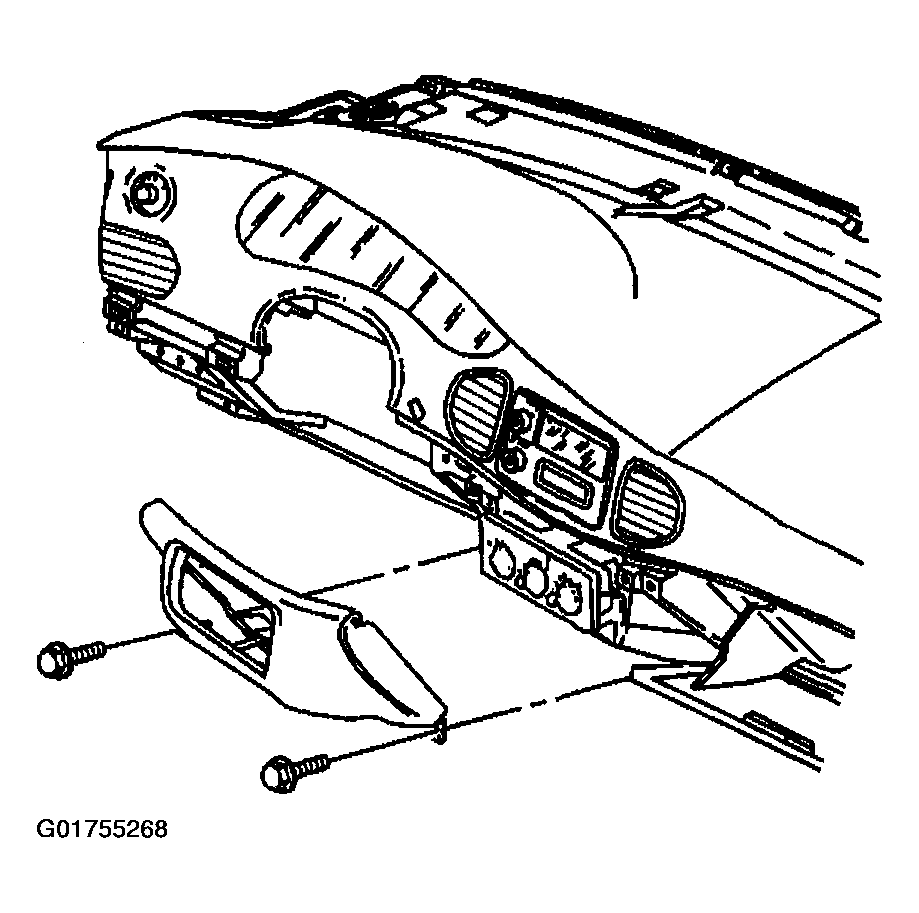

    Fig 1: Identifying I/P Accessory Trim Plate Bottom Screws
    G01755268Courtesy of GENERAL MOTORS CORP.
  6. Install the steering column filler. Refer to Steering Column Filler Replacement .
  7. Install the left I/P insulator. Refer to Closeout/Insulator Panel Replacement - Left .
