Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Starting at the front working back, pull the front floor console trim plate upward in order to release the tabs from the retainers.
  2. Disconnect the electrical connectors from the traction control switch, if equipped. Refer to TRACTION CONTROL SWITCH REPLACEMENT in Anti-lock Brake System.
  3. Remove the front floor console trim plate from the vehicle.

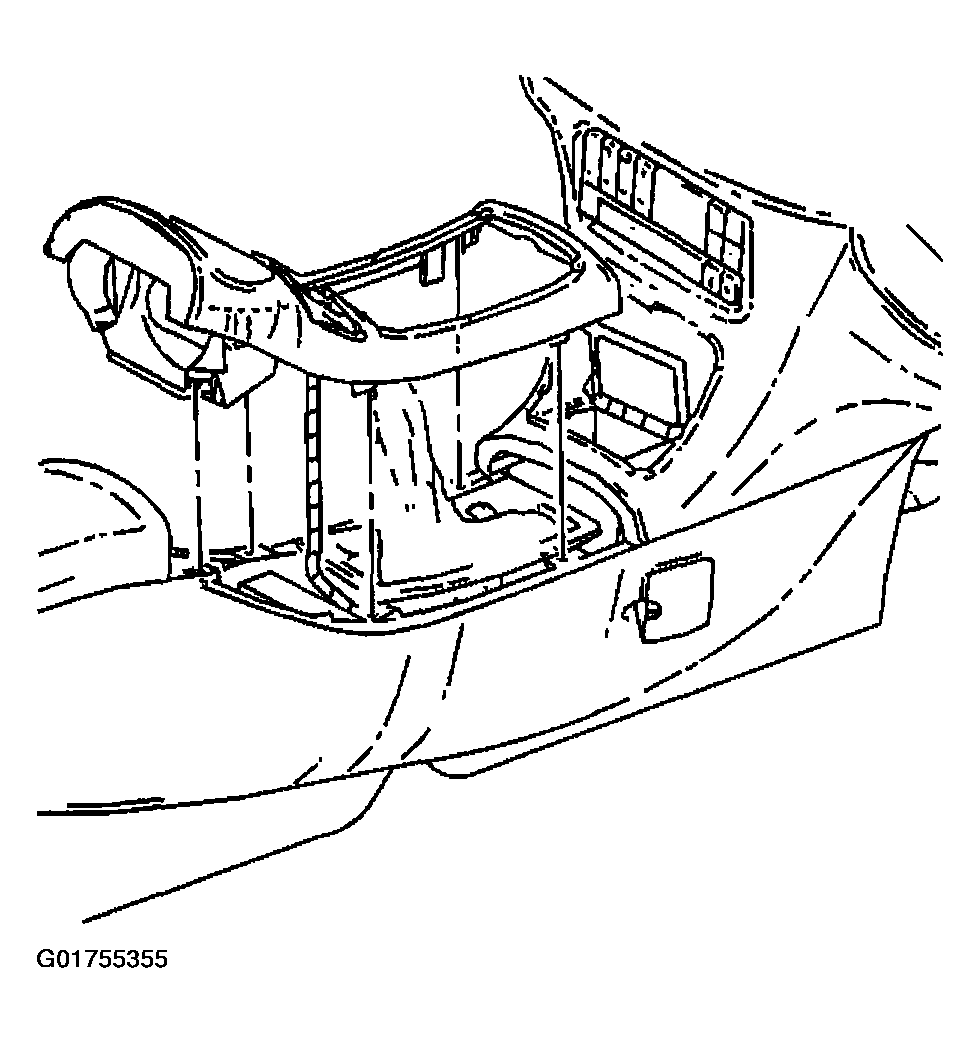

    Fig 1: Identifying Front Floor Console Trim Plate
    G01755355Courtesy of GENERAL MOTORS CORP.
