Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim plate to the I/P.
  2. Install the trim plate by pressing in at each retainer location until seated correctly.
  3. Return the steering column to the original position.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  4. Install the screw to right end of the trim plate. Tighten the screw to 2 N.m (18 lb in).

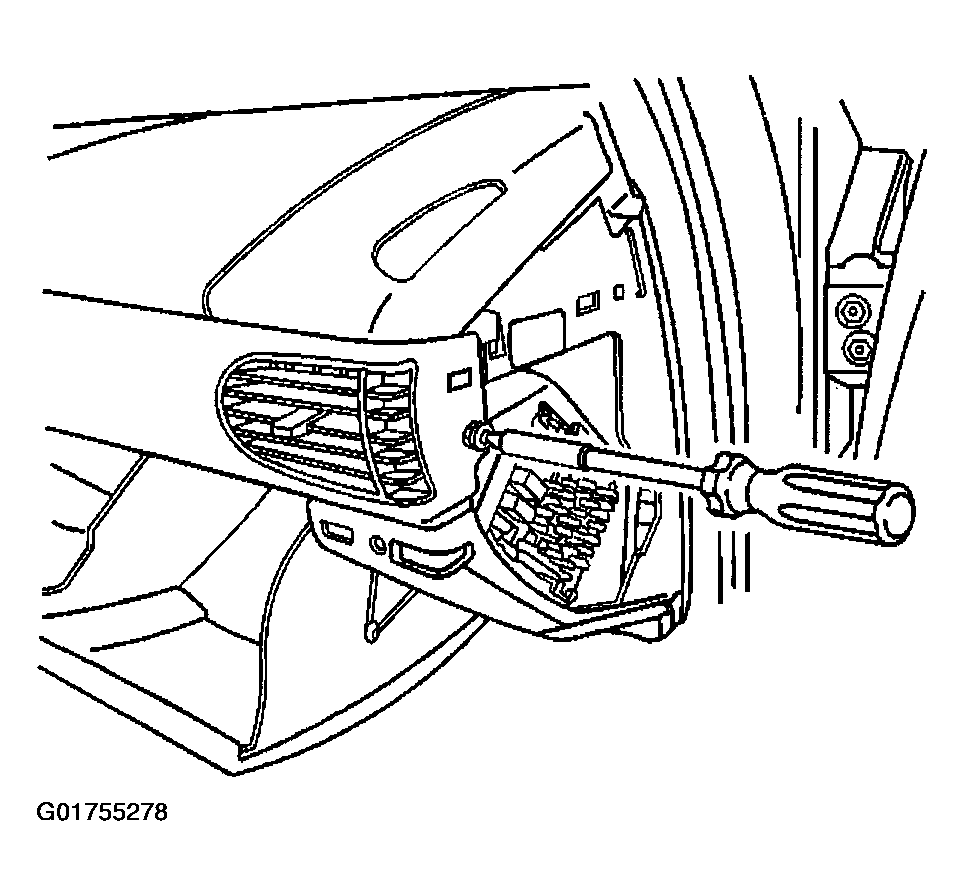

    5. Fig 1: Identifying Right End Of I/P Cluster Trim Plate Screw
    G01755278Courtesy of GENERAL MOTORS CORP.
  5. Install the filler panel to the lower section of the I/P. Refer to Filler Panel Replacement - Outer - I/P Lower Trim .
  6. Close the I/P compartment.
  7. Install the outer trim covers by pressing each cover into place until seated correctly.

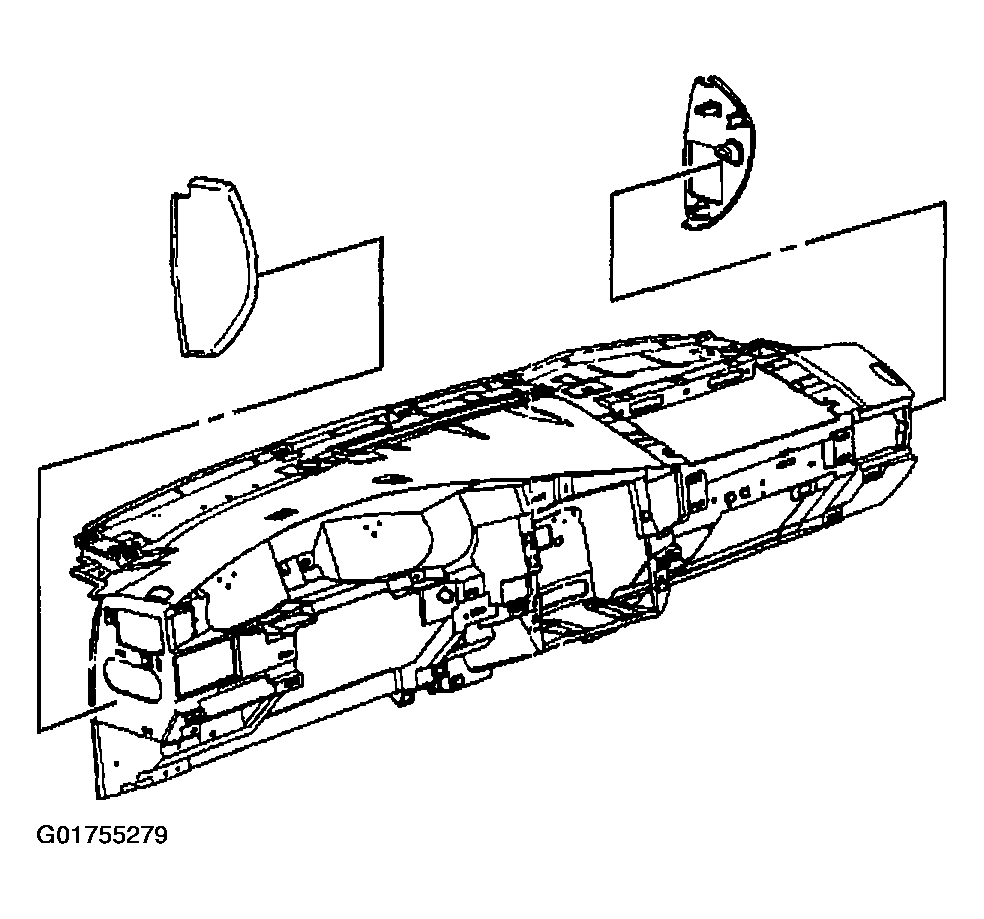

    8. Fig 2: Identifying Instrument Panel (I/P) Outer Trim Covers
    G01755279Courtesy of GENERAL MOTORS CORP.
  8. If equipped with column shift, adjust the shift lever to PARK.
  9. Install the front floor console, if equipped. Refer to Console Replacement - Front Floor (D06)  or Console Replacement - Front Floor (D55)  .
  10. Install the accessory trim plate, if not equipped with a front floor console. Refer to Trim Plate Replacement - I/P Accessory .
  11. Install the steering column filler panel. Refer to Steering Column Filler Replacement .
  12. Release the park brake.
