Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel (I/P) insulator. Refer to Closeout/Insulator Panel Replacement - Left .
  2. Remove the steering column opening filler. Refer to Steering Column Filler Replacement .
  3. Remove the bolts from the knee bolster at the I/P.

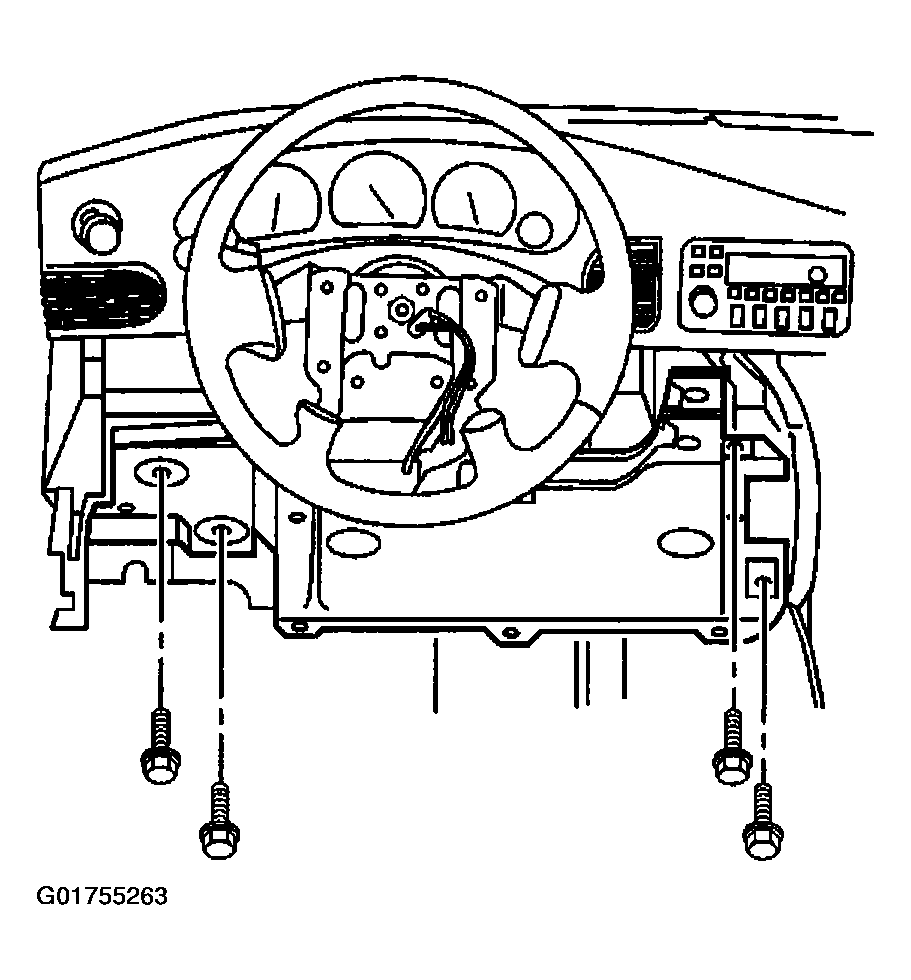

    Fig 1: Identifying Knee Bolster-To-I/P Bolts
    G01755263Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts which secure the knee bolster to the steering column support.

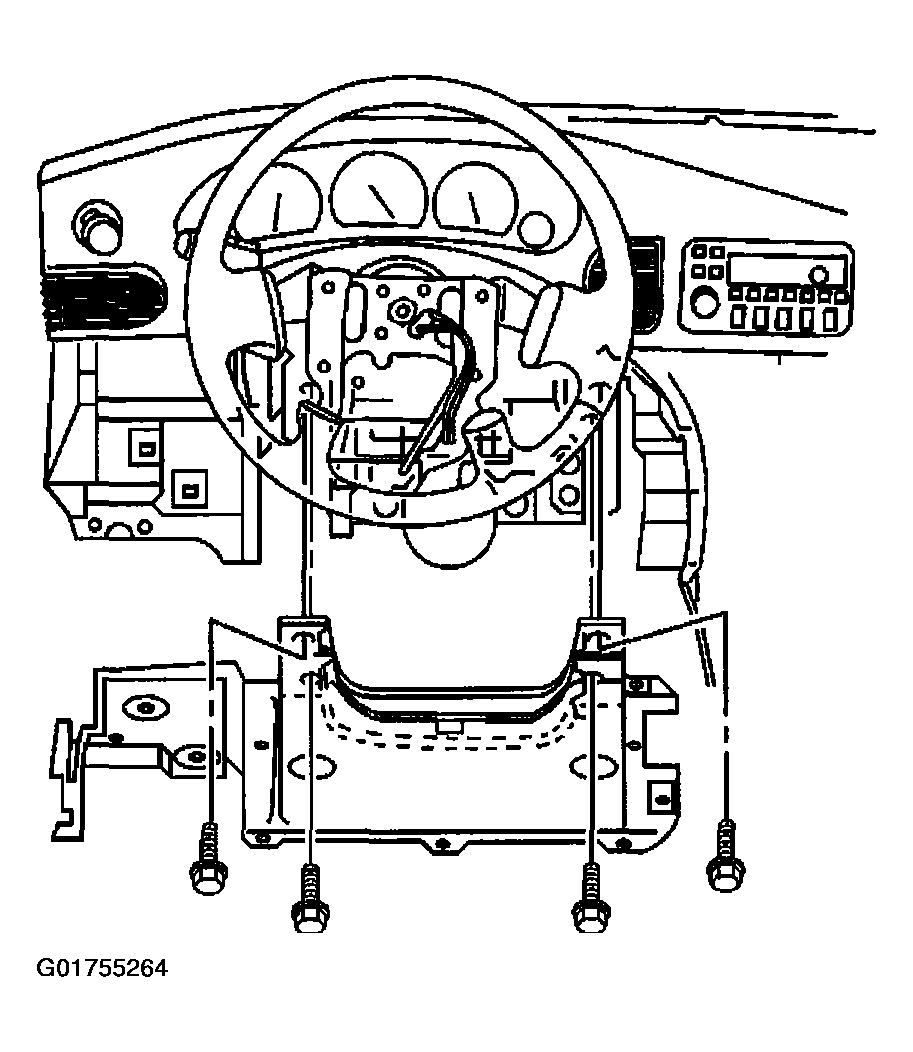

    Fig 2: Identifying Knee Bolster-To-Steering Column Support Bolts
    G01755264Courtesy of GENERAL MOTORS CORP.
  5. Remove the knee bolster from the I/P.
