Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel cluster. Refer to Instrument Panel Cluster (IPC) Replacement .
  2. Disconnect the required lamp from the cluster turning counterclockwise.

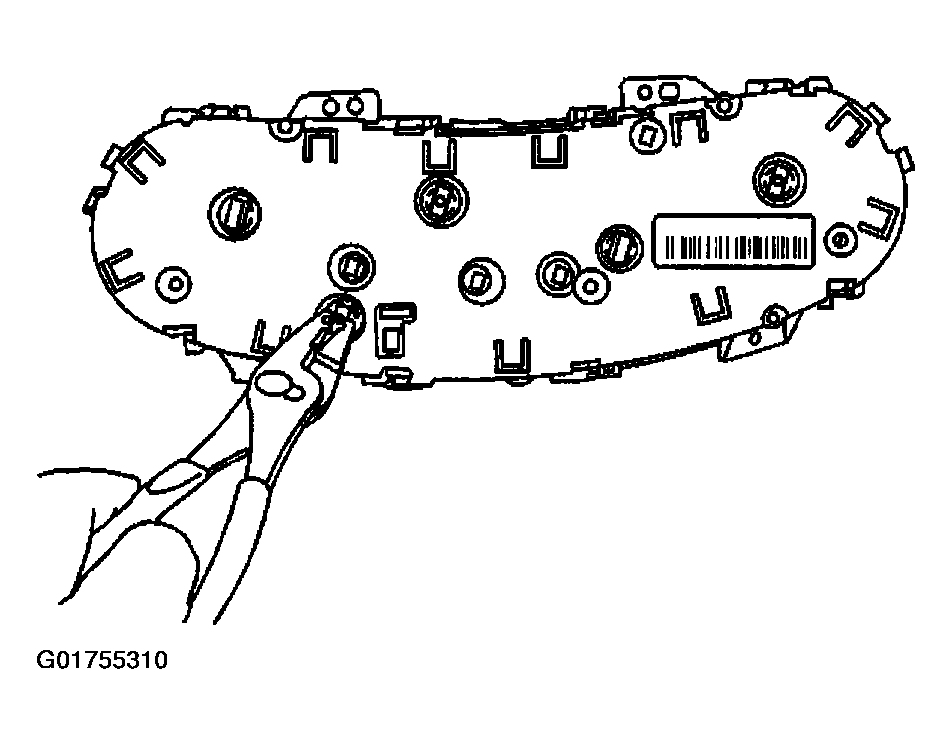

    Fig 1: Disconnecting Instrument Cluster Lamp From IPC
    G01755310Courtesy of GENERAL MOTORS CORP.
  3. Remove the lamp from the cluster

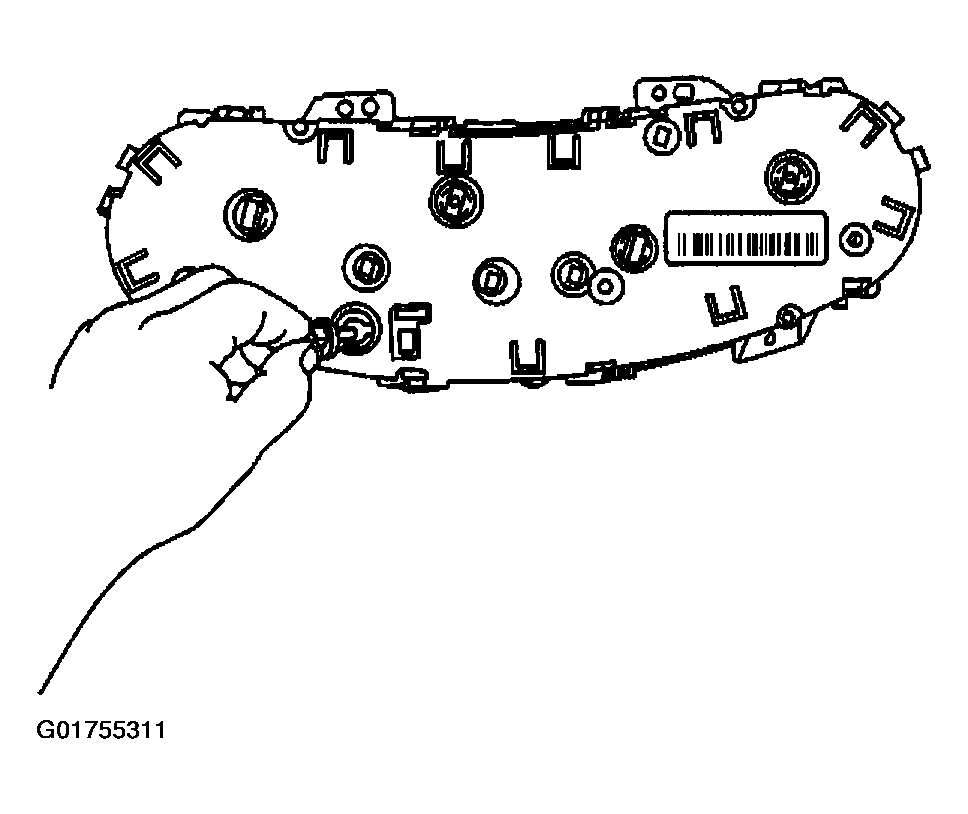

    Fig 2: Removing Instrument Cluster Lamp
    G01755311Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the lamp socket, by pulling out.
    Fig 3: Removing Instrument Cluster Bulb From Lamp Socket
    G01755312Courtesy of GENERAL MOTORS CORP.
