Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the instrument panel (I/P) compartment door.
  2. Remove the filler panel bolt.

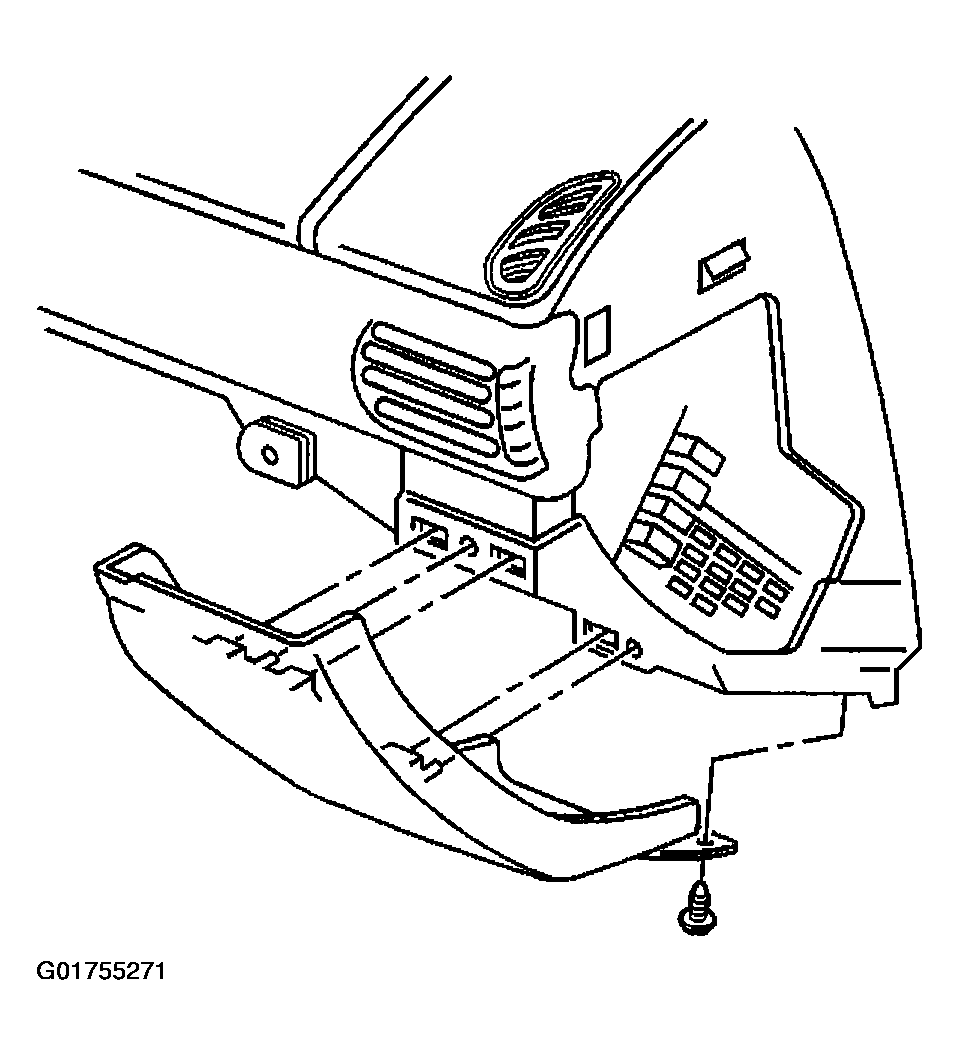

    Fig 1: Identifying Filler Panel Bolt
    G01755271Courtesy of GENERAL MOTORS CORP.
  3. Starting at the top of the filler panel, pull rearward to release the top retainer.

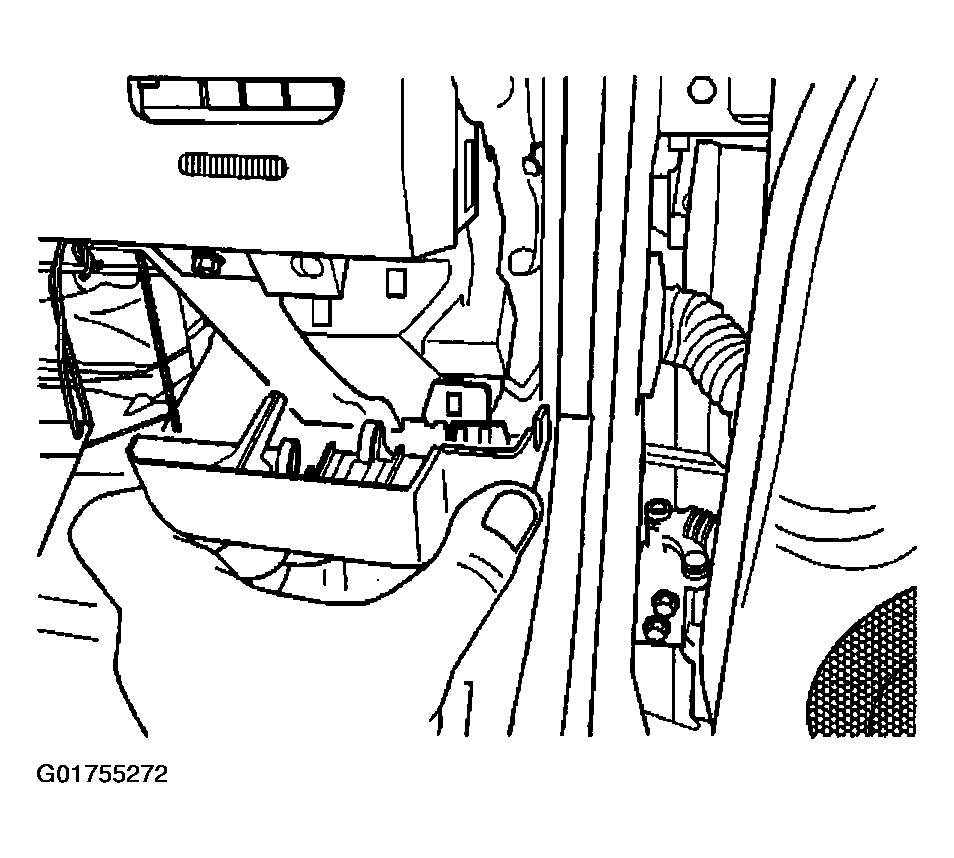

    4. Fig 2: Removing Filler Panel
    G01755272Courtesy of GENERAL MOTORS CORP.
  4. Pull the center of the filler panel rearward to release the middle retainer.
  5. Pull the bottom of the filler panel straight out to release the final retainer.
  6. Remove the filler panel.
