Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Install the front floor console armrest to the hinge at the front floor console.

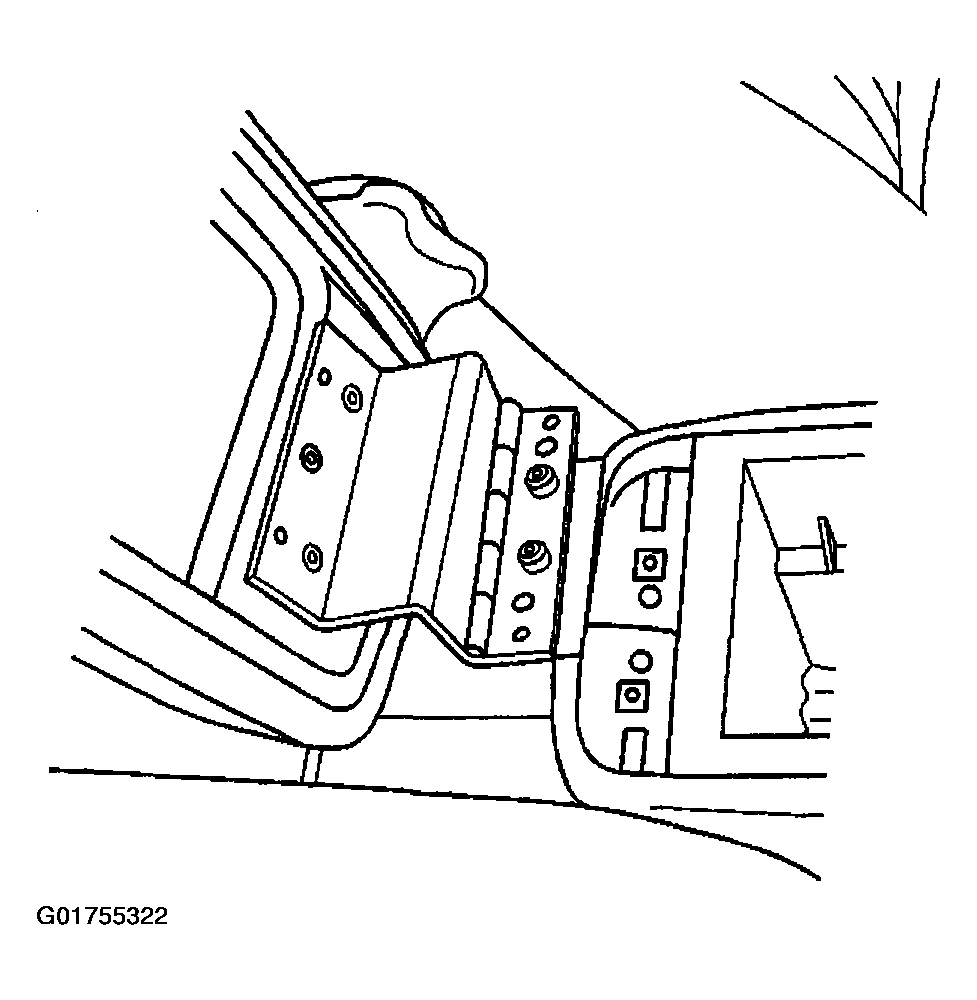

Fig 1: Identifying Front Floor Console Armrest
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
Install the screws to the front floor console armrest hinge. Tighten the screws to 2 N.m (18 lb in).

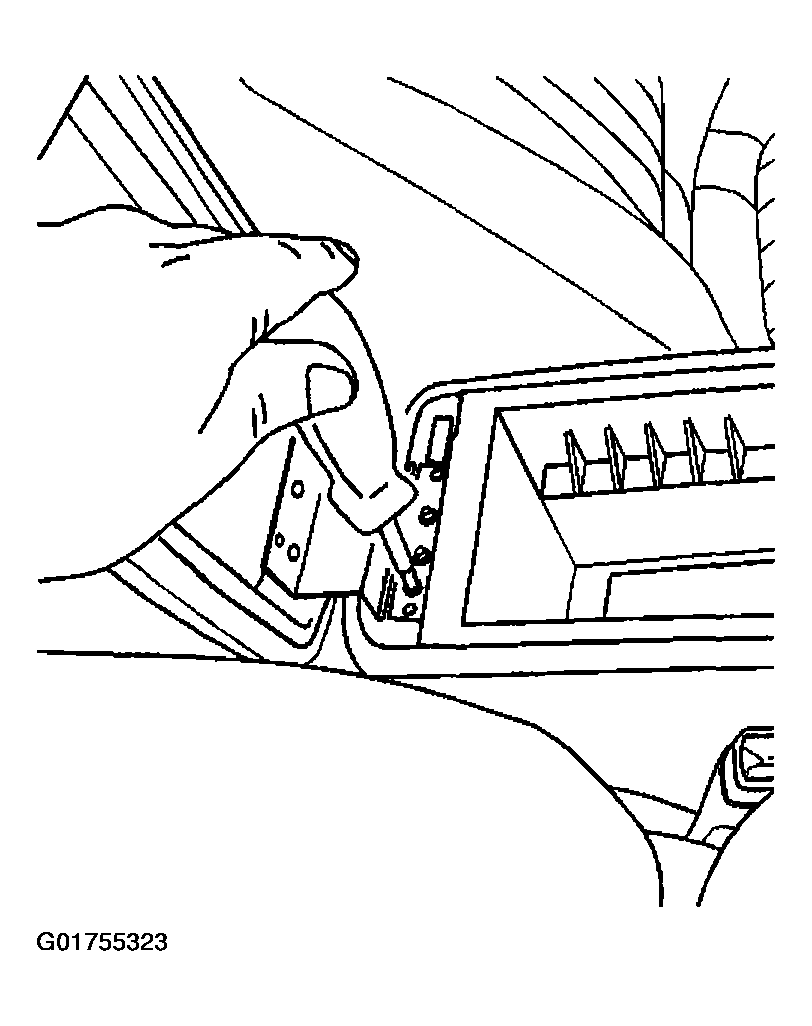

Fig 2: Identifying Front Floor Console Armrest Hinge Screws

Courtesy of GENERAL MOTORS CORP.

Lower the front floor console armrest.
