Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the floor console trim plate. Refer to Trim Plate Replacement - Console Front .
  2. Remove the floor console rear compartment mat.
  3. Remove the floor console rear compartment bolts.

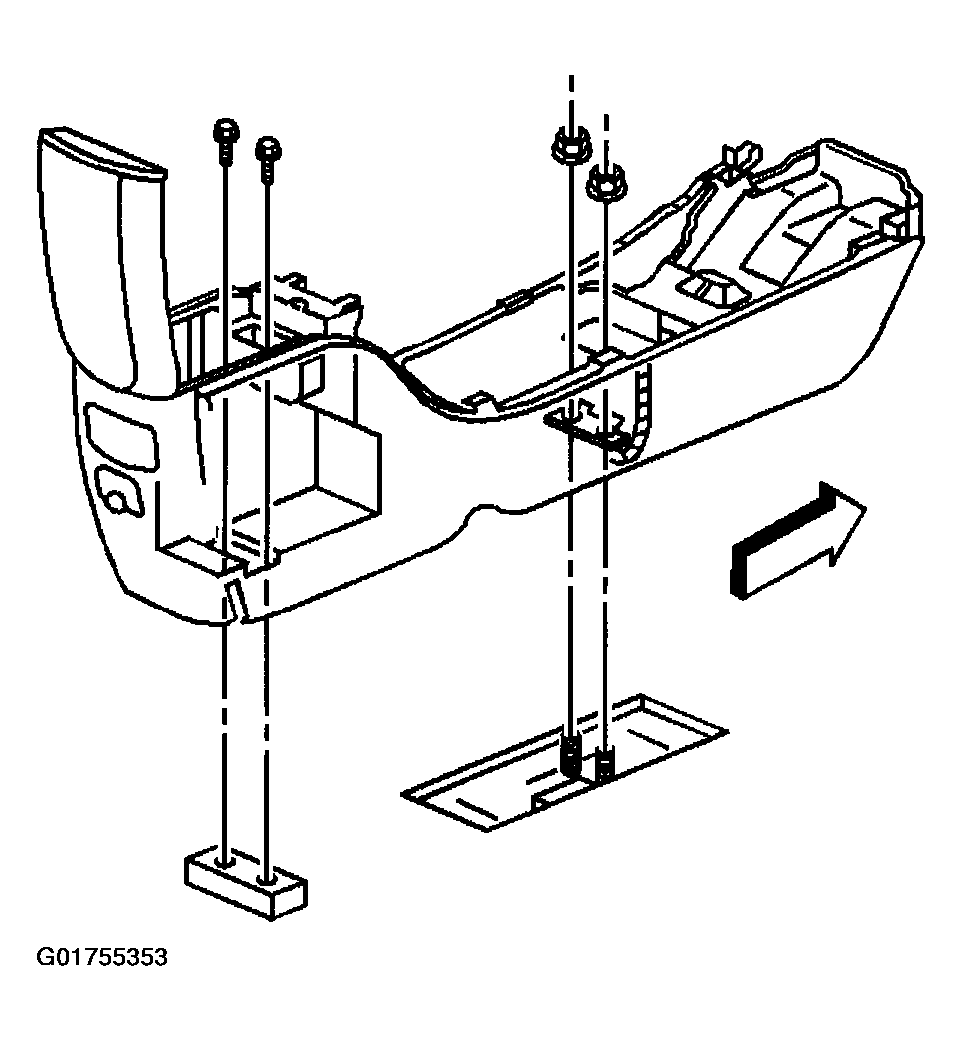

    4. Fig 1: Identifying Floor Console Rear Compartment Bolts & Nuts
    G01755353Courtesy of GENERAL MOTORS CORP.
  4. Remove the floor console nuts.
  5. Remove the horizontal bolts near the Instrument Panel (I/P).
  6. Remove the floor console power accessory port. Refer to Power Accessory Port Replace - Front Floor Console (D55)  or Power Accessory Port Replace - Front Floor Console (D06)  .
  7. Disconnect the wiring harness from the floor console.
  8. Pull the floor console rearward in order to release the retainers from the I/P.
  9. Remove the floor console.
