Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Apply the parking brake.
Position the transaxle shift lever to the LOW position.
Remove the floor console trim plate. Refer to Trim Plate Replacement - Console Front .
Remove the floor console rear compartment mat.

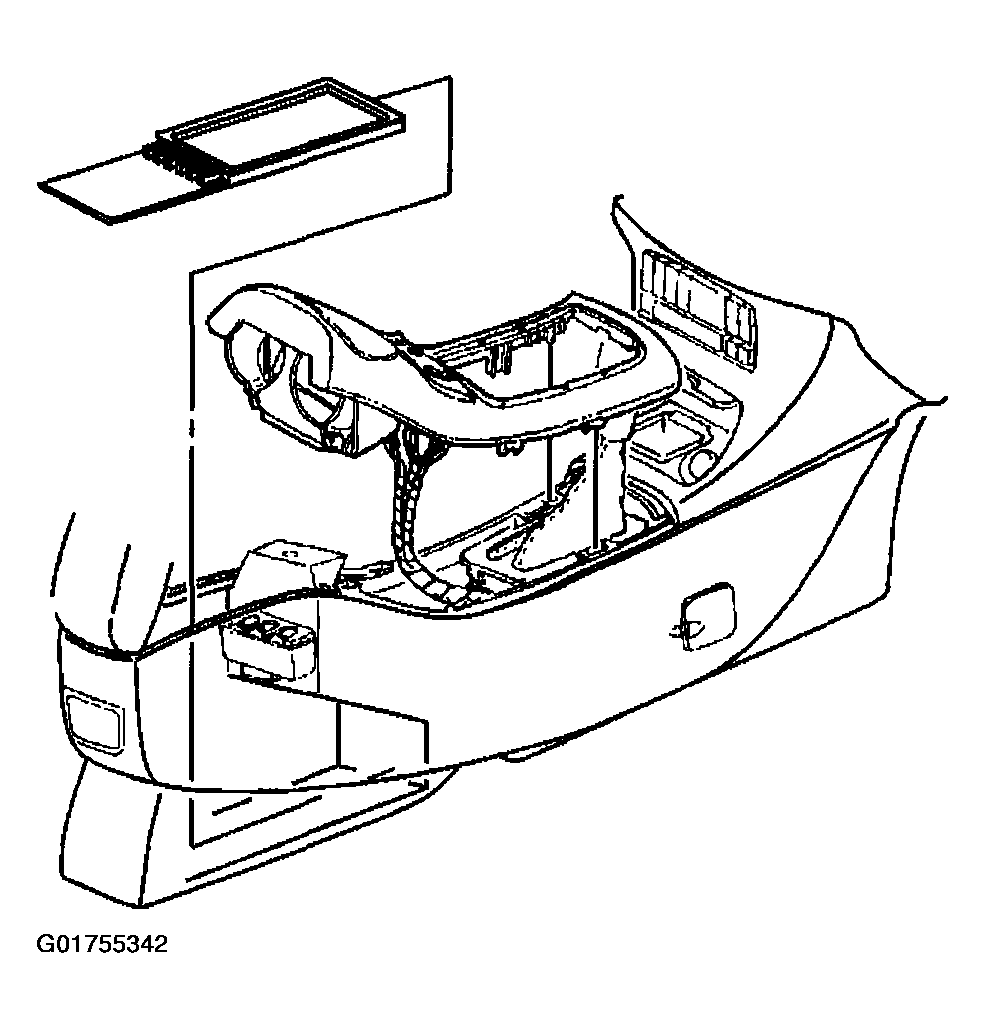

Fig 1: Identifying Floor Console Rear Compartment Mat
Courtesy of GENERAL MOTORS CORP.
Remove the floor console rear compartment bolts.

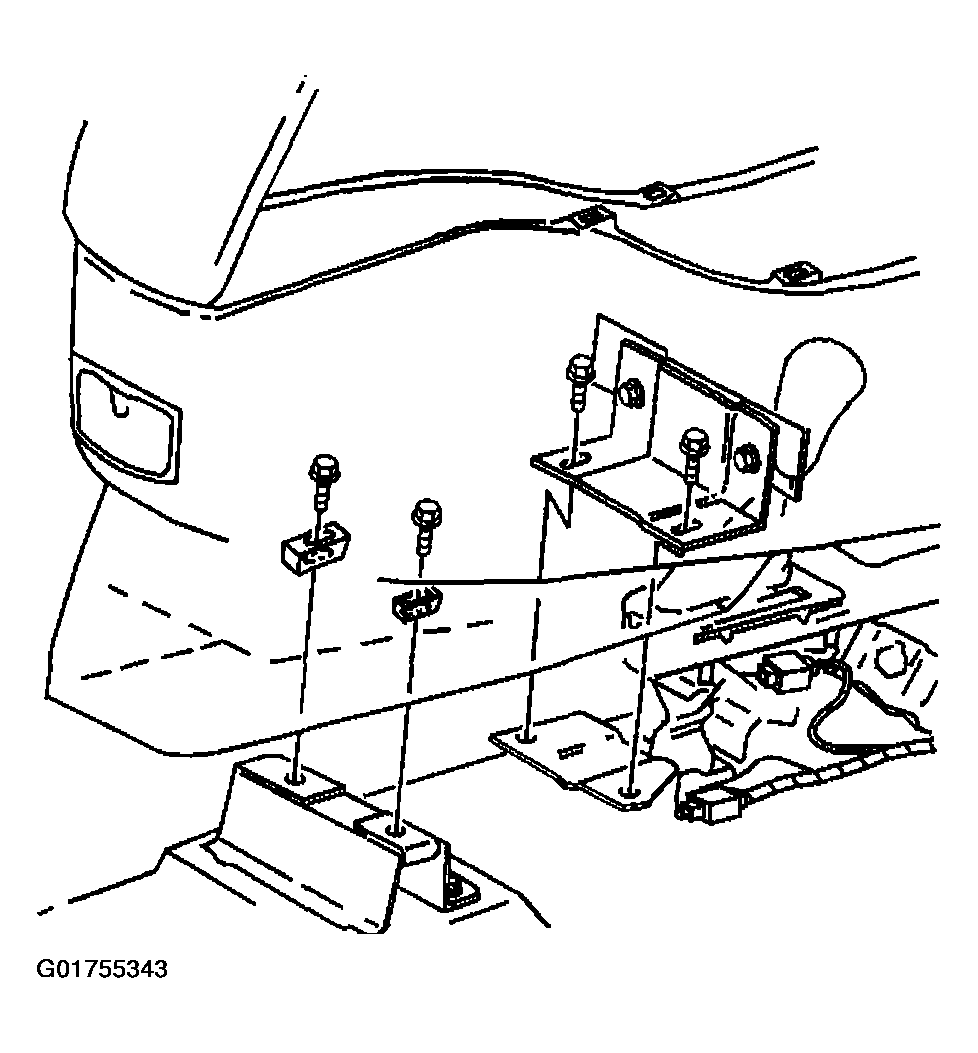

Fig 2: Identifying Floor Console Rear Compartment & Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the floor console bracket bolts rearward of the transaxle shift lever.
Remove the floor console horizontal bolts near the instrument panel (I/P).

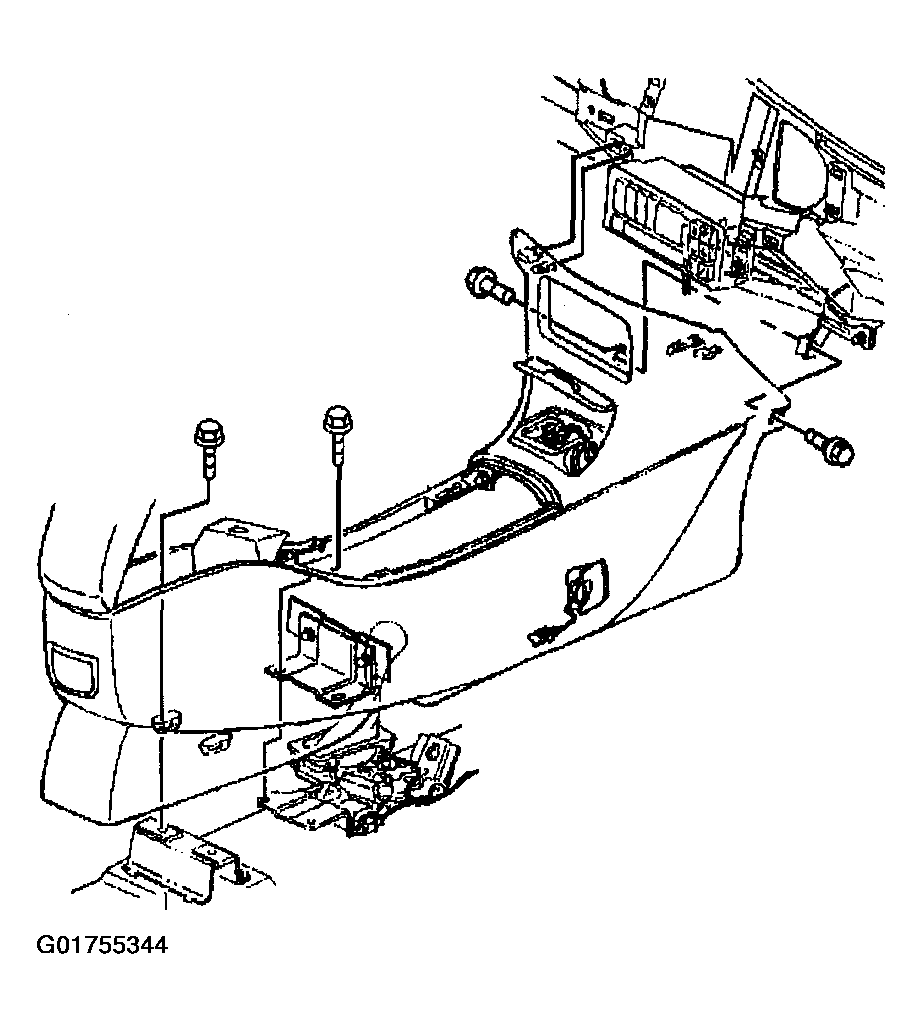

Fig 3: Identifying Floor Console Horizontal Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the floor console power accessory port. Refer to Power Accessory Port Replace - Front Floor Console (D55) or Power Accessory Port Replace - Front Floor Console (D06) .
Remove the floor console lighter. Refer to Cigar Lighter Replacement - Console .
Disconnect the wiring harness from the floor console.

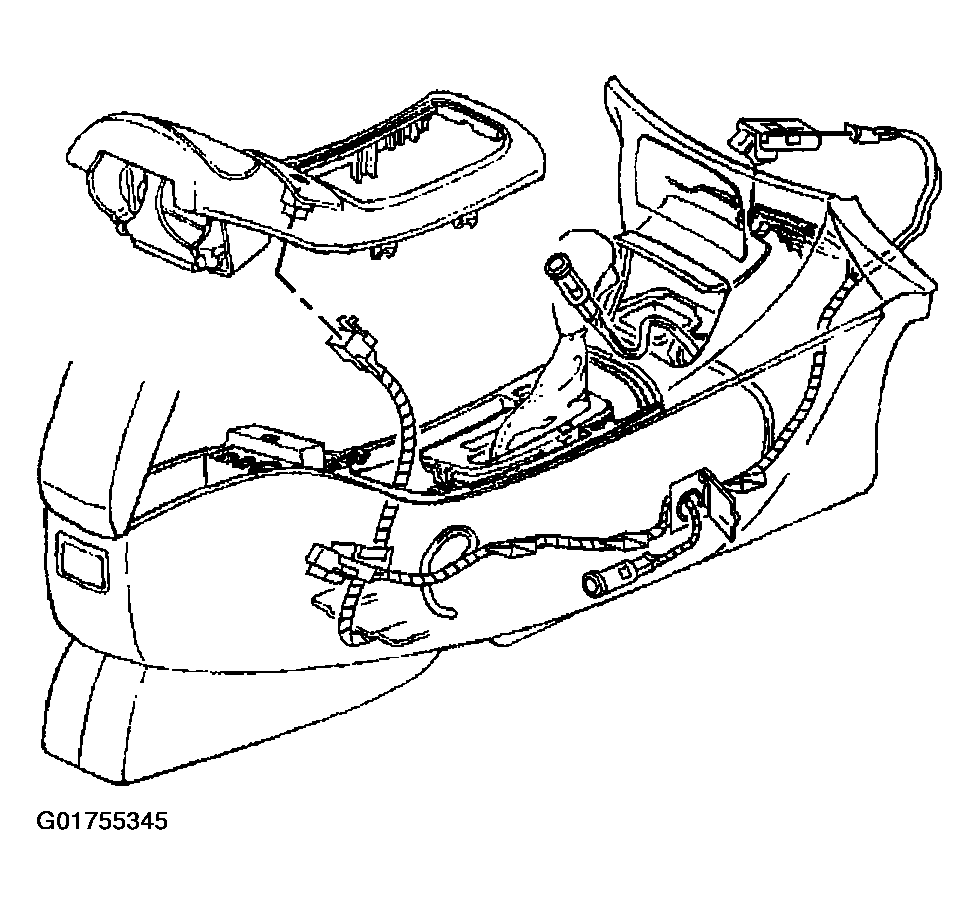

Fig 4: Identifying Floor Console Wiring Harness
Courtesy of GENERAL MOTORS CORP.
Pull the floor console rearward in order to release the retainers from the I/P.

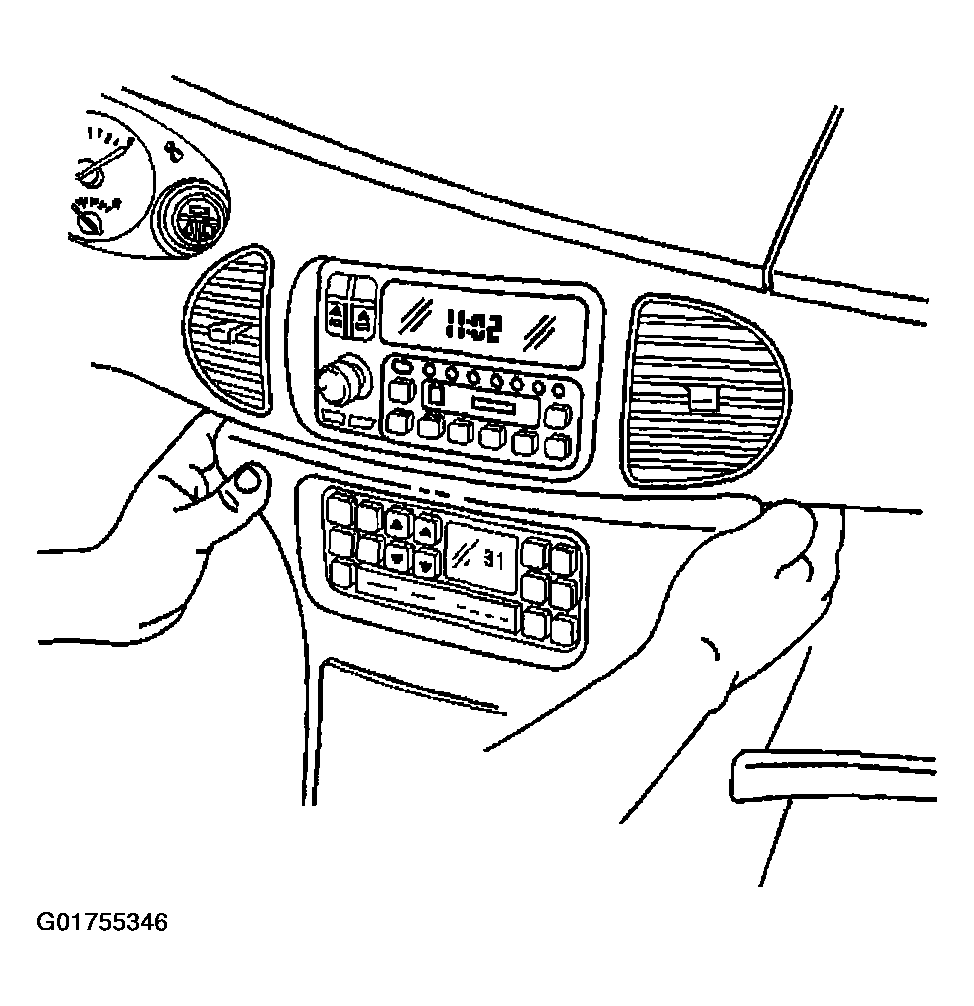

Fig 5: Disconnecting Floor Console From I/P Retainers
Courtesy of GENERAL MOTORS CORP.
Depress the front edge of the shifter trim plate in order to pull back the floor console for removal.

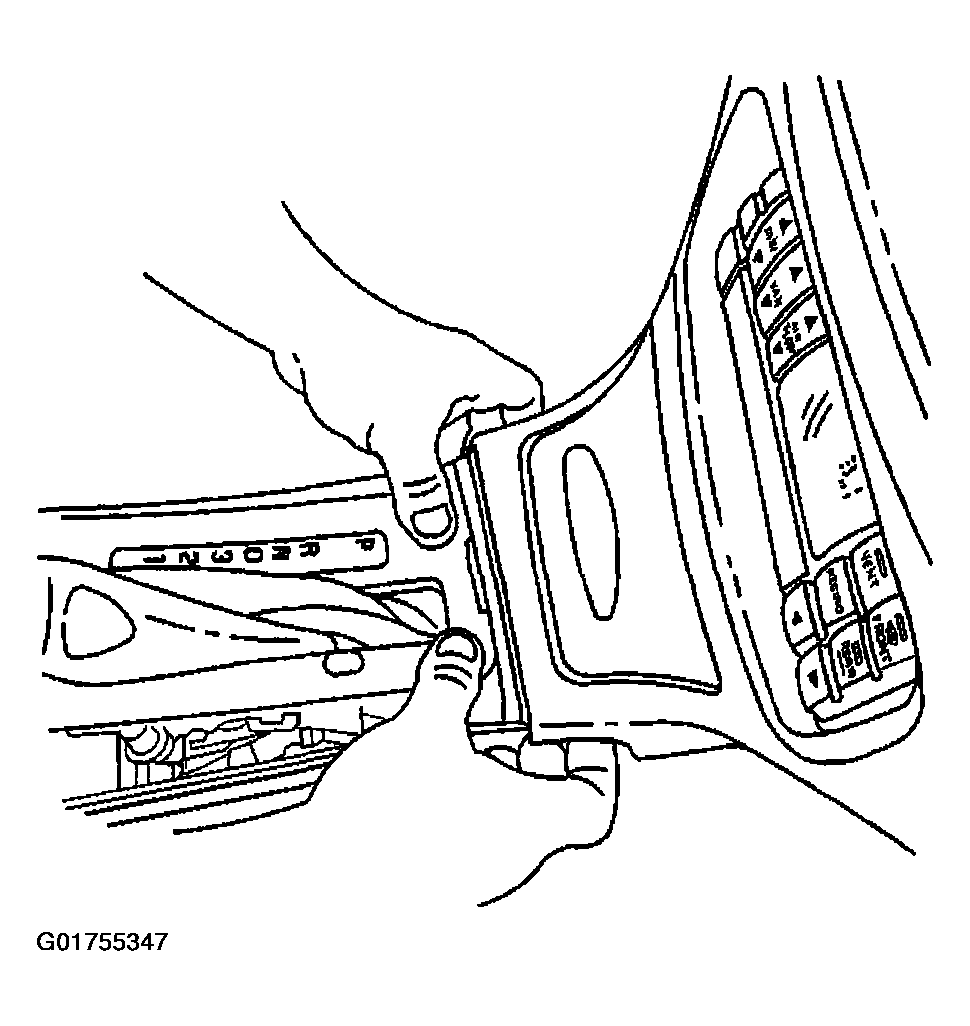

Fig 6: Depressing Front Edge Of Shifter Trim Plate
Courtesy of GENERAL MOTORS CORP.
Remove the floor console from the vehicle.
