Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front floor console. Refer to Console Replacement - Front Floor (D06)  or Console Replacement - Front Floor (D55)  .
  2. Remove the console compartment door screws.
  3. Remove the console compartment screws.

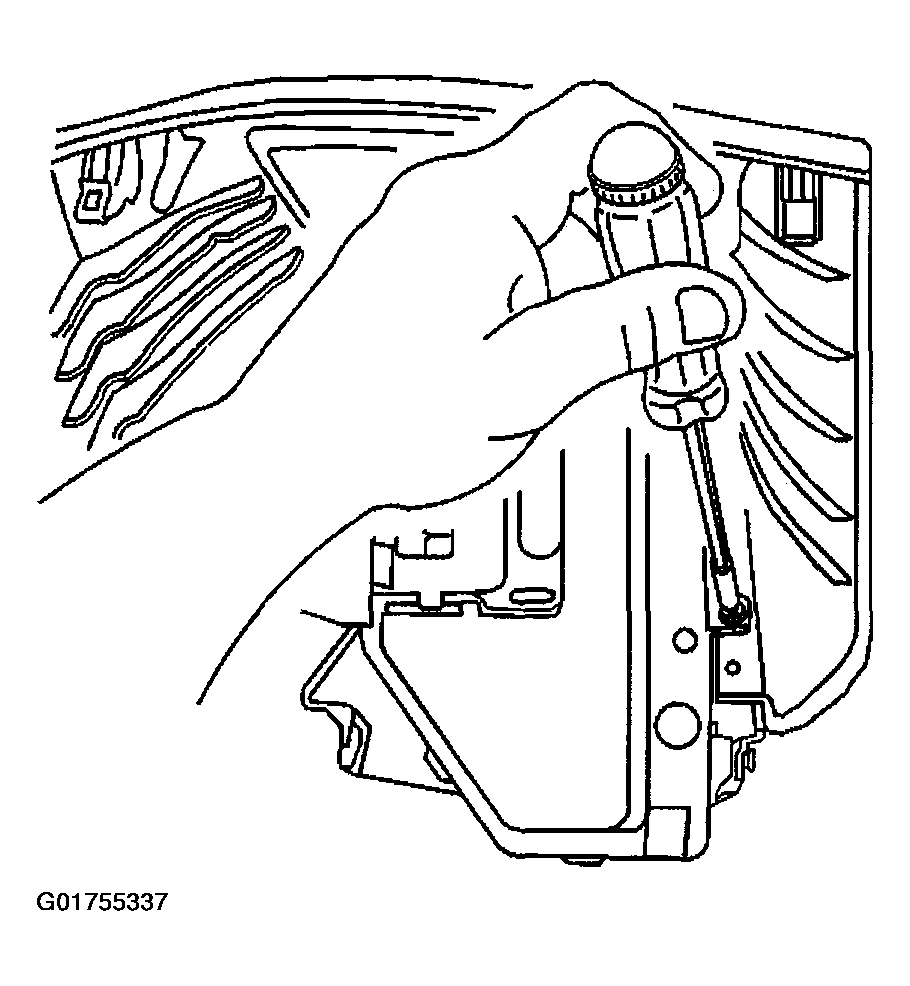

    Fig 1: Identifying Console Compartment Screws
    G01755337Courtesy of GENERAL MOTORS CORP.
  4. Remove the console compartment from the front floor console by pulling out.

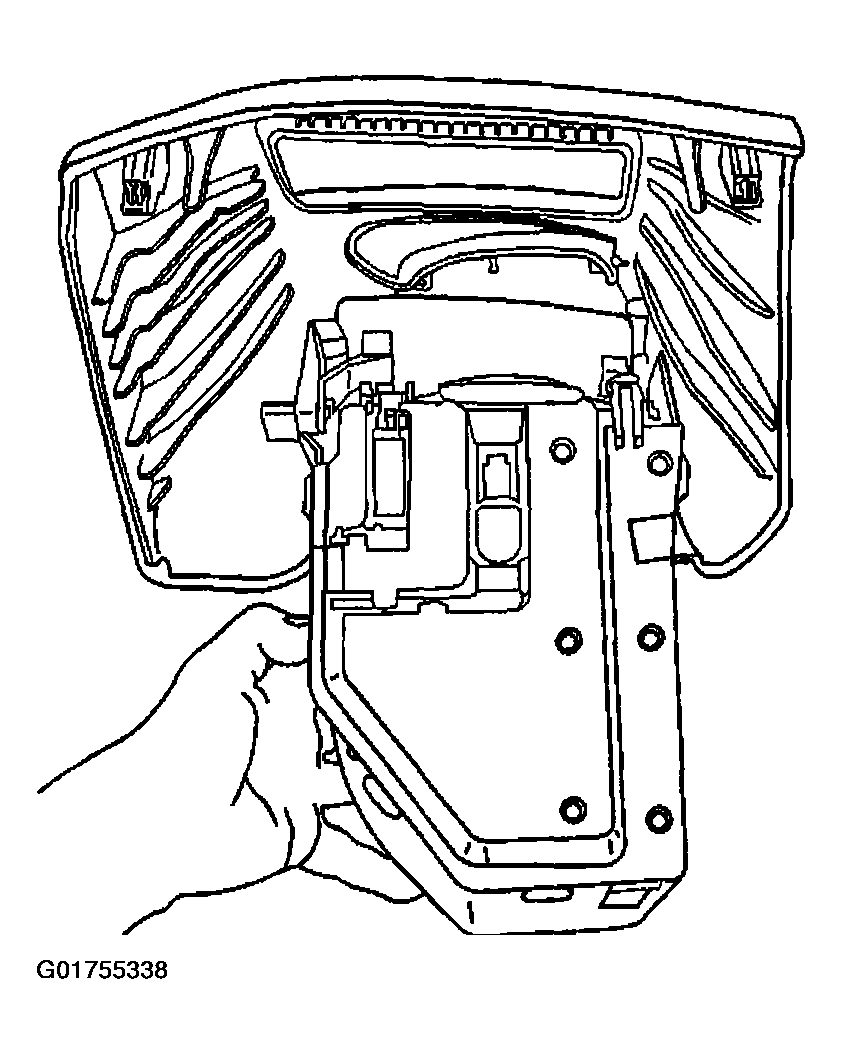

    Fig 2: Removing Console Compartment
    G01755338Courtesy of GENERAL MOTORS CORP.
