Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Position the right I/P insulator to the floorpan beneath the I/P.
Install the courtesy lamp to the I/P insulator. Rotate the lamp 1/4 turn clockwise to secure the lamp.

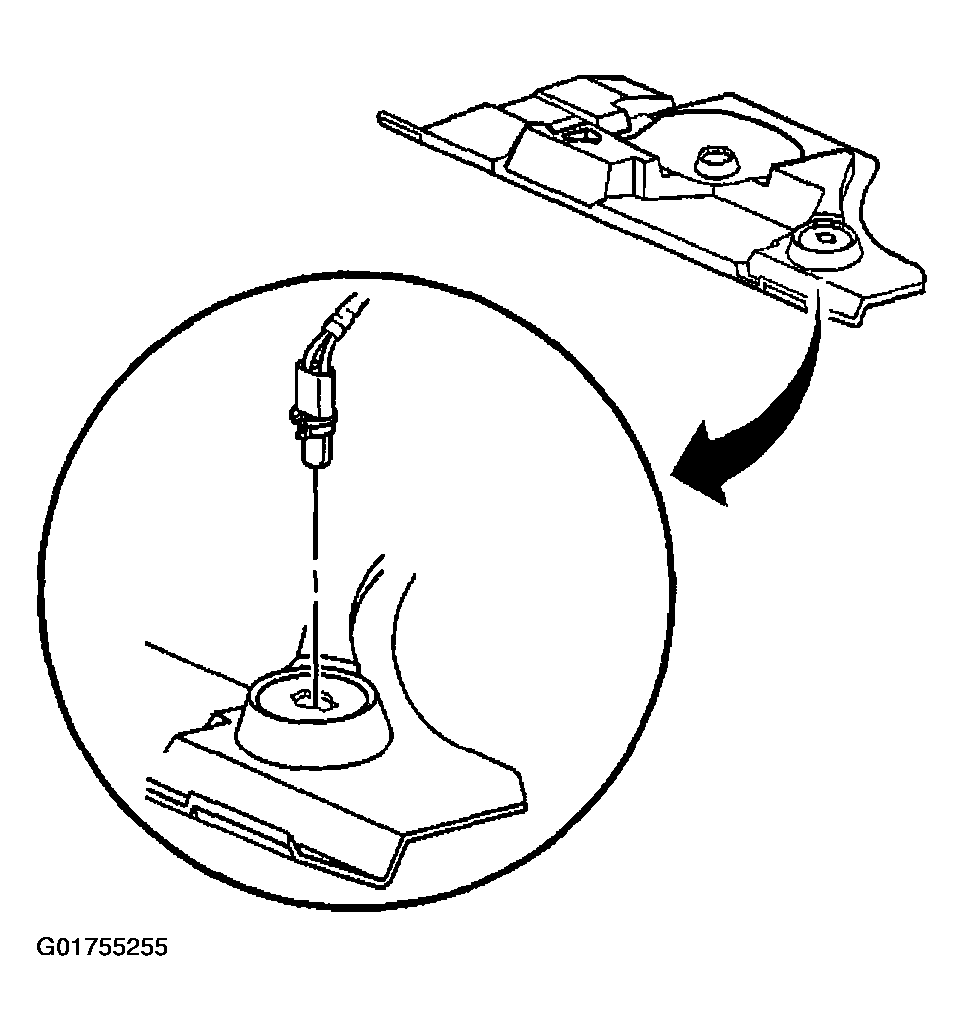

Fig 1: Identifying Right I/P Insulator Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

Important: Ensure that the right I/P insulator does not block the floor heater outlet.
Install the right I/P insulator retainers.
Return the carpet to the original position.

Fig 2: Identifying Right I/P Insulator & Retainers
Courtesy of GENERAL MOTORS CORP.
