Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

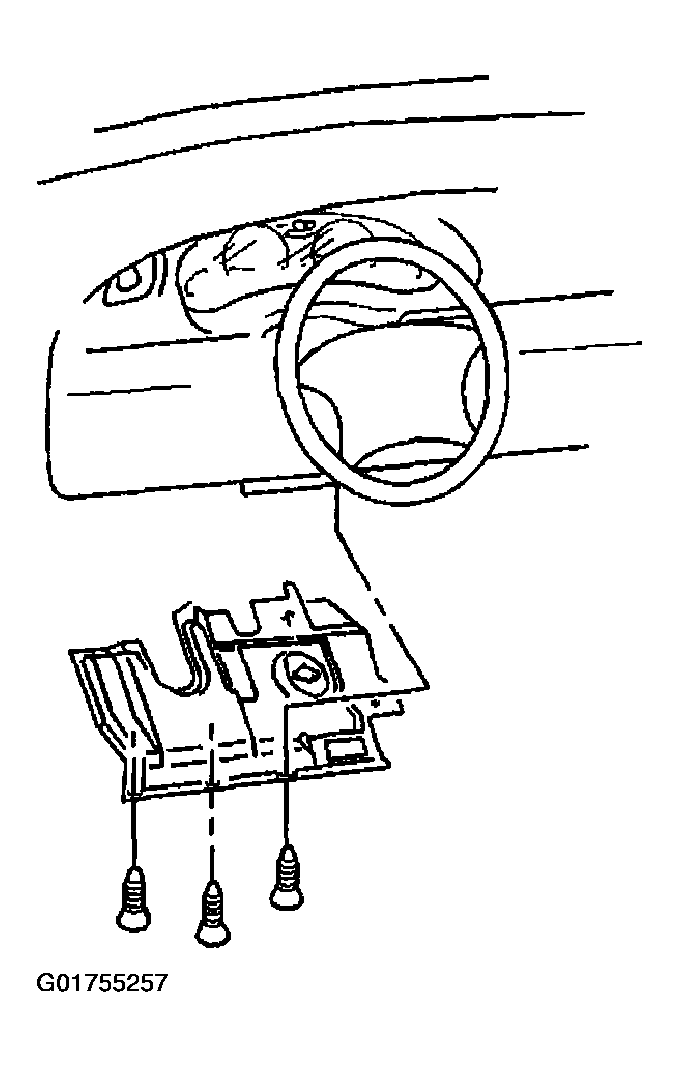

Use J 38778 in order remove the left instrument panel (I/P) insulator retainers from the filler panel on the steering column opening.

Fig 1: Identifying Steering Column Opening Filler Panel-To-Left I/P Insulator Retainers
Courtesy of GENERAL MOTORS CORP.

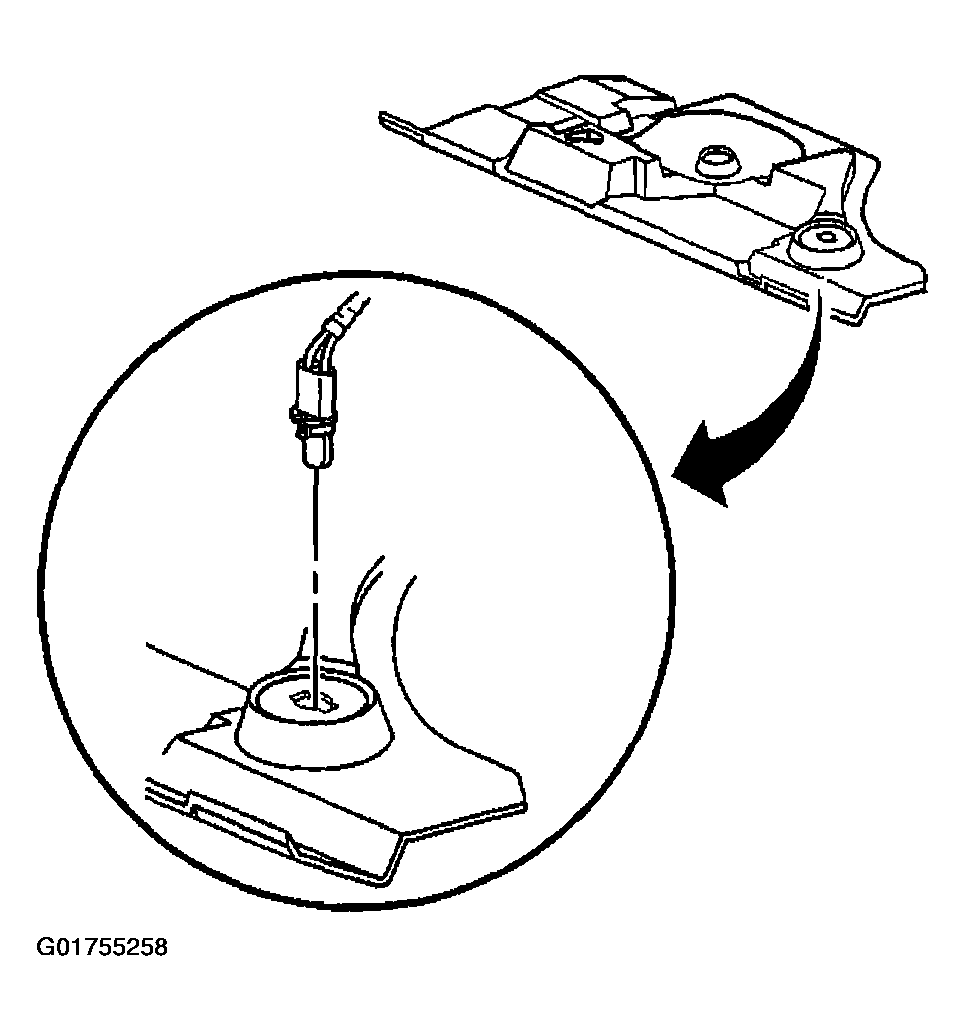

Disconnect the courtesy lamp from the I/P insulator by turning the lamp 1/4 turn counterclockwise.

Fig 2: Identifying Left I/P Insulator Courtesy Lamp
Courtesy of GENERAL MOTORS CORP.

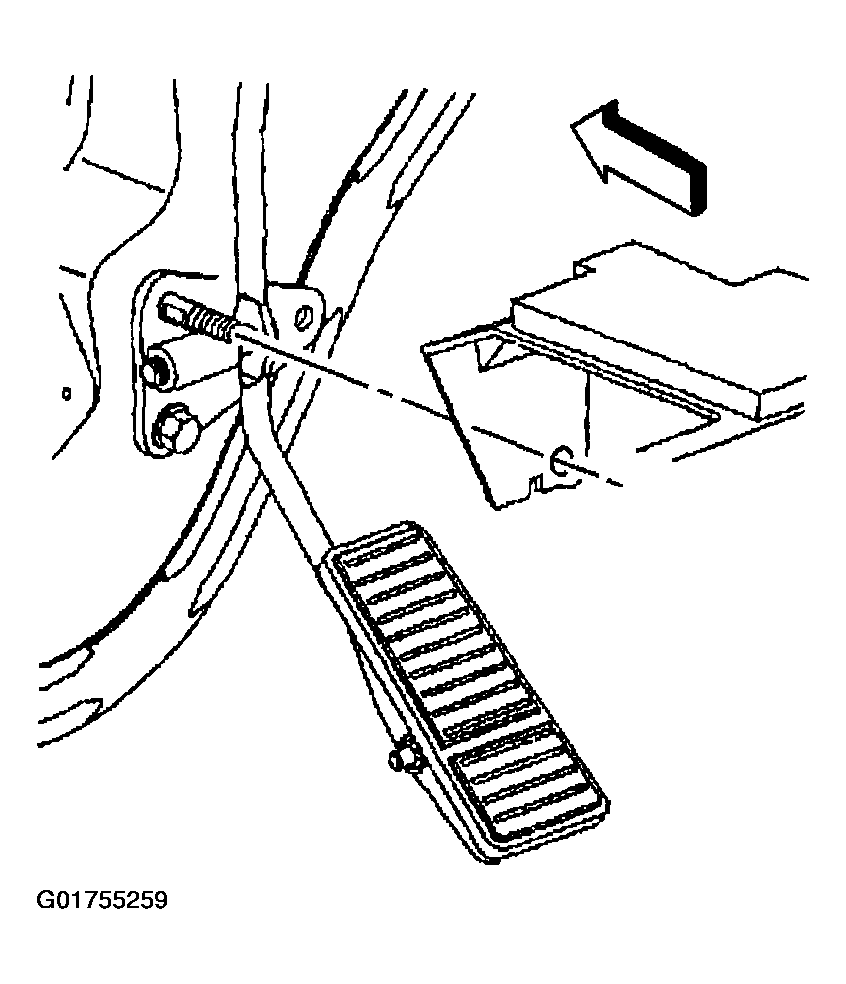

Remove the left I/P insulator from the stud at the accelerator pedal.
Remove the left I/P insulator.

Fig 3: Identifying Left I/P Insulator
Courtesy of GENERAL MOTORS CORP.
